32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator

Get high-quality 32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator from our factory. Delivering exceptional performance and reliability.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Detailed Photos
  • Specification
  • Company Profile
  • Certifications
  • Exhibition
  • FAQ
Overview

Basic Info.

Model NO.
SKD2965
Product Name
Digital Modulator
Support Standard
ISDB-T, DVB-T
Encoding Format
H.264
Output Level
>105dBuV
RF Range
50~1000MHz by a Step 1MHz
Transport Package
Carton
Specification
53*30*24.5cm
Trademark
Souka/Support OEM
Origin
China
HS Code
8529901011
Production Capacity
1000

Product Description

Detailed Photos

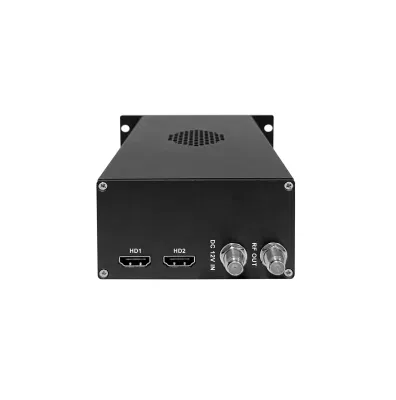

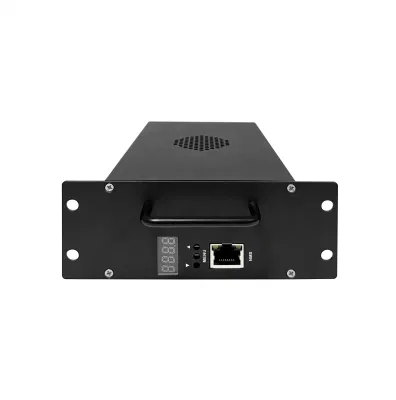

32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator32 Channels ISDB-T DVB-T Modulation HD Digital Encoder ModulatorDual HD Input Modulator With ISDB-T and DVB-T Modulation
FEATURES:

1. Support HD inputs up to 1080P and output a stable quality image

2. Support remote key ID insertion

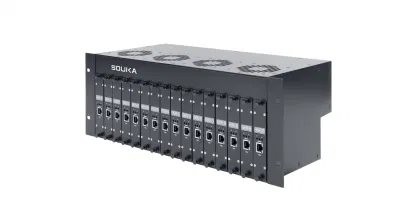

3. Support SKD-M29 combiner chassis integrated into the 16 IN 1 headend system

4. Operated and control via NMS

5. Simple step-by-step configuration by front panel buttons



Specification

ENCODING
Input Connector HDMI 1.4
VIDEO Encoding H.264
Input Resolution 1920*1080_60P; 1920*1080_50P; 1920*1080_60i;
1920*1080_50i; 1280*720_60P; 1280*720_50P
Bitrate 2 ~ 18 Mbps
AUDIO Encoding MPEG 1 Layer II, AAC
Sample Rate 32K/ 44.1K/ 48KHz
Bitrate 384kbps
MODULATION
DVB-T Standard DVB-T COFDM
Bandwidth 6 /7 /8 M
Constellation QPSK, 16QAM, 64QAM
MER ≥ 32 dB
Transmission Mode 2K, 4K, 8K
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
ISDB-T Standard ISDB-T
Bandwidth 6 M
Constellation 4QAM, 16QAM, 64QAM
MER ≥ 36 dB
Transmission Mode 2K, 4K, 8K
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
OUTPUT
RF Output Level ≥ 30dBmV
Output Frequency Range 50 ~ 999.999MHz
Out-band Rejection ≥ 60dB
SYSTEM
Management Control Keys; NMS; APP LCN Insertion YES
Language English Upgrade NMS
GENERAL
Power Supply DC12V 2A Power Consumption < 10W
Net Weight 0.36 KG Dimension 136*165*25 (mm)

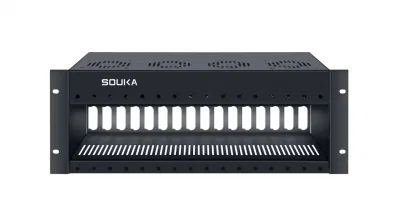

 NOTICE: The SKD296X is strongly recommended to be installed in the chassis SKD-M29

Company Profile

    Dingshengwei Electronics Co.,Ltd (DSW) is dedicated to design, manufacture and sales of CATV analog,digital and IPTV modulator with our brand name SOUKA.
DSW obtained ISO9001:2008 certificate authorized by CQC. We have 100 in-house skillful workers, which ensures the punctual delivery date.

    And a professional engineer team made up of 10 senior RF engineers and 6 IT engineers to fulfil precise management over all projects honored by our customers.

As one of the most reliable suppliers in this field, we continually spare no efforts in developing DSW into a world recognized brand with trustworthy and solid reputation. DSW sincerely invites you to enjoy the fascinating experience of modern technology and excellent customer service provided for you by our professional staff.

At the forefront of technological trends and developments, DSW is with you each step of the way. Our products cover in analog modulator, digital modulator and IPTV device at the meanwhile we also can provide your a full soluiton in analog,digital and IPTV system.


    Our mission is making easy and efficient products. Our values are always to be reliable and innovative. We never stop to bring more products.
32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator
32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator

Certifications



Exhibition

32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator32 Channels ISDB-T DVB-T Modulation HD Digital Encoder Modulator

FAQ

Q1: How to get a sample?
Sample order is acceptable. Please contact us and make sure what sample do you need.

Q2: How about the OEM/ODM service?
We provide all kinds of OEM/ODM service,
For example Logo printing on housing, Customized packing, Software Customization. Please contact with us to make sure the detail things before placing order.

Q3: What is your Lead time and method of Shipment?
We are factory, adequate inventory, Generally delivery within 3-5 workdays after payment confirmed, all goods have to go through 100% QC testing and Aging.
But please confirm the exact delivery time with us as different products and different quantities will have different leading times.
Shipping by International express TNT.Fedex,DHL,UPS door to door service, it will take 5-9 workdays to your designated address.

Q4: What's your Payment method supported?
We accept T/T bank transfer, Paypal(Credit Card), Western Union, MoneyGram,etc.

Q5: How about the packing and shipping?
Normally, we have a carton for packaging. If you have any other special requirements, please feel free to contact us.
