Basic Info.
Model NO.
HPA-G50(2110-2170MHz)
Output Power
100W (50dBm)
Gain
50dB
Transport Package
Carton
Specification
210*110*25mm
Trademark
OEM
Origin
Shenzhen, China
HS Code
8543709200
Production Capacity
1000units/Month
Product Description

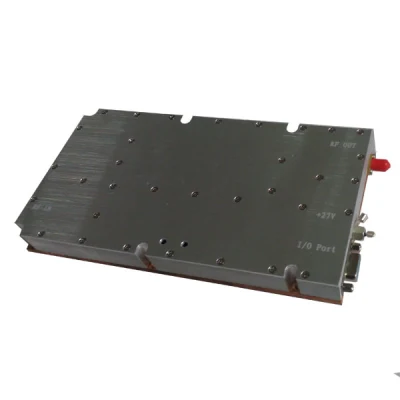

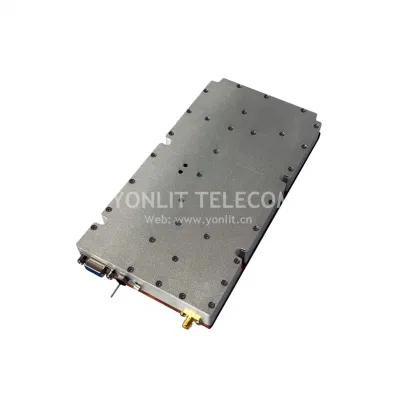

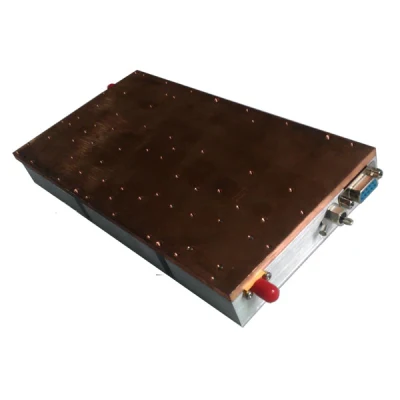

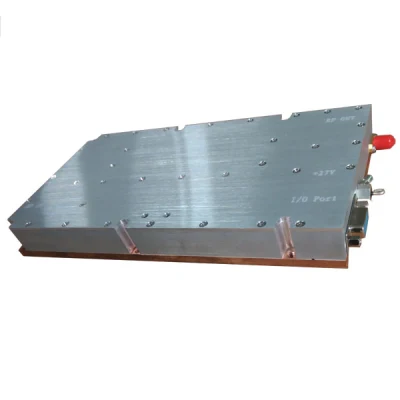

HPA GSM/DCS/3G/LTE/WiFi 100W
| No. | Item | Requirements | |
| 1 | Frequency Range | 2110-2170MHz | |
| 2 | Output Power | 50dBm | |
| 3 | Input Power | 5-10dBm | |
| 4 | Working Current | <10A | |
| 5 | PA Gain | >45dB | |
| 6 | PA Gain Adjust | 31dB,1dB Step | |
| 7 | In-Band Ripple | 2dB | |
| 8 | IN/OUT VSWR | ≤1.5 | |
| 9 | Working Voltage | 28VDC | |
| 10 | RF IN/OUT Ports | SMA - Female | |
| 11 | Dimension | 210*110*25mm (Exclusive Connector) | |
| 12 | Power Supply Port | Pull-core Capacitance | |
| 13 | Working Temperature | -25----+65ºC | |
| 14 | I/O Port | DB15 Female (Parall) | PIN1: 1dB (Hang in air or add 5V: No ATT; Grounding: Enable ATT) |
| PIN2: 2dB (Hang in air or add 5V: No ATT; Grounding: Enable ATT) | |||
| PIN3: 4dB (Hang in air or add 5V: No ATT; Grounding: Enable ATT) | |||
| PIN4: 8dB (Hang in air or add 5V: No ATT; Grounding: Enable ATT) | |||
| PIN5:16dB (Hang in air or add 5V: No ATT; Grounding: Enable ATT) | |||
| PIN7: VSWR (Reflected RF Power Indicator; Max voltage:4V) | |||
| PIN10: P/L (Output RF Power Indicator; Max voltage:4V) | |||
| PIN11: LE /EN (5V: PA OFF; Hang in air or grounding: PA ON) | |||
| PIN14: T/L(Temperature Indicator :0.01V/1Celsius) | |||
| PIN1: GND | |||
| PIN6, PIN8,PIN9,PIN12,PIN13: NC | |||
| DB9 Female RS485(Optional) | PIN1,PIN2: RS485A; PIN3,PIN4: RS485B; PIN5: GND Data Protocol: China Mobile Standard, Baud Speed: 19200 | ||
| Remarks: Items with (Option) are not standard items | |||
