Basic Info.
Model NO.
TU
Condition
New
Customized
Customized
Ultrasonic Frequency
20-130kHz
Max Ultrasonic Power
2000W
Power Supply
220V±10%, 50/60Hz(Others Customized)
Frequency
Single
Transport Package
Cartons
Specification
430*160*238mm
Trademark
CLANGSONIC
Origin
China
HS Code
8543909000
Production Capacity
1000PCS/Month
Packaging & Delivery
Package Size
55.00cm * 26.00cm * 32.00cm
Package Gross Weight
7.500kg

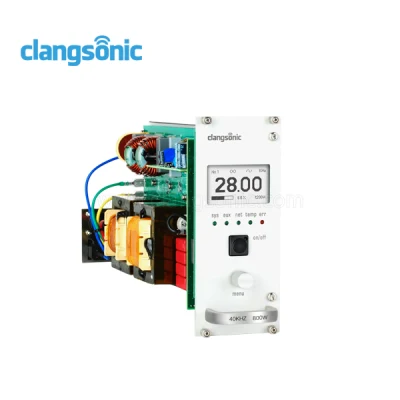

Product Description
IGBT full bridge phase shift technology
10-100% power adjustable linearly
Constant power output for different working conditions
Frequency tracking
2 Times peak power technology which has better cleaning effect to stubborn stains
Frequency sweep function which can effectively eliminate stand wave and improve ultrasonic performance
Conversion efficiency up to 95%

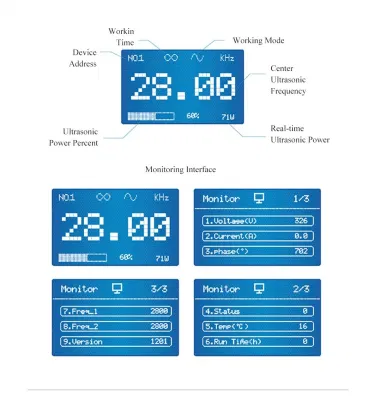

Industrial level LCD display supporting parameters setting and status monitoring
Internal protection for over current,over voltage and short circuit
Remote control,connectable to PLC and HMI etc
Can be integrated into 19'' cabinet
Support RS485 and MODBUS RTU communication
The above models are for reference only.
Take TU2028-A21 as the example
(1) Delivery time Standard products can be delivered within 7 working days. Customized products depend on the design., customized
products are based on the order quantity.
(2) Payment method
1. T/T
2. L/C
3. D/P
4. D/A
5. West Union
6. Paypal
7. MoneyGram
8. Escrow
(3) Warranty
100% brand new when leaving the factory. The seller guarantee quality of the products (excluding wearing parts) for a period of
2years from the date of trial run finish under our technician's guidence. If any quality problem within warranty, we'll provide
free spareparts or repairing service.
Clangsonic provides 18 months warranty from the date of factory under normal use. The manufacturer shall not be responsible for
any direct or indirect loss,compensation and repair due to improper use,installation,misuse or abnormal temperature,dust and
corrosive atmosphere etc.
Below are not covered by Warranty:
1. Cavitation erosion on ultrasonic tank or surface of submersible transducer,which is a normal phenomenon during ultrasonic
cleaning
2. Damage caused by abuse,improper installation,alternation,overload or neglect of precautions During the warranty,the device will
be repaired or replaced by professional.Clangsonic reserves all the right.
(4) Our Services
Multiple single frequency and multiple frequency ultrasonic generator are available The model can be used for reference, and the
ultrasonic transducer with different power and frequency can be customized according to your specific use or size.
OEM,ODM and Customization
(5) Do you accept customization?
Yes, we have professional R&D teams to respond your special requirements quickly.
(6) Can we tune the generator by ourselves?
We will tune the generator to the optimum resonant status before factory . It's forbidden for user to modify the parameters
without Clangsonic's authorization . Anauthorized modifications may damage the devices or result in untuning betwee ultrasonic
generator and ultrasonic transducer. And these are also not covered by warranty . Any question please contact us.
10-100% power adjustable linearly
Constant power output for different working conditions
Frequency tracking
2 Times peak power technology which has better cleaning effect to stubborn stains
Frequency sweep function which can effectively eliminate stand wave and improve ultrasonic performance
Conversion efficiency up to 95%
Industrial level LCD display supporting parameters setting and status monitoring
Internal protection for over current,over voltage and short circuit
Remote control,connectable to PLC and HMI etc
Can be integrated into 19'' cabinet
Support RS485 and MODBUS RTU communication
Model | Ultrasonic Frequency | Nominal Ultrasonic Power | Power Supply | Communication Interface |
TU0628 | 28kHz | 600W | 110/220VAO | IO/485 |
TU1028 | 28kHz | 1000W | 110/220VAC | IO/485 |
TU1228 | 28kHz | I200W | 220VAC | IO/485 |
TU1528 | 28kHz | 1500W | 220VAC | 10/485 |
TU2028 | 28kHz | 2000W | 220VAC | IO/485 |
TU0640 | 40kHz | 600W | 110/220VAC | IO/485 |
TUI040 | 40kHz | 1000W | 110/220VAC | IO/485 |
TU1240 | 40kHz | 1200W | 220VAC | IO/485 |
TU1540 | 40kHz | 1500W | 220VAC | IO/485 |
TU2040 | 40kHz | 2000W | 220VAC | 10/485 |
TU0668 | 68kHz | 600W | 220VAC | IO/485 |
TU1068 | 68kHz | 1000W | 220VAC | IO/485 |
TU1268 | 68kHz | 1200W | 220VAC | IQ/485 |
TU1568 | 68kHz | 1500W | 220VAC | IO/485 |
TU0680 | 80kHz | 600W | 110/220VAC | IO/485 |
TU1080 | 80kHz | 1000W | 220VAC | IO/485 |
TU1280 | 80kHz | 1200W | 220VAC | 10/485 |
TU06130 | 130kHz | 600W | 110/220VAC | IO/485 |
TU10130 | 130kHz | 1000W | 220VAC | IO/485 |
Take TU2028-A21 as the example
No. | Description | Parameters |
01 | Power Supply | 220VAC±10%(50/60HZ) |
02 | Ultrasonic Frequency | 28KHZ |
03 | Ultrasonic Power | 2000W |
04 | Peak Power | 4000W |
05 | Power adjustable | 10~100% |
06 | Full Bridge Phase Shift | Yes |
07 | Constant Power Control | Yes |
08 | Automatic Frequency-tracking | Yes |
09 | Load Self-adaption | Yes |
10 | Remote Control | Level:24VDC±10% Current:20mA |
11 | Communication Interface | RS485 (MODBUS RTU) |
12 | Working Temperature | 0~40ºC/0~90%RH |
13 | Protection Class | IP21 |

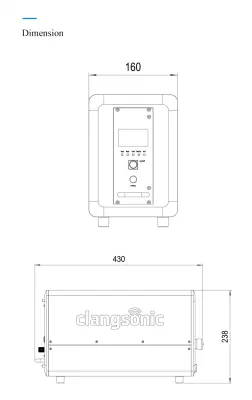

14 | Size | 430*160*238mm(L*W*H) |
G.W: 7.5KG | N.W:7KG | Size:55*26*32 cm |
