1000V50A High-Power Square Wave Pulse Power Supply 800V Pulse Frequency Adjustable Duty Cycle Single Pulse Power Supply

Introducing our 1000V50A High-Power Square Wave Pulse Power Supply, perfect for industrial applications. Our factory ensures top-quality and customizable products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
IPS-ATDH100050
Voltage Regulating Mode
Frequency Modulation Type
Power Supplying System
Terminal Power Distribution Equipment
Energy Transmission
One-way Transmission
Modulation System
/
Certification
CE, ISO
Brand
Idealplusing
Output Voltage
0~1000VDC
Output Current
0~50A
Max Power
50kw
OEM
Support
Size
H1350*W900*L680mm
Net Weight
/
Gross Weight
/
Customized
Support
Transport Package
The Wooden Case
Specification
1000VDC 50A 50KW
Trademark
IDEALPLUSING
Origin
China
Production Capacity
1000PCS/ Month

Product Description



Feature:

   The adjustable power supply adopts high-frequency switching power technology. it is controlled by a high-performance microcomputer. The voltage and current can be adjusted independently.

    The adjustable power supply is widely used in industrial control and electronic products aging and testing. It is suitable for all kinds Resistance load, capacitive load, inductive load.

Application:
1. Motor category: electric vehicle motor, electric vehicle controller, DC motor test aging, etc.
2. Electrical appliances: LED testing and aging, energy-saving light bulb testing and aging, lamp testing, tungsten gasification, etc.
3. Automotive: automotive electronics, high-power DC motors, automotive motor controllers, automotive lights, cigarette lighters, automotive audio-visual testing and aging, etc.
4. Electronic devices: capacitors, resistors, relays, transistors, sensors, etc.
5. Display: display screen, liquid crystal screen, touch screen, car DVD, mobile phone display, etc.
6. Electrochemistry: electrolysis, electroplating, anodizing, non-ferrous metal research, etc.
7. Testing and R & D of other products requiring DC power supply, such as magnetrons. etc.


Customization Range:
(1) 1 Phase: AC220V/120V±15%,50Hz/60Hz;
(2) 3 Phase: AC380V±15%,50Hz/60Hz;
(3) 3 Phase: AC450V±15%,50Hz/60Hz;
(4) 1~10000V,Stabilizer voltage value. 1% to 100% adjustable;
(5) 1~100000A,Constant current value. 1% to 100% adjustable;
(6) Adjustable mode: Keystroke type / Knob type / Touch screen optional.



Technical Parameter:

Model

IPS-ATDH100050

Name

1000V 50A  50KW DC Power Supply

Input

Input method (optional)

Three-phase, three-wire + ground

Voltage/Frequency

Three-phase 3V±10% 50Hz/60Hz

Output

Rate power

50KW

Input current

85A

Output voltage

0~1000VDC Continuously Adjustable

Output current

0~50A Continuously Adjustable

Voltage output accuracy

0.5%FS

Current output accuracy

0.5%FS

source effect

≤0.2%FS

load effect

0.25%FS

Display

Resolution

Volatge

0.01V

Current

0.01A

work efficiency

90%

power factor

93%

Output characteristics

You can choose constant voltage or constant current working mode, and can adjust the voltage and current continuously.

Output display (optional)

Touch screen display and control interface

Communication interface (optional)

/

Protection mode

Equipped with automatic protection functions for faults such as phase loss, overheating, overvoltage, overcurrent, short circuit, etc

Safety and security Characteristics

insulation resistance

≥20MΩ

Pressure resistance

2000VDC Tested 60S, no arcing, breakdown.

Work environment

ambient temperature

-15ºC~45ºC

Ambient humidity

90%(No condensation)

Waterproof level

IP20

Cooling method

Forced air cooling

external dimension

H1350*W900*L680MM

Net weight / Gross weight

/

Applicable load

1. Electroplating, electrolysis 2. Anodizing 3. Electrophoresis 4. Water treatment, electrolytic polishing 5. Testing, aging 6. Pulse power supply, etc.

Note: All specifications are subject to change without prior notice!

 Product list:


Model AC Input
Voltage
DC Output
Voltage
DC Output Current Capacity
IPS-ATDH24300 220/380VAC 0~24VDC 0~300A 7.2KW
IPS-ATDH40200 220/380VAC 0~40VDC 0~200A 8KW
IPS-ATDH101000 220/380VAC 0~10VDC 0~1000A 10KW
IPS-ATDH121000 220/380VAC 0~12VDC 0~1000A 12KW
IPS-ATDH151000 380VAC 0~15VDC 0~1000A 15KW
IPS-ATDH241000 380VAC 0~24VDC 0~1000A 24KW
IPS-ATDH200020 380VAC 0~2000VDC 0~20A 40KW
IPS-ATDH85065 380VAC 0~850VDC 0~65A 55.25KW
IPS-ATDH126000 380VAC 0~12VDC 0~6000A 72KW
IPS-ATDH250300 380VAC 0~250VDC 0~300A 75KW
IPS-ATDH204000 380VAC 0~20VDC 0~4000A 80KW
IPS-ATDH1210000 380VAC 0~12VDC 0~10000A 120KW
IPS-ATDH1210000 380VAC 0~35VDC 0~4500A 157.5KW
IPS-ATDH1002000 380VAC 0~100VDC 0~2000A 200KW
IPS-ATDH400500 380VAC 0~400VDC 0~500A 200KW
IPS-ATDH1520000 380VAC 0~15VDC 0~20000A 300KW
IPS-ATDH4510000 380VAC 0~45VDC 0~10000A 450KW
Noted:Different output voltage and current can be customized!(The higher the power, the recommended input voltage is 380VAC.)
Common Applications:
1. Electroplating, electrolysis
2. Anodizing
3. Electrophoresis
4. Water treatment, electrolytic polishing
5. Testing, aging
6. Pulse power supply, etc.

Noted:Different applications, product prices are not the same, the specific price is subject to the actual inquiry!

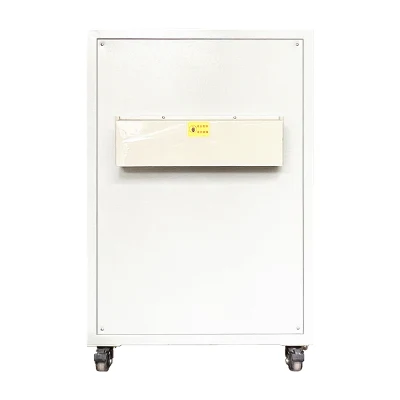

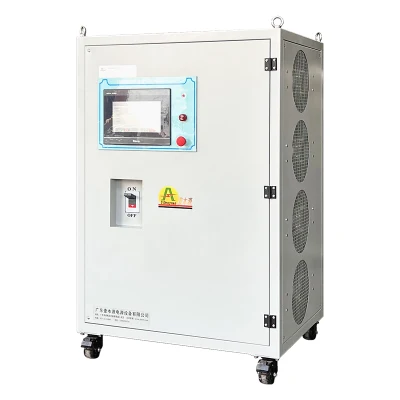

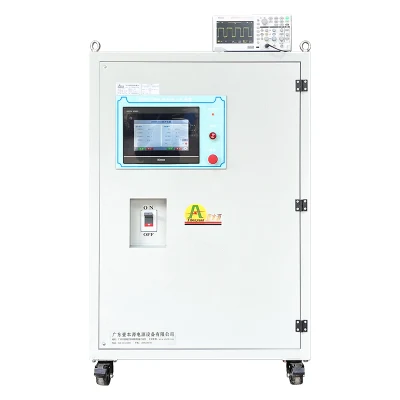

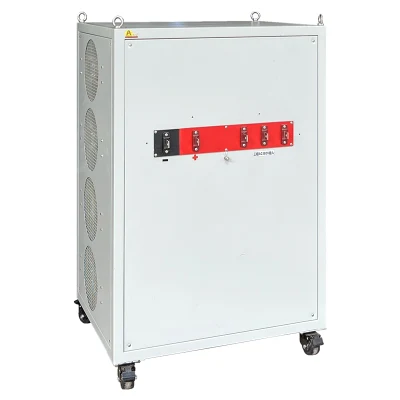

Product Image:(Actual pictures are subject to quotation.)
