Product Description
Product Description
Item Name
1.25Gbps InGaAs/InP Super-TIA TO-CAN
Super TIA is a high-performance optical communication receiver that is typically used for long-distance optical communication applications. It features a large-area photodetector and a high-gain preamplifier, which enable high sensitivity and low-noise signal reception. However, due to its larger size and high gain, Super TIA also consumes more power.
Item Name
1.25Gbps InGaAs/InP Super-TIA TO-CAN
Super TIA is a high-performance optical communication receiver that is typically used for long-distance optical communication applications. It features a large-area photodetector and a high-gain preamplifier, which enable high sensitivity and low-noise signal reception. However, due to its larger size and high gain, Super TIA also consumes more power.
Feature
Long wavelength operation, Data rate up to 1.25Gbps
3.3V low-voltage operation, Package:TO-46
Internal AGC Circuit
Bandwidth 1000MHz, High sensitivity -30.0dBm
Excellent reliability, meeting EU RoHS requirements
Application
GePON, Gigabit Ethernet, Fiber Channel
SFF, SFP, GBIC transceivers
Description
The product integrates a high speed Photodiode PIN and TIA with AGC.

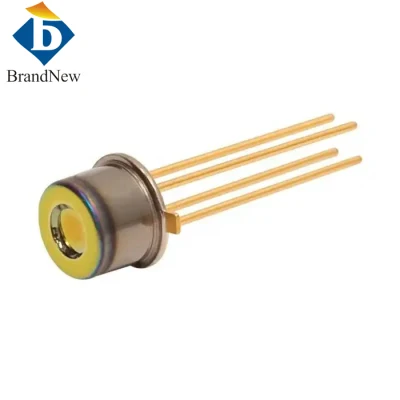

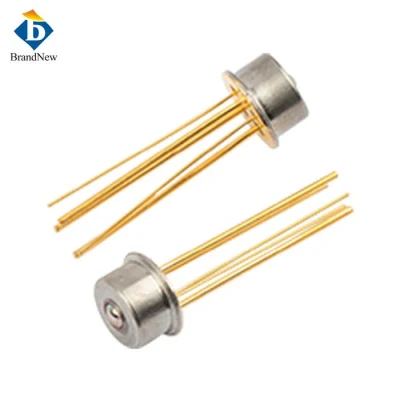

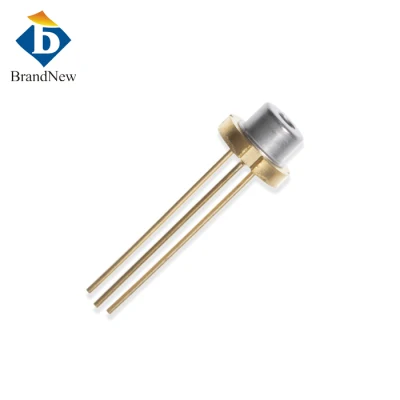

Product Photo
| Absolute Maximum Ratings | |
| Storage Temperature | -55~+150ºC |
| TIA Supply Voltage | 4V |
| PD Supply Voltage | 20V |
| PD Reverse Current | 10mA |
| Input Optical Power | 5mW |
| Soldering Temperature | 260/10ºC/s |
| Recommended Operating Conditions | |
| Operating Temperature | 25ºC |
| TIA Operating Voltage | 3.3V |
| PD Operating Voltage | 20V |
| Opto - Electrical Characteristic | |
| Optical Wavelength | 900-1650nm |
| Supply Current | 26mA |
| Bandwidth | 1000MHz |
| Sensitivity | -30dBm |
| Output OverLoad | +3.6~6dBm |
| Output Loading | 100Ω |
