160*160 Dots LCD Screen Transflective Mono LCD Module

Overview
Product Description
Applications
More Products
Company Profile
Certifications
Our Customers
Packaging & Shipping
FAQ

Basic Info.

Model NO.

FG001089-FKFW

Type

Graphic

Response Time

2.5ms

Viewing Angle

6:00 O′clock

Display Technology

FSTN/CSTN

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Multiplex Drive LCD Module

Customized

LCD Type

Graphic LCD Display Module

Display Modle

FSTN,Positive

Polarizer Type

Transflective

Driving Condition

1/160 Duty,1/10 Bias

Drive Power Supply Voltage

Vdd=3.3V,Vlcd=16.5V

Operating Temp

-20ºC ~ +70ºC

Storage Temp

-30ºC ~ +80ºC

Resolution

160*160 Dots

LCD Connector

Cog

IC Driver

UC1698u

Application

Graphic Design, Indoor ,Outdoor

Feature

White LED Backlight

Transport Package

EPE, Carton

Specification

RoHS, REACH, ISO

Trademark

OEM/ODM

Origin

China

HS Code

9013809000

Production Capacity

500, 000PCS/Month

Packaging & Delivery

Package Size

0.10cm * 0.10cm * 0.10cm

Package Gross Weight

0.100kg

Product Description

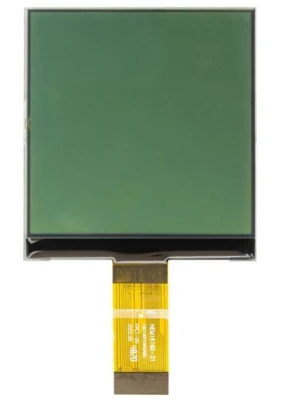

160*160 Dots LCD Screen Transflective Mono LCD Module

160*160 Dots LCD Screen Transflective Mono LCD Module

Display Type:FSTN/POSITIVE
Outline Dimension: 187.00(W) ×76.30 (H) ×2.80(D) mm
Viewing Size: 176.62(W) x 59.5(H) mm
Viewing Angle: 6:00 o'clock
Polarizer Type: TRANSFLECTIVE
Driving Method:1/160 DUTY,1/10 BIAS
Connector Type:COG+FPC
Operating Volt:VDD=VDD=3.3V,VLCD=16.5V
Operating Temp:-20ºC ~ +70ºC
Storage Temp: -30ºC ~ +80ºC

160*160 Dots LCD Screen Transflective Mono LCD Module

160*160 Dots LCD Screen Transflective Mono LCD Module
We can provide custom display solutions worldwide across various industries including,medical industry,communications industry,industrial equiment ,appliance industry,communication hand-held device,meters measuring devices,automotive products.

160*160 Dots LCD Screen Transflective Mono LCD Module
Custom all kinds of LCD and LCM, TN, HTN, STN, FSTN, VATN, COB, COG Display and Backlights etc.
Factory Price →Stable High Quality →Controllable Lead Time

More hot custom LCD TN HTN STN FSTN VA VATN DFSTN BTN ,and we could customize any lcd according to your requirements .

160*160 Dots LCD Screen Transflective Mono LCD Module
Factory possesses various full-automatic production lines,Our team of highly qualified electronic engineers provides expert technical support,all products are 100% inspected before shipment.
