Basic Info.
Product Description
| Main Specifications | ||
| Boule | Wafer | |
| Growth direction | [100] [110] [111] | [110] [001] [111] |
| Dimension | f 35 ~ 50mm | f35 ~ 50mm |
| Length/Thickness | 50 ~ 60mm | 0.2 ~ 1.0mm |
| Flatness | ≤ 15 mm | |
| Bow | ≤ 15 mm | |
| Physical Properties | |
| Crystal Structure | Tetragonal |
| Point Group | 422 |
| Lattice Parameter )nm) | a 0.4810 c 0.7613 |
| Density | 5.99 g/cm3 |
| Melting Point | 730°C |
| Mohs Hardness | 4.5 |
| Transparency Range (nm) | 350 ~ 500 |
| Gradient of Refractive Index(×10-15)/cm | ≤ 5 |
| Refractive Index | no = 2.260 n3 = 2.142 |
| Transmittivity | 70%@632.8nm |
| Phase Velocity (m/s) | 616 |
| Photo-elastic Coefficient | P11=0.074 P13=0.340 P31=0.091 P33=0.240 |
| Figure of Merit( ×10-18S3)/g | M2 793 |
Application:
TeO2 crystals can be used to produce kinds of acousto-optic device, such as acousto-optic deflector, acousto-optic Q-switched and SAWD. Thus, these crystals are widely used in lidar, the scanning of TV and large screen's displayer, the optical memory of photon computer and laser communication.

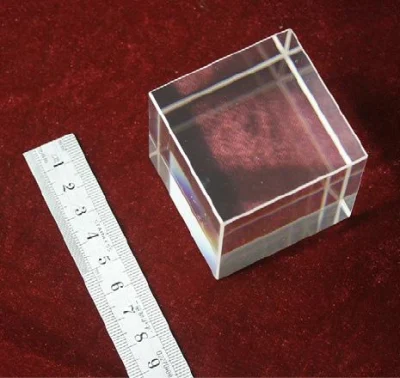

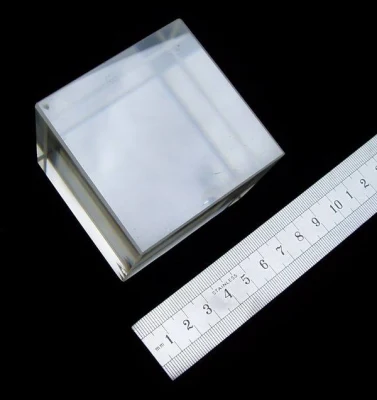

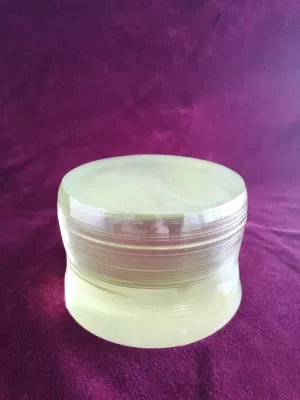

We can provide 2inch, 3inch 4inch TeO2 ingots and all specs of wafers,bars, and blocks. Any of your questions and comments are warmly welcome.
Characteristic:
TeO2, Colorless synthetic single crystal, grown from melt with Czochralski method
Symmetry: Tetragonal, 422 (D4)
Lattice distances: a = 4.8122 A; c = 7.6157 A
Molecular weight: 159.5
Density, g/cm3: 5.99 ± 0.03
Melting point: 733 0С
Hardness: 3 - 4 Moh's hardness scale
Thermal expansion, ·10-6 К-1: α11 = 17.7; α22 = 17.7; α33 = 5.5
Transmission: 0.35 - 5.0 μm
