Product Description
2.4GHz outdoor wifi extender Managed by WLAN Controller in AP Mode Support Watchdog Technology
Description:

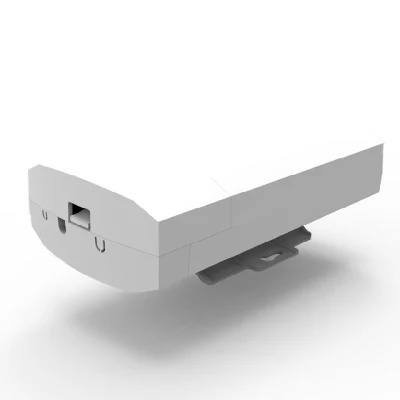

CPE120M is a hot sell 300Mbps outdoor CPE with LED display to configure the WDS PT/PTMP connection. It complies with IEEE 802.11b/g/n standard, with 8dBi dual polarized high gain antenna, the PTP/PTMP distance is more than 1000 meters.

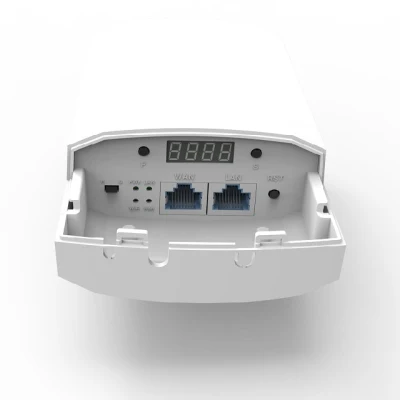

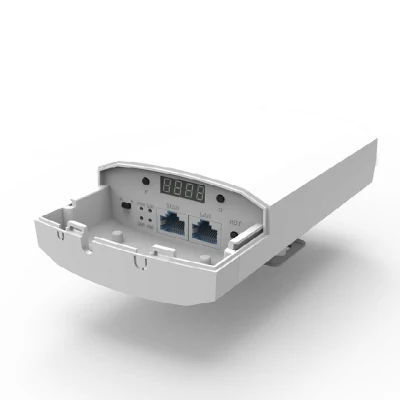

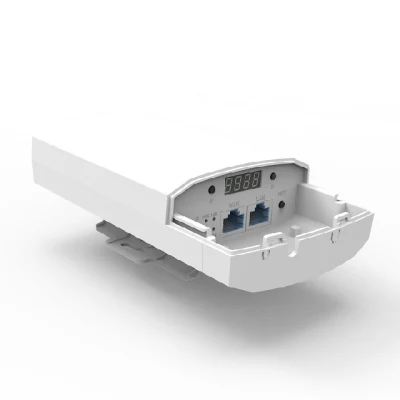

It support Wireless AP, Wireless Bridge operation mode for PTP/PTMP connections, with LED display, easy to setup CPE120M's operation mode, IP address, Channel by Function/Selection switch together with LED display, no need to access into GUI, avoid the complex setup program, and simple to view the connection status and signal strength by LED display, save much human work and cost, make the long range wireless coverage, data transmit and wireless monitoring simple and professional.
CPE120M with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it supports 24V passive PoE and 4KV lightning protection, ideal for outdoor use;
Most Important, CPE120M support watchdog self-detection function, reboot and recover device automatically if some network attack. Besides that, it support cloud remote management, administrator can monitor the working status, upgrade firmware, reboot, timed reboot device through cloud server, recover and maintain device at any time and any location, operator level outdoor PTP/PTMP connection equipment.
Hardware Specification:
| Hardware: | |
| Chipset | MT7628DAN |
| Standard | 802.11b/g/n |
| Flash | 8MB |
| DDR3L | 64MB |
| 2.4G Frequency | 2.4GHz - 2.484GHz |
| Interface | 1 * 10/100 RJ45 WAN Port |
| 1 * 10/100 RJ45 LAN Port | |
| 1 * Reset Button | |
| 1 * S/ M Switch | |
| 2 * Function Buttons | |
| Antenna | Built-in 8 dBi directional antenna |
| Data Rate | 300Mbps |
| End Users | 50+ |
| 2.4G RF Power | ≤ 21dBm |
| PPM | ±20ppm |
| PoE | 24V Passive POE |
| LED light | Sys, WAN, LAN |
| Power Consumption | ≤ 5W |
| Size | 168*88*57.6MM |
| Weight | 0.5KG |
| Others: | |
| Environment | Operating Temperature: -30~55 ºC Limit working temperature: -40~70 ºC Storage Temperature: -40~70 ºC Humidity: 5%~95% non-condensing |
Antenna Specification
| Frequency Range | 2.4GHz |
| Impedance | 50 Ohms nominal |
| Gain | 8dBi |
| Radiation | Directional |
| Polarization | Vertical |
| Connector | TIN |
Application
Throughput Testing:
| Mode | 802.11b |
| UL/ DL | 5.25Mbps |
| Mode | 802.11g |
| UL/ DL | 25.30Mbps |
| Mode | 802.11n |
| UL/ DL | 95.18Mbps |
Accessory
| CPE | 1 |
| Lan cable | 1 |
| Mounting Accessories | 1 |
| Gift Box | 1 |
