Basic Info.
Model NO.
ES-5012HSD
Transmission Mode
Wired or Remote LED or Wireless Optional
Alarm Volume (within 1m)
≥90dB
Receive Frequency
Wired or Remote LED
Mounted Way
Ceiling Mounted
Detector Type
4 Wire or 2 Wire Type Optional
Operation Voltage
9-35V
Alarm Output
Relay Output / Remote LED Indicator
Dimension
D100*48mm
Alarm Temperature
57 Degree C
Transport Package
60PCS/Carton
Specification
Suitable to use all over the world
Trademark
Ease Security
Origin
China
HS Code
8531901000
Production Capacity
5000 000PCS/Month
Product Description
Item Name

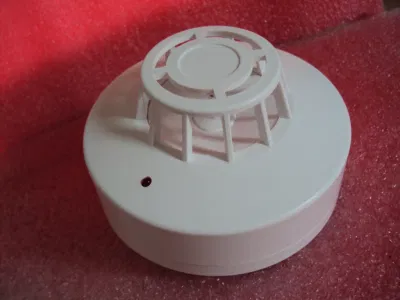

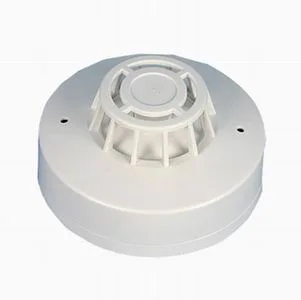

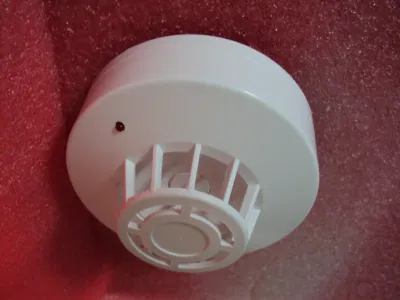

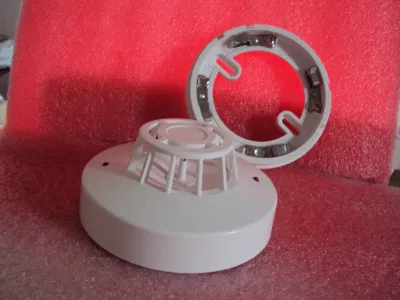

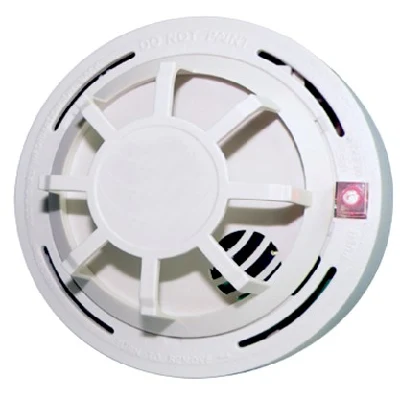

4 wire Heat Detector with NO NC Relay Output
Main Features
Power supply non-polar input:DC 9V~35V
Low standby current.
Anti-EMI and Anti-RFI.
Adopt SMT
Temperature rising speed alarm(8-15ºC/MIN)
or Fixed temperature alarm 135ºF(57ºC).
Alarm Output: Remote LED indicator
Dimension: Φ100*48mm.
Technical Specification
Can work without study code,DC power supply can be connected directly.When it is working, the working LED flash;when it is alarm ing, the alarm LED on.
1:Power off / reset
2:Infrared photoelectric sensor
3:Smart Logic Control for reduce false alarm
4:Net work output / LED alarm
5:SMT technique for stable
6:Dust-proof,mothproof,anti-whitelight design
7:Metal shield for anti RFI (20V/m 10MHz~1GHz)
Two Wire type Connection
Four Wire type Connection
4 wire Heat Detector with NO NC Relay Output
Main Features
Power supply non-polar input:DC 9V~35V
Low standby current.
Anti-EMI and Anti-RFI.
Adopt SMT
Temperature rising speed alarm(8-15ºC/MIN)
or Fixed temperature alarm 135ºF(57ºC).
Alarm Output: Remote LED indicator
Dimension: Φ100*48mm.
Technical Specification
Can work without study code,DC power supply can be connected directly.When it is working, the working LED flash;when it is alarm ing, the alarm LED on.
1:Power off / reset
2:Infrared photoelectric sensor
3:Smart Logic Control for reduce false alarm
4:Net work output / LED alarm
5:SMT technique for stable
6:Dust-proof,mothproof,anti-whitelight design
7:Metal shield for anti RFI (20V/m 10MHz~1GHz)
Two Wire type Connection
Four Wire type Connection
Type | Output | Power |
| 4 Wire | Relay Output | 9-35V dc |
| 2 Wire | Remote LED Indicator | 9-35V dc |
| Wireless | RF signal | 9V battery |
