Basic Info.
Model NO.
SFT3548
Input
4 Asi Inputs
Frequency Range
30~960 MHz
Constellation
16/32/64/128/256qam
Qam Channel
4
Transport Package
1PCS/Carton
Specification
5KGs
Trademark
Softel
Origin
China
HS Code
8517623400
Production Capacity
100PCS/Week
Product Description

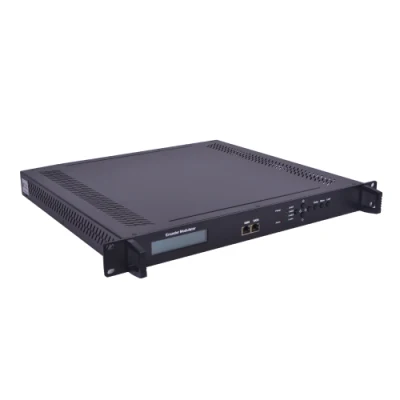

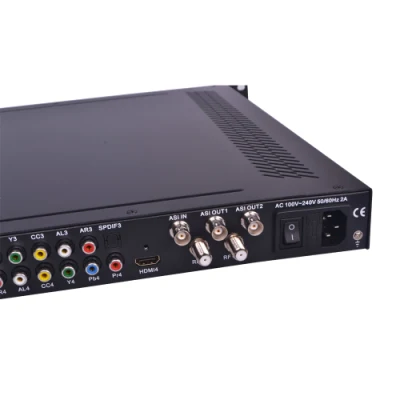

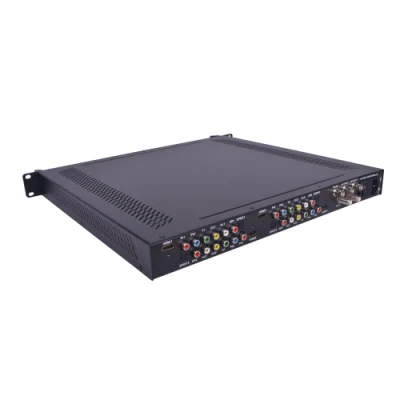

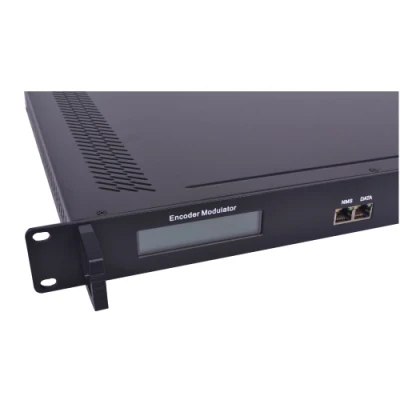

SFT3548B 8 in 1 Encoder/Modulator is an all-in-one device integrated encoding multiplexing and modulation functions in one standard 1U case. It can convert 8 CVBS signals and 1 ASI input to DVB-C RF out in the frequency range of 30~950MHz. It is also equipped with 2 ASI ports and IP port to output TS in MPTS or SPTS.
The signals source could be from satellite receivers, closed-circuit television cameras and etc. its output signal is to be received by DVB-C standard TVs or DVB-C STBs.
The device can be used in public place such as metro, market hall, theatre, hotels, resorts, etc for advertising. It also can be used for monitoring, training and educating in company, schools, campuses, hospital.
Support 8 CVBS input and 1 ASI Input for re-mux
Support H.264 & Mpeg2 video encoding
Support PAL, NTSC SD signal
MPEG1 Audio Layer 2 & LC-AAC audio encoding
Support VBR/CBR video encoding
Support Low Latency function
DVB-C RF output compliant with J.83A/B/C
Supports MPTS or 8 SPTS IP (UDP, RTP/RTSP) Output
Supports IP null packet filter
Excellent modulation quality
LCD / keyboard and web NMS operation
Update device through NMS port
| Input | 8 CVBS inputs , BNC interface | ||
| 8 pairs unbalanced stereo audio input, BNC interface | |||
| 1 ASI input, BNC interface | |||
| Video | Resolution | PAL:720*576i; NTSC: 720*480i | |
| Encoding | MPEG-2; H.264 | ||
| Bit-rate | 0.5~15Mbps for H.264 encoding | ||
| 1~15Mbps for MPEG-2 encoding | |||
| Rate Control | CBR/VBR | ||
| Aspect Ratio | 4:3, 16:9 | ||
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening | ||
| Audio | Encoding | MPEG1 Audio Layer 2; LC-AAC | |
| Sampling rate | 48KHz | ||
| Bit-rate | 32Kb/s~384Kb/s for LC-AAC encoding (each channel); | ||
| 64Kb/s~384Kb/s for Mpeg1 layer 2 encoding (each channel) | |||
| Modulation | Standard | J.83A, J.83B, J.83C | |
| MER | ≥42dB | ||
| RF frequency | 30~950MHz, 1KHz step | ||
| RF output level | -30.0~ 0.0 dbm (77~107 dbµV), 0.1db step | ||
| Symbol rate | 2.5 - 4.66 Msps, 5.0 - 8.0 Msps | ||
| J.83A | Constellation | 16/32/64/128/256QAM | |
| bandwidth | 8M | ||
| J.83B | Constellation | 64QAM, 256QAM | |
| bandwidth | 6M | ||
| J.83C | Constellation | 64QAM, 256QAM | |
| Bandwidth | 6M | ||
| Multiplexing | 1 ASI input multiplexed with local 8 channels of TS | ||
| Stream Output | 2*ASI output, BNC interface | ||
| MPTS/8*SPTS over UDP or RTP/RTSP, 100Base-T Ethernet interface (UDP/RTP/RTSP unicast / multicast) | |||
| System Function | Low Latency achieved (Normal, mode 1 and mode 2 optional) | ||
| LCD/keyboard and Web-based NMS operating | |||
| System Language: English | |||
| Ethernet software & hardware upgrade | |||
| Miscellaneous | Dimension (W× L× H) | 482mm×410mm×44mm | |
| Approx weight | 4kg | ||
| Temperature | 0~45°C(work), -20~80°C(Storage) | ||
| Power | AC 100V-220V±10%, 50/60Hz | ||
| Consumption | 25W | ||
