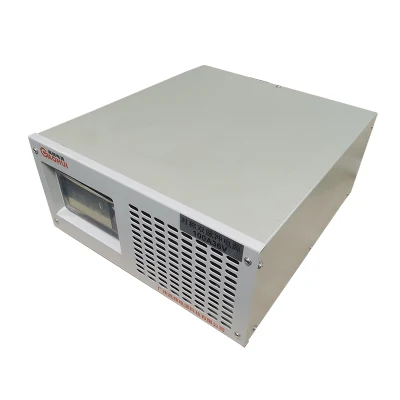

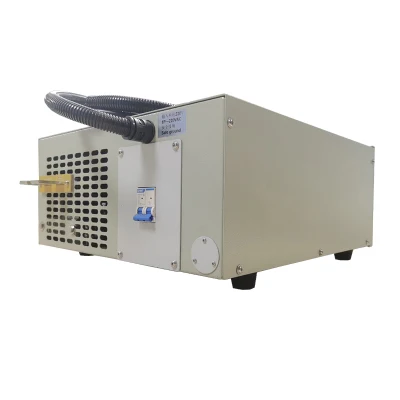

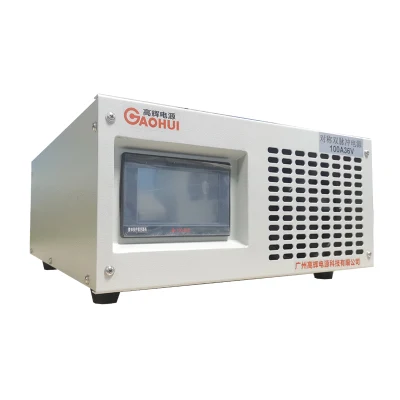

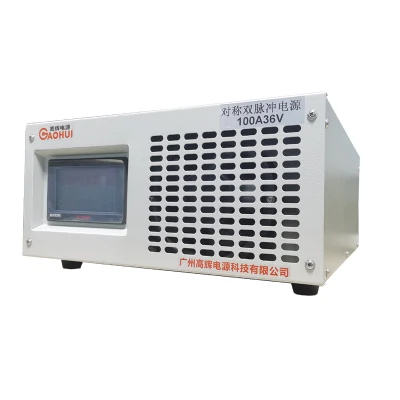

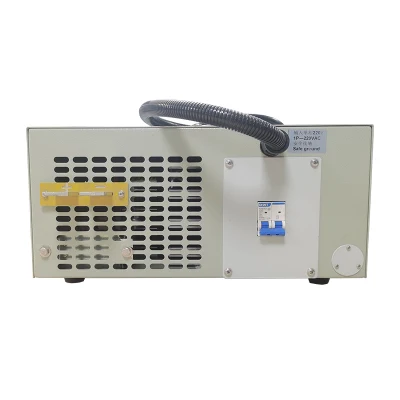

100A36V High Frequency Symmetrical Pulse DC Rectifier for Metal Plating with Touch Screen

Select the product configuration of "Gaohui Power Supply"
Output short-circuit protection at the load end
·Supports multiple output modes: forward DC, forward pulse, alternating pulse, reverse DC, reverse pulse, combined pulse
·Control mode: key, touch screen, external control (support 485 and CAN communication)
·It has the automatic memory function of setting parameters and power off. It has the accurate remote compensation function and the rising edge compensation function, which can reduce the pulse rising edge to less than 5US to meet the special requirements of electroplating
·The plating process can be controlled at fixed time or fixed safety time
·The ampere value for each plating can be displayed, as well as the cumulative total ampere value
·Can store multiple preset electroplating program arbitrary call
·Equipped with 4.3 inch color LCD display, you can directly display the setting parameters and waveform on the display
·The unique and professional design of the cooling duct not only ensures the heat dissipation effect of the product, but also makes the product have excellent anti-corrosion performance
·Supports switching between Chinese and English interfaces
·Output short-circuit protection at the load end
·The accuracy of the 1A model is up to 1MA, and the 5A model is up to 10MA100A model adopts combination assembly, easy maintenance, multiple protection functions, safe
·Fully reliable rated input voltage AC220V and AC110V models, wide input voltage range.

Single/Double
Pulse power supply product introduction:
The pulse power supply has single positive pulse and double positive and negative pulse power supply, which is controlled digitally by unique modulation technology. The positive pulse opening width (T+) and negative pulse opening time width (T-) can be adjusted respectively during the whole cycle. Positive current, voltage regulation, negative current.voltage can be adjusted independently. Can fully meet the different needs of customers.
Multifunctional pulse power supply is a novel electroplating power supply. lt uses microcomputer technology to control the parameters of electroplating power supply comprehensively, and can be combined into a variety of constant current and constant potential pulse signals by programming. lts main features are:
With constant current, constant voltage (slot pressure) output function;
·Constant current or constant voltage multiple combination of positive and negative pulse output;
·The plating process can be controlled at fixed time or fixed safety time.
The ampere value of each played, and the total ampere value can also be displayed.
·Can store 100+ preset electroplating program arbitrary call;
·Equipped with 4.3-inch LCD display, directly display.
the setting parameters and waveform on the display
·Supports 485 and CAN communication
Main technical indicators:
1. Output current: 0- Maximum value (for example, 25A maximum value 25A) Output voltage: 0- maximum value (for example, 12Vmaximum value 12V)
2.pulse time: 0.1ms-9999ms
3. maximum pulse current: 0- maximum (for example, 25A maximum 25A)
4. Maximum running time: 999999s
5. ampere-hour reading range: 999.999Ah





1.Q:Are you factory or trading company?
   A:We are factory can offer more cheaper price but the same good quality.
We are an integration of industry and trade factory.direct sales form factory,cutting out the middlemen to earn your more money.
2.Q:Where are your Company?
   A:No.1679,North Panyu Avenue,Qiannan Street,Panyu District,Guangzhou,Guangdong Province,China-511486
3.Q:If I want to visit your factory,how can i go there?
   A:You just need to tell us when do come to our company,we will pick u up.
4.Q:How can I do a payment?
   A:You can choose T/T and other payments need to be negotiate.
5.Q:How can I get my goods?
   A:Now we have sea shipping,Airway,FedEX,DHL,UPS and other transporting ways need to be negotiated.If you ordered big rectifiers and it's no urgent,shipping is the best way.If u ordered small or it's urgent,Airway,FedEX,DHL  are recommended.What's more,if u want to receive your goods at your home or your company,please choose DHL or FedEX or UPS.If there is no transporting way which you want,pls contact me without hesitation.
6.Q:If problems of my rectifiers occured,what should I do?
   A:Firstly pls resolve the problems by yourself according to User's Manual.There are solutions in it.If they're common troubles.Secondly,if User's Manual can't be resolve your problems,plz contact me immediately.Our engineers are on standby.
7.Q:Can you customize what i want?
   A:We support customize,we need to talk with you about the details.
