Basic Info.
Model NO.
N5242B
Usage
Electric Component Tester, Gas Sensor Tester, Catalytic Element Tester, Lightning Protection Device Tester, Test Measurement
Type
Vector Network Analyzer
Environment
Room Temperature
Warranty
With Warranty
Power Source
Contact Us
Weight
〉10Kg
Installation
Direct Connected
Customized
Customized
Frequency
900 Hz / 10 MHz to 26.5 GHz
Signal Source
1-2
Transport Package
Anti-Collision and Moisture-Proof
Specification
Desktop
Trademark
Keysight
Origin
America
Product Description

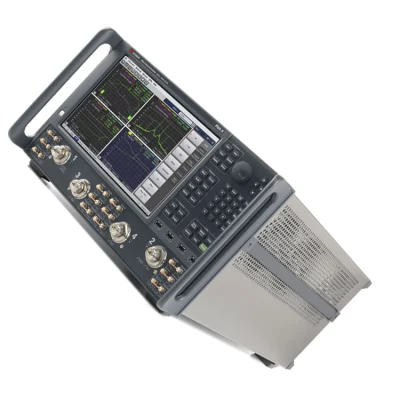

PNA-X Network Analyzers
The industry's most advanced RF test solution
Highlights
Reach for Unrivaled Excellence
Keysight's PNA-X is more than just a vector network analyzer. It is the world's most integrated and flexible microwave test engine for measuring amplifiers, mixers, frequency converters, and other active devices. The hardware includes two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators and generators, and a flexible set of switches and RF access points. These hardware features provide a powerful core for a broad range of linear and nonlinear measurements, all with a single set of connections to your device under test.
- Simplify your test system by replacing an entire rack of equipment with one PNA-X network analyzer.
- Reduce test time with the widest range of single-connection measurement applications.
- Accurately test linear and nonlinear device characterization using advanced error correction.
- Choose from the industry's widest range of measurement applications for speed, accuracy, and ease of use in advanced RF test.
- Accelerate insight into component behavior using a multitouch display and intuitive user interface.
| It can replace all kinds of rack and stacked equipment and significantly simplify the assets of the test station | Comprehensive and flexible single connection microwave test engine can improve production efficiency | Using a wide range of single-connection measurement applications can shorten the test time |
| Use advanced error correction function to accurately test the characteristics of linear and nonlinear devices | Multi-point touch screen and intuitive user interface accelerate the analysis of component characteristics | quick start guide |
| Calibration certificate | 3 inductors (magnetic core) | Extend the Capabilities of Your Product |
