Overview

Basic Info.

Model NO.
SK-963B
Transport Package
Gift Box
Specification
20*5*5cm
Trademark
SOUKA
Origin
China
HS Code
8529901011
Production Capacity
50000 PCS/Year

Product Description

Product Description

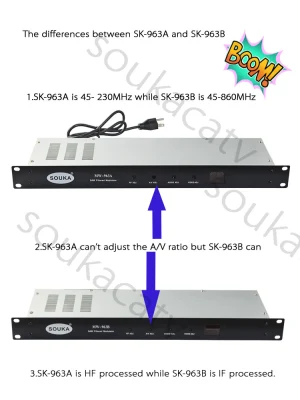

The SK-963B is a cost-saving RF modulator. It's fixed channel and adjacent one with professional performance. It's with SAW flitering and available for any cable channel from 45-860MHz. This unit offers high performance, low cost and compact design.

Feature



1. IF process with excellent performance

2. SAW filtering for maintenance free adjacent channel configuration

3. Phase lock loop frequency control prevents frequency drift

4. LED Display. Front panel control for easy installment

5. Excellent video and audio linearity for superior picture quality

6. Standard 19" housing for standard rack

7. PAL, NTSC and SECAM optional

8. Excellent value for your investment dollar

Specification
OUTPUT
RF Output Frequency 45~860MHz any one channel
Output Connector F Connector
Output Level 115 dBµV (Adj.)
Test Point -20 dB ±3dB
A / V Ratio -11 ~ -18 dB (Adj.)
Frequency Stability ±10KHz
Output Impedance 75 Ohms
INPUT
VIDEO Video Input Level 0.6-1.5Vp-p (87.5% Modulation)
Input Connector Yellow RCA Jack
Video C/N 60dB
AUDIO Input Level 0.8Vp-p(25KHz Peak Deviation)
Input Connector White RCA Jack
GENERAL
POWER AND SIZE Voltage AC 110 ~ 220V
Power Consumption 10W
Dimension 19" x 1.75" x 6.6"
