Basic Info.
Product Description
Big LCD which displays frequency and all kinds of information
DUAL-DIGITAL TUBE FOR CHANNEL DISPLAY
USE EL technology for backlight
PA,CW,AM,FM,USB,LSB mode
A,B,C,D,E,F
bands in total, with 60 channels at most in each band to be programmed.
Frequency Tuning Step can be 10HZ, 100HZ, 1KHZ or 10KHZ.
Multiple CLARIFIER Operating Modes
Flexible menu functions and PC programming software to meet varied customer demands
ECHO Function
SQ, ASQ Function (FM and AM mode only)
RF GAIN ADJUSTMENT
RF PWR ADJUSTMENT
SCAN FUNCTION
RB FUNCTION
NB/ANL FUNCTION
DW DUAL-WATCH FUNCTION
BEEP VOICE PROMPT
+10KHZ Function
SWR,S/RF,DC Voltage display function
TOT function
HI-CUT FUNCTION
EMG CALL
SWR PROTECTION
POWER SUPPLIED VOLTAGE PROTACTION
Key-Lock Function
General | |
Frequency Range | 25.615MHZ-30.105MHZ(Programmable) |
Frequency Band | A/B/C/D/E/F |
Channel | 60 channels(programmable) in each band |
Frequency Control | Phase-Locked-loop Synthesizer |
Frequency Step | 10HZ 100HZ 1KHZ 10KHZ |
Frequency Tolerance | 0.01% |
Frequency Stability | 0.00% |
Temperature Range | -30ºC to +50ºC |
Microphone | Plug-in dynamic;with push-to-talk/UP/DN/ASQ switch and coiled cord |
Input Voltage | DC 13.8V normal,15.9V max; 11.7V min Transmit:AM full |
Size | 28*25*6CM |
Weight | 2.8KG |
Antenna Connector | UHF,SO239 |
Transmitter | |
Power Output | AM/CW:12W (adjust table) FM:2-40W(adjust table) USB/LSB:0-30W(adjust table) |
Modulation | High and low level class B |
Amplitude Modulation:AM | |
Varied Capacitance Frequency Modulation:FM | |
Inter-modulation Distortion | SSB:3rd order,more than -25dB; 5th order,more than - |
SSB Carrier Suppression | 55dB |
Unwanted Sideband | 50dB |
Frequency Response | AM and FM:450 to 2500HZ |
Saida Impedancia | 50ohms,unbalanced |
Sensitivity | SSB:0.25µV for 10dB(S+N)/N at greater than 1/2-watt of audio output |
AM:1.0µV for 10dB(S+N)/N at greater than 1/2watt of audio output | |
FM:1.0µV for 20dB(S+N)/N at greater than 1/2 watt of audio output | |
Selectivity | AM/FM:6dB 3KHz,50dB 9KHz |
SSB:6 dB 2.1KHz,60dB 3.3KHz | |
Image Rejection | More than 65dB |
IF Frequency | AM/FM:1.965MHz 1st IF,455KHz 2nd IF SSB:10.695 |
Adjacent-Channel | 60dB AM/FM & 70dB SSB |
Rejection |
|
RF Gain Control | 45dB adjustable for optimum signal reception |
Automatic Gain | Less than 10dB change in audio output for inputs form 10 to 100,000 microvolt |
Squelch | Adjustable; threshold less than 0.5µV |
Automatic Squelch Control(only AM/FM) 0.5µV | |
ANL | Switchable |
Noise Blanker | RF type, effective on AM/FM and SSB |
Audio Output Power | 4 watts into 8 ohms |
Frequency Response | 300 to 2800 Hz |
Built-in Speaker | 8 ohms, round |
External Speaker(Not | 8 ohms;disables internal speaker when connected. |

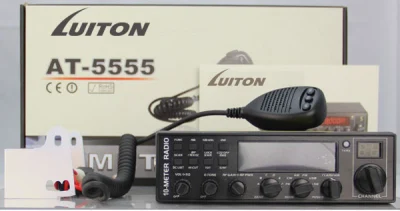

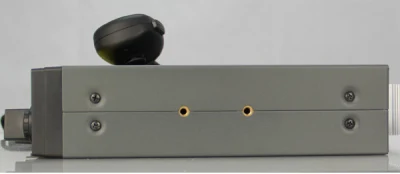

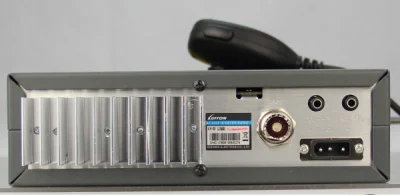

Photos:

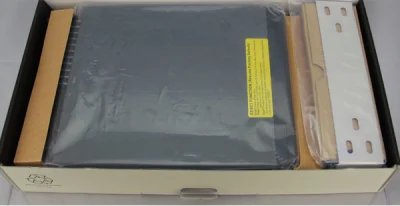

Packaging & Shipping
· 1x radio body
· 1xDC power line
· 1xMicrophone
· 1x Mounting Bracket
· 1x User's Manual
