Basic Info.
Model NO.
DT-AM-8000J

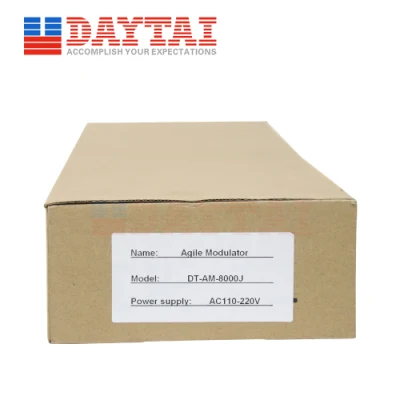

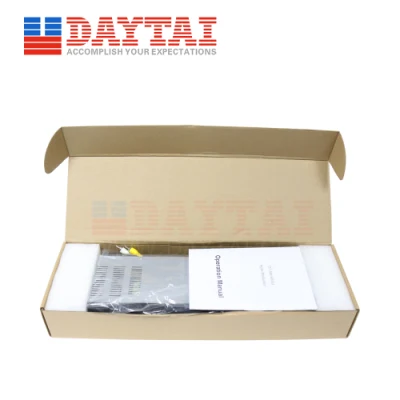

Transport Package
Safe Packaging, Thick Foam Box and Carton
Specification
ISO 9001, CE, SGS
Trademark
DAYTAI Technology
Origin
Hangzhou, Zhejiang Province, China
Production Capacity
250000 PCS/Month
Product Description

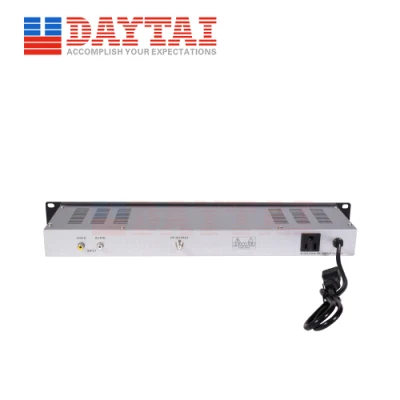

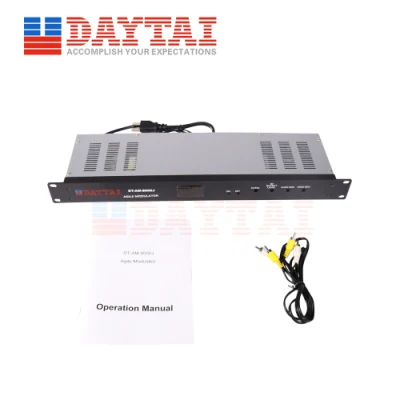

Audio and Video CATV Analog Agile Modulator RF Signals CATV Analog Modulator
This agile TV modulator provide audio and video modulated RF signals on TV channel which is selectable throughout frequency range: 45-870MHz. Any standard audio/video source can be used: satellite receiver, TV camera, video tape recorder or TV demodulator. Three push buttons on the front panel operate on a built-in microprocessor which selects the Video Carrier Frequency, the Video/Audio Carrier Level Ratio and Video/Audio Modulation Index. A comprehensive liquid crystal display, whose position on the panel displays the performed selection. The modulation process operates on a local crystal-controlled IF signal, which via SAWF is directed to a double frequency conversion that uses PLL synthesized local oscillators. SAWF filtering provides true VSB (Vestigial Side Band) response and enables the modulator to be used in adjacent channel systems. An external IF loop permits the internally generated standard IF to be replaced by an alternate composite IF -stereo or dual sound--, as well as to apply signal scrambling systems.
★Features
⊙Digital control. ⊙Full +55dBmV output. ⊙Base-band video and audio inputs. ⊙Triple IF SAW filter. High vestigial sideband selectivity. ⊙Microprocessor controlled. Selection push buttons. LCD display. ⊙External IF loop-through, Front panel -20dB test point capability. ⊙Adjustable RF output level, A/V level, Video and audio modulation index. ⊙Agile selection of any channel between : 45-870MHz. Systems: B, G, I, D, K, M, N, L.
★Specification
| Items | Units | Specifications | | |
| RF | ||||
| Frequency range | MHz | 47~870 NTSC: CH2~158. PAL-B/G: E2~E12,E21~E69,S2~S41. PAL-D/K: DS1~DS56, Z1~Z42. | ||
| Output level | dBµV | ≥113 | ||
| Return loss | dB | ≥12 | ||
| Vision carrier frequency deviation | KHz | ≤±5 | ||
| Out-of-Band Output Rejection | dB | ≥60 | ||
| Output level adjusting range | dB | 0 … -20 | ||
| Video | ||||
| Video S/N | dB | ≥50 | ||
| Modulation depth | % | ≥87.5 | ||
| In-band flatness | dB | ≤±1.2 | ||
| Differential gain | % | ≤5 | ||
| Differential phase | ° | ≤5 | ||
| Chrominance luminance delay | ns | ≤45 | ||
| Audio | ||||
| Audio S/N | dB | ≥60 | ||
| Audio distortion | % | ≤1 | ||
| Audio modulation frequency-offset | KHz | ±50 | | |
| Power | | |||
| Power supply | V | AC110~260 | | |
| Power consumption max. | W | 20 | | |
| Physical | | |||
| Dimension | mm | 483×130×44 | ||
