Basic Info.
Model NO.
FWT-1550DT-10
Name
1550nm Direct Modulation Optical Transmitter
Wavelength
1550+-10nm
Optical Modulation
Intensity Modulated
Optical Output Power
10MW
Bandwidth
47 ~1000 MHz
Optical Connector Type
FC/APC or Sc/APC
Input Level
78 ~ 88dBuV
Working Temperature
0 ~ 50 Degree
C/CTB
65dB
C/Cso
65dB
Power Supply
110/220VAC or 48VDC
Warranty
2 Years
Transport Package
590*590*170mm by Strong Carton Based on 1PCS
Specification
CE, ROHS
Trademark
Fullwell (can customised)
Origin
Zhejiang Hangzhou
HS Code
8517622100
Production Capacity
200 ~ 500PCS/Month
Packaging & Delivery
Package Size
62.00cm * 45.00cm * 18.50cm
Package Gross Weight
5.600kg
Product Description

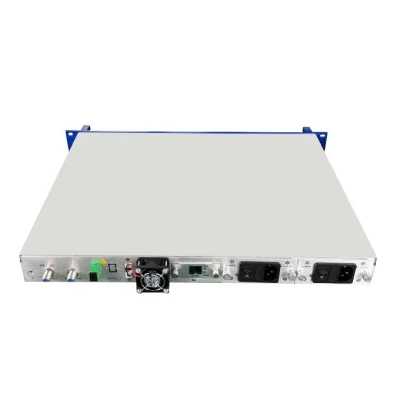

FWT-1550DT Series
1550 nm Advanced Type Directly Modulated Optical Transmitters
Product Description FWT-1550DT series of advanced 1550nm directly modulated optical transmitter, is mainly used in overlay insert systems to implement high-value and multi-functional local designed value-added services such as self-run programs. Low chirp, the output is the ITU standard wavelength, the RF driver adopts a self-developed RF predistortion circuit and a built-in perfect microcomputer automatic monitoring system to ensure the excellent performance index of the device.
FWT-1550DT series of advanced 1550nm directly modulated optical transmitter, suitable for 10 ~ 20 kilometers long distance transmission.
Product feature
1. Top quality: The low chirp, high linearity DFB laser, and RF pre-correction circuit are used to keep the C / CTB, C / CSO, and C / N indexes in the best state.
2. Transmission range: 10 ~ 20 kilometers for short distance transmission.

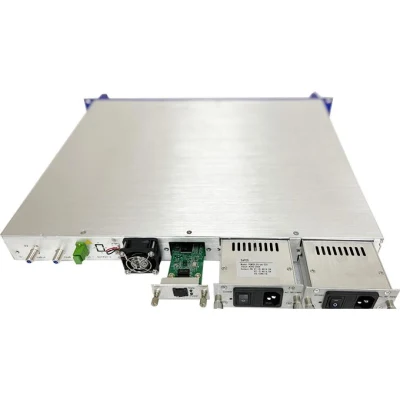

3. Reliability: 19" 1U standard rack, built-in high-performance 1 + 1 hot backup power supply, which can work at 86 ~ 265Vac city network. MS automatic switching, and chassis temperature automatic control.
4. Excellent performance-price ratio: suitable for FTTH triple play CATV from headend to end user.

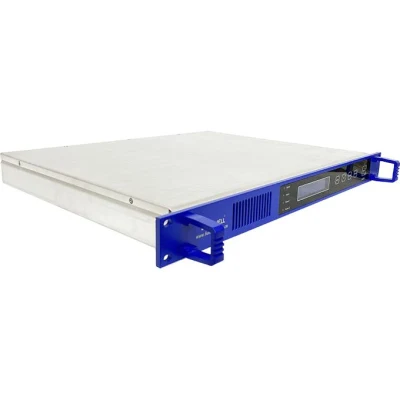

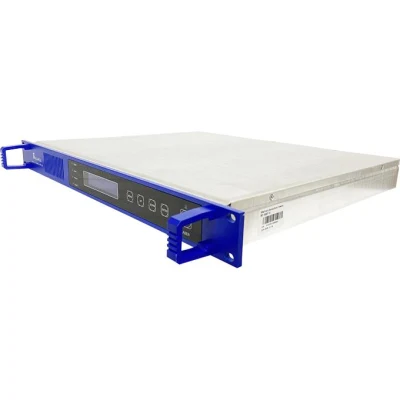

5. Intuitive: The laser is the most expensive component of the device. The built-in microprocessor software monitors the working status of the laser, and the working parameters are displayed on the panel LCD.
6. Network management type: SNMP network management, can realize the network management WEB monitoring function.
7. Can be customized 2 outputs, optical power 5 ~ 6dBm output.
Package Information
