Basic Info.
Model NO.
ZD-PA-100/1500M-50W
Frequency Band
Customized
Working Voltage
28V
Output RF Port
SMA-F
Working Current
6A
Transport Package
by Box
Specification
210*101*28.5MM
Trademark
ZD TECH
Origin
China
HS Code
8517709000
Production Capacity
2000pieces/Month
Product Description

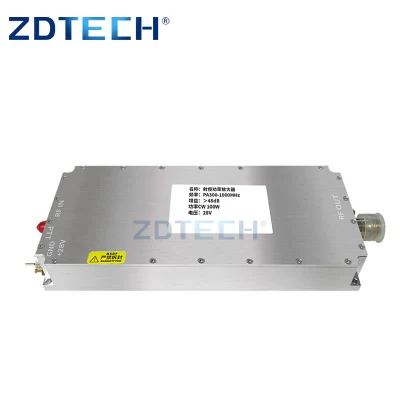

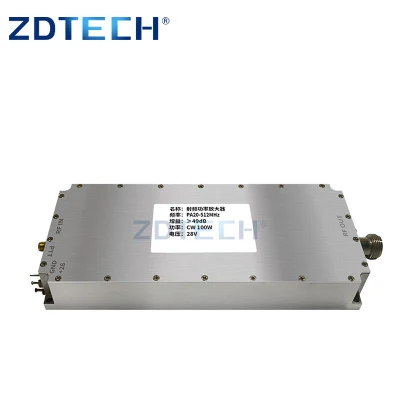

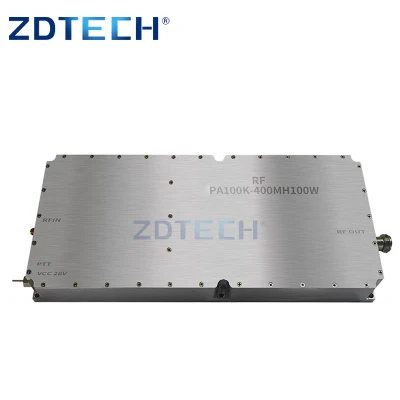

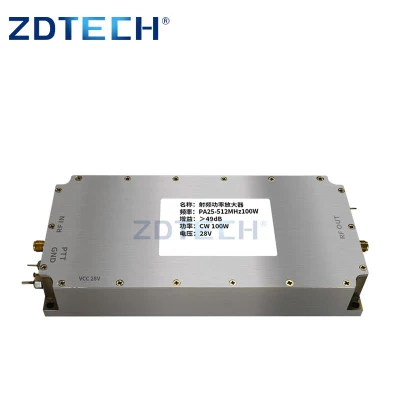

100-1500MHz-50W Power Amplifier
1.RF technical parameters
| Frequency(MHz) | 100-1500MHz |
| Gain | ≥46dB |
| Input Power | 3±2dBm |
| Max Output | +10dBm |
| Output CW saturation power | ≥50W |
| In-band gain flatness | ≤4±1dB |
| Temperature protection | 80 degree protection |
| Operating current | ≤6A |
| Input VSWR | ≤2.0 |
| Hash rejection | ≥65dBc |
| Harmonic rejection | ≥-8Bc |
| RF input interface | SMA-F |
| RF output connector | SMA-F |
| 28V power supply connector | Feedthrough capacitor |
| Amplifier PTT switch port | Amplifier default off, 3.3~5V on |
| VOC power supply reference | 28V/6A |
| VCC Maximum Voltage | +32V |
| Dimensions without connector | ≤210*101*28.5mm |
| Operating Temperature | -25ºC~+55 |
| Installation | Heat sink is required for amplifier testing |
| Note | For too wide bandwidth limit, only few freqyency points can output 35Watt |
