Product Description

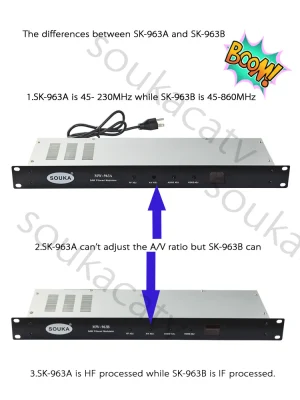

The SK-963B is a cost-saving RF modulator. It's fixed channel and adjacent one with professional performance. It's with SAW flitering and available for any cable channel from 45-860MHz. This unit offers high performance, low cost and compact design.
1. IF process with excellent performance
2. SAW filtering for maintenance free adjacent channel configuration
3. Phase lock loop frequency control prevents frequency drift
4. LED Display. Front panel control for easy installment
5. Excellent video and audio linearity for superior picture quality
6. Standard 19" housing for standard rack
7. PAL, NTSC and SECAM optional
8. Excellent value for your investment dollar
| OUTPUT | ||
| RF | Output Frequency | 45~860MHz any one channel |
| Output Connector | F Connector | |
| Output Level | 115 dBµV (Adj.) | |
| Test Point | -20 dB ±3dB | |
| A / V Ratio | -11 ~ -18 dB (Adj.) | |
| Frequency Stability | ±10KHz | |
| Output Impedance | 75 Ohms | |
| INPUT | ||
| VIDEO | Video Input Level | 0.6-1.5Vp-p (87.5% Modulation) |
| Input Connector | Yellow RCA Jack | |
| Video C/N | 60dB | |
| AUDIO | Input Level | 0.8Vp-p(25KHz Peak Deviation) |
| Input Connector | White RCA Jack | |
| GENERAL | ||
| POWER AND SIZE | Voltage | AC 110 ~ 220V |
| Power Consumption | 10W | |
| Dimension | 19" x 1.75" x 6.6" | |
Q1: How to get a sample?
A1: Sample order is acceptable. Please contact us and make sure what sample do you need.
Q2: How about the OEM/ODM service?
A4: We provide all kinds of OEM/ODM service,
For example Logo printing on housing, Customized packing, Software Customization. Please contact with us to make sure the detail things before placing order.
Q3: What is your Lead time and method of Shipment?
We are factory, adequate inventory, Generally delivery within 3-5 workdays after payment confirmed, all goods have to go through 100% QC testing and Aging.
But please confirm the exact delivery time with us as different products and different quantities will have different leading times.
Shipping by International express TNT.Fedex,DHL,UPS door to door service, it will take 5-9 workdays to your designated address.
Q4: What's your Payment method supported?
We accept T/T bank transfer, Paypal(Credit Card), Western Union, MoneyGram,etc.
Q5: How about the packing and shipping?
Normally, we have a carton for packaging. If you have any other special requirements, please feel free to contact us.
