Product Description

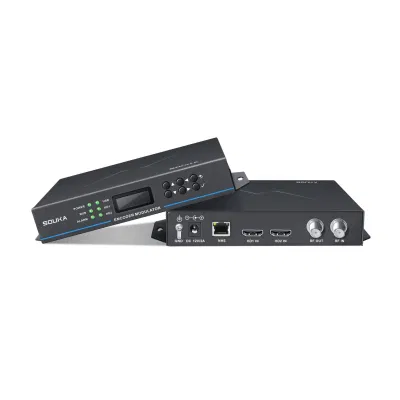

It is a multi-channel digital TV encoder modulator.
The product supports encoding, multiplexing and modulating 2 HDMI signals into 1 RF signal output.
It adopts with a RF loop input port which is convenient for users to mix multiple SKD211X outputs or mix with antenna signals.
It is perfect for hotels, hospitals, home entertainment and monitoring, also other digital CATV headend system as well.
- Support 2 HDMI signals input
- Support multi-standard digital systems
- Support TS re-multiplexing
- Support H.264 encoding
- Support 1 external RF signal loop in and internal modulation signal mixed into 1 RF output
- Frequency agile design, RF output frequency can be set freely within the frequency range

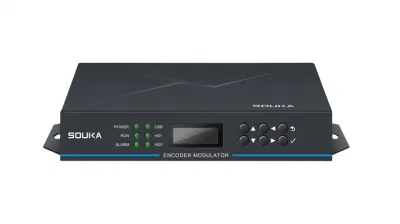

- Easy configuration by buttons and LCD on front panel
| Product | Module | Output |
| SKD211X Digital TV Encoder Modulator | SKD2111 | DVB-C(J.83A) |
| SKD2112 | DTMB | |
| SKD2115 | ISDB-T | |
| SKD2116 | DVB-T | |
| SKD2118 | J.86B,8VSB |
| Parameters | |||
| HDMI | Video Encoding | Standard | H.264 |
| Channels | 2CH | ||
| Resolution | 1920*1080 60P,1920*1080 50P,1920*1080 60i, 1920*1080 50i,1280*720 60P,1280*720 50P | ||
| Bitrate | 1-19.5Mbps | ||
| Audio Encoding | Standard | MPEG 1 Layer II | |
| Sampling Frequency | 48KHz/44.1 KHz/32 KHz | ||
| Bitrate | 384Kbps | ||
| USB | Interface Standard | USB2.0 | |
| Video format | TS, MPG | ||
| J.83A | Standard | Annex A | |
| Constellation | 16QAM,32QAM,64QAM,128QAM,256QAM | ||
| MER | ≥40dB | ||
| RF Frequency Range | 50-999.999MHz, Min. step of 1KHz | ||
| Output Level | ≥100dBuV(range 0-20dB, step of 0.5dB) | ||
| Out-of-band Suppression | ≥60 | ||
| Symbol Rate | 5-6.900Msps | ||
| J.83B | Standard | Annex B | |
| Constellation | 64QAM,256QAM | ||
| MER | ≥40dB | ||
| RF Frequency Range | 50-999.999MHz, Min. step of 1KHz | ||
| Output Level | ≥85dBuV(range 0-20dB, step of 0.5dB) | ||
| Out-of-band Suppression | ≥60 | ||
| Cable Standard | HRC, IRC or STD | ||
| Symbol Rate | 5-6.900Msps | ||
| 8VSB | Standard | ATSC A/53 | |
| MER | ≥40dB | ||
| Output Level | ≥100dBuV(range 0-20dB, step of 0.5dB) | ||
| DAB-T | Standard | DVB-T COFDM | ||
| Bandwidth | 6/7/8MHz | |||
| Constellation | 4QAM, 16QAM, 64QAM | |||
| Code Rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||
| Transmit Mode | 2K,4K,8K | |||
| MER | ≥40dB | |||
| RF Frequency Range | 50-999.999MHz, Min. step of 1KHz | |||
| Output Impendence | 75 | |||
| Output Level | ≥100dBuV(range 0-31.5dB,step of 0.5dB) | |||
| Out-of-band Suppression | ≥60dB | |||
| ISDB-T | Standard | ARIB STD-B31 | ||
| Bandwidth | 6MHz | |||
| Constellation | DQPSK, QPSK, 16QAM, 64QAM | |||
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||
| Transmit Mode | 2K, 4K, 8K | |||
| MER | ≥42dB | |||
| RF Frequency Range | 50-999.999MHz, Min. step of 1KHz | |||
| Output Impendence | 75 | |||
| Output Level | ≥100dBuV(range 0-20dB,step of 0.5dB) | |||
| Out-of-band Suppression | ≥60dB | |||
| DTMB | Standard | GB20600-2006 | ||
| FFT | 1,3780,1+pilot | |||
| MER | ≥40dB | |||
| FEC | 0.4,0.6,0.8 | |||
| Interleave Mode | 420,595,945,420var,945var | |||
| Sync Frame | 240,720 | |||
| Constellation | 4QAM-NR,4QAM,16QAM, 32QAM,64QAM | |||
| RF Frequency Range | 50-999.999MHz, Min. step of 1KHz | |||
| Output Level | ≥100dBuV(range 0-31.5dB,step of 0.5dB) | |||
| Output Impendence | 75 | |||
| Out-of-band Suppression | ≥60dB | |||
| Power Supply | Input Voltage | DC 12V | ||
| Max. Current | 1200mA | |||
| Physical Parameters | ||||
| Dimension | 176*123*28mm | |||
| Operating Temperature/Humidity | -10ºC~45ºC,40%~70% | |||
| Storage Temperature/Humidity | -40ºC~70ºC,40%~95% | |||
