Product Description

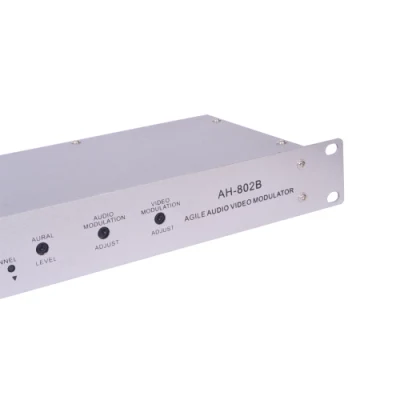

The AH-802B is a commercial grade, SAW filtered, and frequency agile modulator. Setup and tuning are easy and straightforward taking advantage of the front panel access to all level controls and indicators. The AH-802B agile modulator provides system operators the engineering ease and flexibility associated with new headend deployments, upgrades and system maintenance
- SAW filtered for maintenance free adjacent channel configuration
- 55dBmV RF output level
- Phase lock loop frequency control
- None-volatile memory maintains channel selection in event of power loss

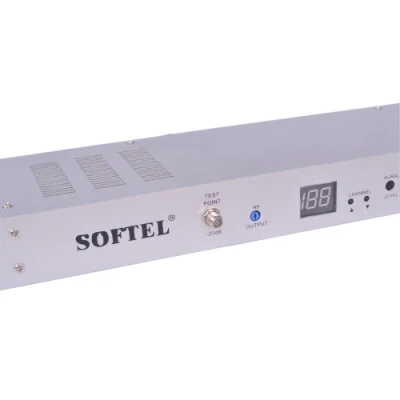

- Three-digit blue LED display and controls for convenient monitoring and operation
- Switching power supply for installation flexibility and precise voltage regulation
- Available in NTSC or PAL BG/DK configurations
| RF | Output Frequency | 45~860MHz any channel |
| Output Connector | F Connector | |
| Output Level | 115 dBµV (Adj.) | |
| Test Point | -20 dB ±3dB | |
| A / V Ratio | -11 ~ -18 dB (Adj.) | |
| Frequency Stability | ±10KHz | |
| Output Impedance | 75 Ohms | |

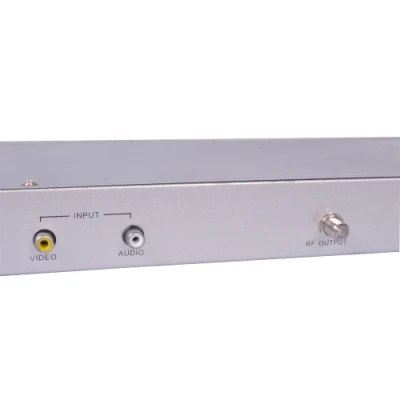

| VIDEO | Video Input Level | 0.6-1.5Vp-p (87.5% Modulation) |
| Input Connector | Yellow RCA Jack | |
| Video C/N | 60dB | |
| AUDIO | Input Level | 0.8Vp-p(25KHz Peak Deviation) |
| Input Connector | White RCA Jack | |

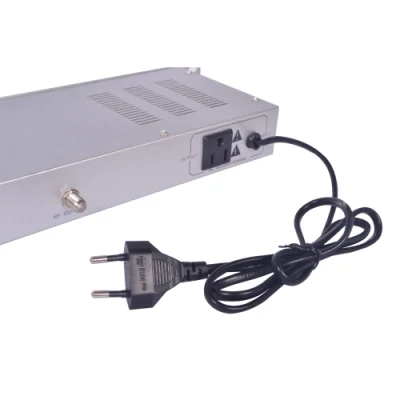

| GENERAL | Voltage | AC 110 ~ 220V |
| Power Consumption | 10W | |
| Dimension | 19" x 1.75" x 6.6" |
