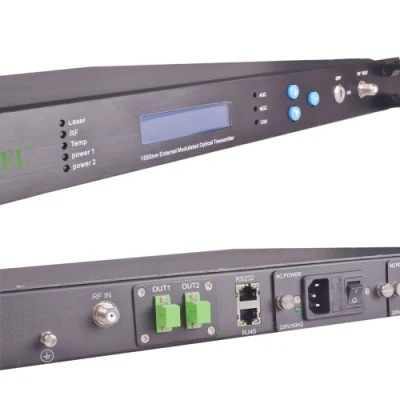

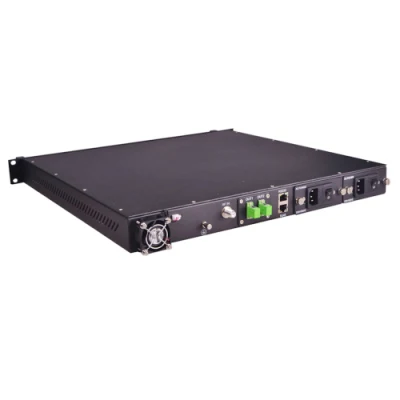

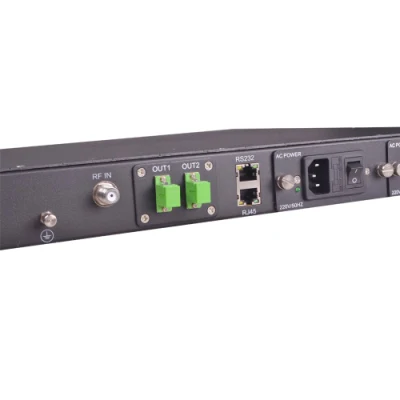

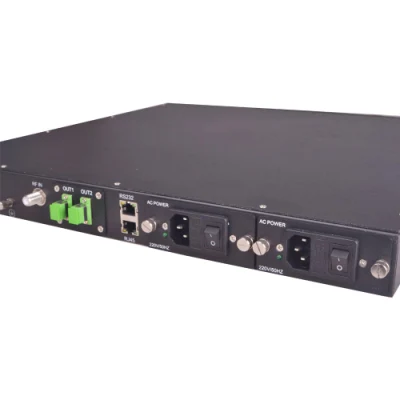

China product 1550nm/1310 FTTH CATV Optical Transmitter with AGC
ST1550 series Advanced type Externally Modulated CATV optical transmitter adopts low noise, narrow bandwidth, and continuous wave laser as its light source. It uses high linearity LiNbO3 external modulator to modulate signal. It eliminates the Chirp Effect of 1550nm direct modulation laser. Due to adopting owned system optimized control technology & using top grade key parts , the machine's technique performance index achieves the standard of same advanced products in the world totally.
PARAMETERS FOR 1 OUTPORT
| Performance | Index | Supplement | |||
| Optic feature | Operating wavelength | (nm) | 1540~1563 | ||
| ITU-TG.692 | |||||
| Wavelength adjustable range | (nm) | ±1.6 (±200GHz) | |||
| Wavelength adjustable mode | ±0.05nm stepping | ||||
| Linewidth | (MHz) | ≤1 | FWHM(Δλ) | ||
| Side mode suppression ratio | (dB) | ≥45 | SMSR | ||
| Equivalent noise intensity | (dB/Hz) | ≤-160 | RIN (20~1000MHz) | ||
| Output power | (dBm) | 1×5 | Optional 1×3, 1×6, 1×7 | ||
| Return loss | (dB) | ≥55 | |||
| optical fiber connector | SC/APC | Optional FC/APC,LC/APC | |||
| RF feature | Work bandwidth | (MHz) | 47-862 | 47~1000, 47~1080 optional | |
| Input level | (dBmV) | 18~28 | AGC | ||
| Flatness | (dB) | ≤±0.75 | 45~862MHz | ||
| ≤±1.5 | 862~1000MHz (optional) | ||||
| Return loss | (dB) | >16 | |||
| Input impedance | (Ω) | 75 | |||
| RF port | F-Female | ||||
| Link feature | Transmit channel | PAL-D/60CH | PAL-D/99CH | ||
| CNR1 | (dB) | ≥52 | ≥50.5 | Back to back | |
| CNR2 | (dB) | ≥50.5 | ≥49 | 50Km optical fiber, 0dBm receive | |
| CTB | (dB) | ≤-65 | ≤-65 | ||
| CSO | (dB) | ≤-65 | ≤-65 | ||
| SBS restrain | (dBm) | 13 | |||
| General feature | SNMP network management interface | RJ45 | |||
| Communication interface | RS232 | ||||
| Power supply | (VAC) | 90~265 | 50/60Hz | ||
| (VDC) | -48 | 30~72 | |||
| Power Consume | (W) | ≤50 | Single power works | ||
| Operating temp. | (°C) | 0~50 | Machine temp. control automatically | ||
| Storage temp. | (°C) | -40~85 | |||
| Operating relative humidity | (%) | 5~95 | |||
| Size | (") | 19×14.5×1.75 (W)x(D)x(H) | |||
PARAMETERS FOR 2 OUTPORT
| Performance | Index | |||||||
| Wavelength ADJ. Range | (nm) | ±1.6 (±200GHz) | ||||||
| Wavelength ADJ. Mode | ±0.05nm stepping | |||||||
| Side mode suppression ratio | (dB) | ≥45 | ||||||
| Equivalent noise intensity | (dB/Hz) | ≤-160 | ||||||
| Input level | (dBmV) | 18~28 | ||||||
| Input impedance | (Ω) | 75 | ||||||
| RF connector | F-Female | |||||||
| SNMP NM interface | RJ45 | |||||||
| Communication interface | RS232 | |||||||
| Linewidth | (MHz) | Typ.=0.65 | ||||||
| Output power | (dBm) | 2*3,2*5, 2*6, 2*7, 2*9, 2*10, 2*11 optional | ||||||
| Return loss | (dB) | ≥50 | ||||||
| Link feature | Transmit channel PAL-D/60CH | CNR1 | (dB) | ≥53 | ||||
| CNR2 | (dB) | ≥51.5 | ||||||
| CTB | (dB) | ≤-65 | ||||||
| CSO | (dB) | ≤-65 | ||||||
| Transmit channel PAL-D/99CH | CNR1 | (dB) | ≥51.5 | |||||
| CNR2 | (dB) | ≥49.5 | ||||||
| CTB | (dB) | ≤-65 | ||||||
| CSO | (dB) | ≤-65 | ||||||
| SBS restrain adjustable | (dBm) | 13~18 | ||||||
| Optical fiber connector | SC/APC | |||||||
