Crystal Substrate Linbo3 Lithium Niobium Oxide Lithium Niobate

Get high-quality Crystal Substrate Linbo3 Lithium Niobium Oxide Lithium Niobate products directly from our factory. Shop now for top-notch materials!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
FW-CRYSTAL
Typical Cutting
128°y/64°y /41°y /Yz-Cut
Transport Package
Single Piece or 25 PCS
Specification
2-6 inch
Trademark
FW
Origin
China
Production Capacity
40000PCS/Month

Product Description

Lithium Niobate (LiNbO3) Wafer (2inch-6inch)

1. What is Lithium Niobate ?
LiNbO3 is a ferroelectric material with variety of applications.
A great variety of devices has been developed based upon this material having unique electro-optical, photoelastic, piezo-electric and non-linear properties combined with good mechanical and chemical stability and wide transparency range. For instance, in optical modulation and Q-switching large electro-optic coefficients of lithium niobate infrared wavelengths is used. By-turn, the large nonlinear (d) coefficient of LiNbO3 allows very successfully use this material in optical parametric oscillaton and difference frequency mixing to generate tunable infrared wavelengths and second harmonic.

It is widely used as frequency doublers for wavelength over 1 micron and optical parametric oscillators (OPOs) pumped at 1064 nm as well as quasi-phase-matched (QPM) devices.

LiNbO3 is also one of the most attractive materials for optoelectronics. A great variety of devices has been developed based upon this material having unique electro-optical, photoelastic, piezo-electric and non-linear properties combined with good mechanical and chemical stability and wide transparency range.

2. Application: surface acoustic wave filter, isolator, narrow-band filter, sensor, the photon tunable filter, acousto-optic device, Optical gyroscope, optical waveguide, photoswitch, light modulation direction coupler, Optical modulator, Interferometer gyrator, High-speed long-distance communication devices and double-frequency device.

The Application of SAW devices are especially used in mobile phones as dielectric filters band-pass filter, RF filter and IF filter. broadband filters, include radar technology, remote controls for home electronics,


3.Detailed specification of LiNbO3 Wafer

Orientation X-Axis, Y-Axis, Z-Axis, Y-Axis 128°/64°/41°/36° Rotated
Orientation Tolerance ±0.2°
Diameter 50.8±0.1mm (2 inches), 76.2±0.2mm (3 inches), 100±0.3mm (4 inches), 150±0.5mm (6 inches)
Thickness 500±25µm,  660±25µm,  710±25µm,  790±25µm,  1000±25µm
Primary Flat Length 16.0±1.5mm,  22.0±2.0mm,  32.5±2.5mm
TTV ≤30µm
BOW ≤30µm
Front Surface Ra < 1nm
Back Surface Fine ground or polished (Ra<1nm)


4. Related LiNbO3 Optical Wafer we can supply
  optical grade quality wafers
  Saw grade quality wafers
  MgO doped LiNbO
  Fe doped LiNbO3


Innovation point: Through the growth equipment modification,we create simulation of crystal growth system and can design crystal shape. The computer chip control the changing of crystal shape according to crystal growth status, through the processing of precision sensor signals. We self-design a set of graded composite temperature structure. With the help of it, the temperature gradient in crystals, melt and the solid liquid interface reach the good state for optical crystal growth.

Product Pictures:

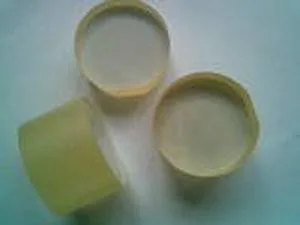

Crystal Substrate Linbo3 Lithium Niobium Oxide Lithium Niobate

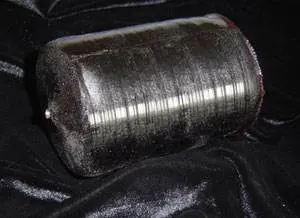

Fe Dopped LN ingot

Crystal Substrate Linbo3 Lithium Niobium Oxide Lithium Niobate

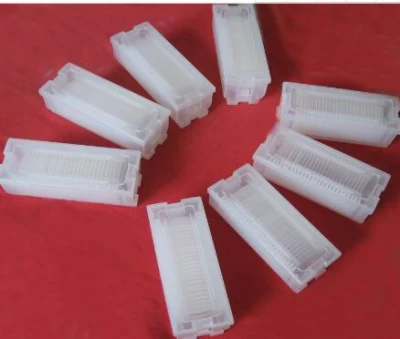

Ingot and wafers

Crystal Substrate Linbo3 Lithium Niobium Oxide Lithium NiobateCrystal Substrate Linbo3 Lithium Niobium Oxide Lithium NiobateCrystal Substrate Linbo3 Lithium Niobium Oxide Lithium Niobate
