Customized 6-18GHz 53dB Gain 200W High Power RF Solid State Power Amplifier

Get the best performance with our Customized 6-18GHz 53dB Gain 200W High Power RF Solid State Power Amplifier. We are a factory specializing in high power RF amplifiers.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SWPA060180G5353R
Operating Frequency
6-18GHz
Max Input Power
+10 dBm
Output Power (Psat)
200 Watt
Small Signal Gain Flatness
±1.5 dB
Transport Package
Carton
Trademark
SWT
Origin
China
Production Capacity
3000 / 3 Months

Product Description

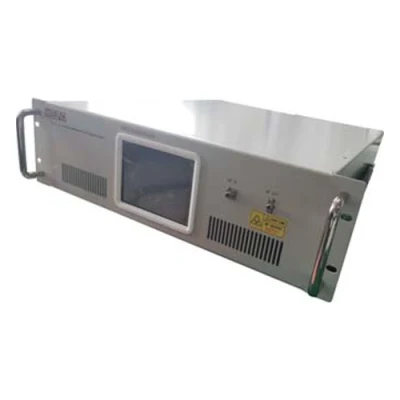

Customized 6-18GHz 53dB Gain 200W high Power RF Solid State Power Amplifier

Customized 6-18GHz 53dB Gain 200W High Power RF Solid State Power Amplifier

ELECTRICAL SPECIFICATIONS@25˚C:
Parameter  Min Typical Max Units
Frequency Range 6   18 GHz
Gain 53     dB
Small Signal Gain Flatness   ±1.5   dB
Noise Figure       dB
Output Power (Psat) 200     Watt
Spurious   -60   dBc
Harmonics   -10   dBc
Input VSWR     2:1 Ratio
Input Voltage   220VAC
Human-computer Interface touch screen LCD:FWD Power,Temperature,Voltage,Current
Program Control Interface RS232 and Ethernet
Note:
1.Input Power;0dBm.

2.Output Power Range:30dB(20dB@Psat output),step 1dB. 3.Forward power:>40dB(with 40dB directional coupler).
4. Over Temperature Protection; Over Voltage Protection; Over Current Protection;Over REV  VSWR  Protection;Enable;Modulation.
5. Detection Function:FWD/REV  Power;Coupling.
6. Forced Air  Cooling.

ENVIRONMENTAL RATINGS:
Parameter  Min      Typical   Max       Units
Max Input power   +10   dBm
Operating Temperature -10   +50 ˚C
Non-operating Temperature -20   +70 ˚C
Relative humidity (non-condensing)   90   %
Altitude   TBD   feet
Shock / Vibration   TBD

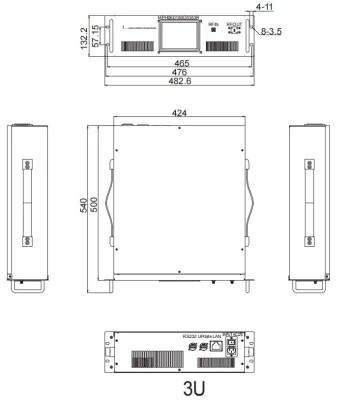

MECHANICAL SPECIFICATIONS:
Parameter Value Limits Units
Dimensions 3U   Milimeter
Weight 12   Kg
RF Connectors Input SMA-F
RF Connectors output WRD500
Impedance     ohms

Customized 6-18GHz 53dB Gain 200W High Power RF Solid State Power Amplifier

Customized 6-18GHz 53dB Gain 200W High Power RF Solid State Power Amplifier


Customized 6-18GHz 53dB Gain 200W High Power RF Solid State Power Amplifier


Customized 6-18GHz 53dB Gain 200W High Power RF Solid State Power Amplifier


Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave  communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.

In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.



Customized 6-18GHz 53dB Gain 200W High Power RF Solid State Power Amplifier


Customized 6-18GHz 53dB Gain 200W High Power RF Solid State Power Amplifier


Q&A:

Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?

Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to your problems.


Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.



Q4.Shipment Date

Sample 20 business days
≤50 pcs 60  business days
>50 pcs 90 business  days
>200 pcs Negotiate

Q5: Delivery Date of the sample by DHL/FedEx
USA/Canada/Europe/Asia 3-5 days
Middle East/Latin American 5-7 days
African 3-7 days
