Customized Lithium Niobate Substrate X-Cut Orientation 110 with Double Sides Polished

Get the best performance with our Customized Lithium Niobate Substrate X-Cut Orientation 110 with Double Sides Polished. We are a factory specializing in high-quality substrates.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
FW-LN
Transport Package
Single Piece or 25 PCS
Specification
customerised
Trademark
FineWin
Origin
China

Product Description

Customized Lithium Niobate Substrate X-Cut Orientation 110 with Double Sides Polished
LiNbO3 is a ferroelectric material with variety of applications.
A great variety of devices has been developed based upon this material having unique electro-optical, photoelastic, piezo-electric and non-linear properties combined with good mechanical and chemical stability and wide transparency range. For instance, in optical modulation and Q-switching large electro-optic coefficients of lithium niobate infrared wavelengths is used. By-turn, the large nonlinear (d) coefficient of LiNbO3 allows very successfully use this material in optical parametric oscillaton and difference frequency mixing to generate tunable infrared wavelengths and second harmonic.

It is widely used as frequency doublers for wavelength over 1 micron and optical parametric oscillators (OPOs) pumped at 1064 nm as well as quasi-phase-matched (QPM) devices.

LiNbO3 is also one of the most attractive materials for optoelectronics. A great variety of devices has been developed based upon this material having unique electro-optical, photoelastic, piezo-electric and non-linear properties combined with good mechanical and chemical stability and wide transparency range.

Application: surface acoustic wave filter, isolator, narrow-band filter, sensor, the photon tunable filter, acousto-optic device, Optical gyroscope, optical waveguide, photoswitch, light modulation direction coupler, Optical modulator, Interferometer gyrator, High-speed long-distance communication devices and double-frequency device.

Characteristics of optical grade LiNbO3 crystal:

1,crystal structure: trigonal system

2,space groups:C36(R3C)

3,melting point: 1260ºC

4,Moh's hardness:~4.8

5,density:4.46g/cm3

6,coefficient of thermal expansion: 16.7(∥a) 2(∥a)

7,Optical transparency range:370~5000nm

8,refractive index:(633nm)n0=2.286   ne=2.200

9,refractive index gradient:(633nm)≤5×10-5

10,light transmission:(633nm)≥68%

11,orientation:X±0.1°

12,size:Φ2-4''×40~80mm

Innovation point:
Through the growth equipment modification,we create simulation of crystal growth system and can design crystal shape. The computer chip control the changing of crystal shape according to crystal growth status, through the processing of precision sensor signals. We self-design a set of graded composite temperature structure. With the help of it, the temperature gradient in crystals, melt and the solid liquid interface reach the good state for optical crystal growth.

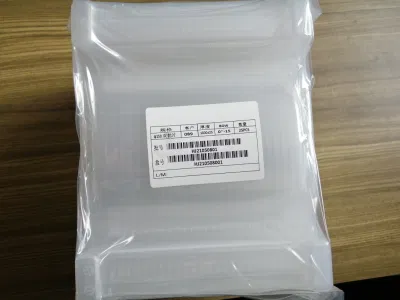

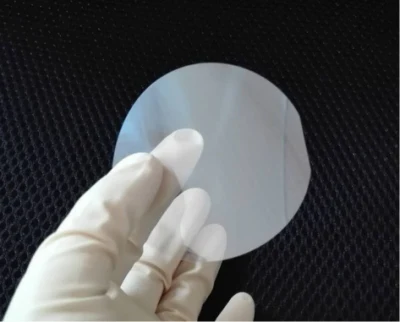

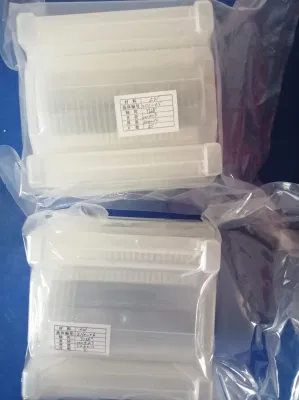

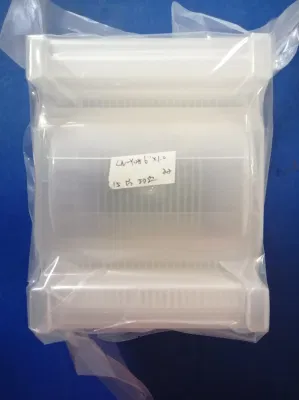

Product Pictures:
Customized Lithium Niobate Substrate X-Cut Orientation 110 with Double Sides Polished
Customized Lithium Niobate Substrate X-Cut Orientation 110 with Double Sides Polished



Customized Lithium Niobate Substrate X-Cut Orientation 110 with Double Sides Polished

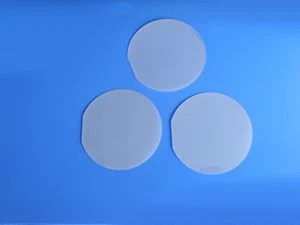

Ingot and wafers

Overseas Exhibition
Customized Lithium Niobate Substrate X-Cut Orientation 110 with Double Sides PolishedCustomized Lithium Niobate Substrate X-Cut Orientation 110 with Double Sides Polished
FAQ:

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, TNT, UPS, EMS etc.

   (2) If you have your own express account, it's great.If not,we could help you ship them.

 Q: How to pay?

A: T/T, Paypal, etc

Q: What's your MOQ?

A:  (1) For inventory, the MOQ is 5pcs.

   (2) For customized products, the MOQ is 10pcs-25pcs.

Q: What's the delivery time?

A:  (1) For the standard products

          For inventory: the delivery is 5 workdays after you place the order.

          For customized products: the delivery is 2 or 3 weeks after you place the order.

     (2) For the special-shaped products, the delivery is 4 or 6 workweeks after you place the order.

Q: Do you have standard products?

A: Our standard products in stock.

Q: Can I customize the products based on my need?

A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.
