Digital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSC

Get the best Digital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSC at our factory. Highest quality and competitive prices. Buy now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Detailed Photos
  • Specification
  • Company Profile
  • Certifications
  • Exhibition
  • FAQ
Overview

Basic Info.

Model NO.
SKD272X
Product Name
Digital Modulator
Support Standard
ISDB-T, DVB-T, Dvbc(J.83A/C), Dtmb, ATSC+J.83b/D
Encoding Format
MPEG 2
Chasis
4ru Chassis Integrated with Power
RF Output
>105dBuV(0-20dB
RF Range
50~1000MHz by a Step 1MHz
Transport Package
Carton
Specification
53*31*25CM
Trademark
Souka/Support OEM
Origin
China
HS Code
8529901011
Production Capacity
1000

Product Description

Digital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSC

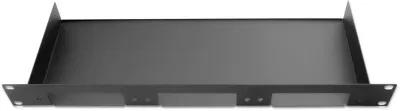

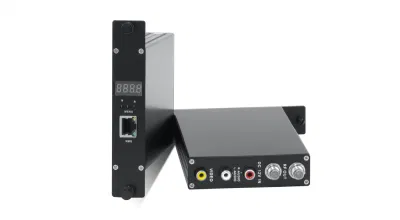

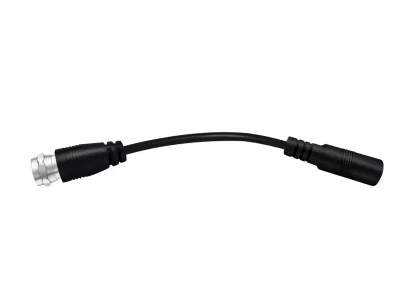

Detailed Photos

















Digital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSCDigital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSC
Model SKD-27M, 16 IN 1 PRE-SET DIGITAL MODULATOR SYSTEM


The SKD272X is designed and manufactured completely with in-house technology from its HD modulator, capable of modulating the stereo audio and video source to all standard digital signals.

With SKD-M27 base unit, it can be installed into a small headend system for small projects.

The SKD272X is a cost-effective but professional encoder modulator designed in a compact size.

It can convert different digital signals into RF signal.

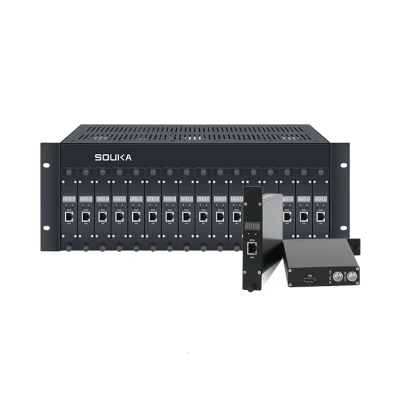

With the chassis SKD2700M, it can amount up to 16 pieces and deliver 16 RF signal by one RF output port.
It is perfect for hotels, hospitals, schools, jails, surveillance, entertainment venues, etc..

FEATURES:

1. Support MPEG 2 video encoding and MPEG-1 Layer II audio encoding

2. Support 16 HD signal input and output in 1 RF combined signal

3. Output frequency up to 1000MHz

4. No need combiner cabling

5. Output level 105dBμV


Specification

INPUT
Input Connector RCA JACK
VIDEO Encoding MPEG 2
Input Resolution PAL 720*576
NTSC 720*480
Bitrate 2 ~ 18 Mbps
AUDIO Encoding MPEG 1 Layer II
Sample Rate 48KHz
Bitrate 384kbps
OUTPUT SETTING
Output type ATSC DVB-C J.83A DVB-C J.83B DVB-T DTMB ISDB-T
Standard ATSC A/53 Annex A Annex B COFDM GB20600-2006 -
Bandwidth 6M 8M 6M 6M, 7M, 8M 8M
Constellation 8VSB 16QAM, 32QAM, 64QAM, 128QAM, 256QAM 64QAM
256QAM
QPSK
16QAM
64QAM
4QAM, 16QAM, 32QAM, 64QAM -
Other settings - Symbol rate: 3 ~6.952 Ms/s
Code rate

Guard Interval
- Code rate,
Guard Interval,
2K-8K
Interleaving,
Rate Code,
Carrier type,
Sync Frame,
PH Phase
-
OUTPUT
RF Output Level ≥ 30dBmV
Output Frequency Range 50 ~ 999.999MHz
Out-band Rejection ≥ 60dB
MER Typ. 38 dB
SYSTEM
Management Control Keys; NMS; LCN Insertion YES
Language English Upgrade NMS
GENERAL
Power Supply DC12V 1A Power Consumption

Company Profile

    Dingshengwei Electronics Co.,Ltd (DSW) is dedicated to design, manufacture and sales of CATV analog,digital and IPTV modulator with our brand name SOUKA.
DSW obtained ISO9001:2008 certificate authorized by CQC. We have 100 in-house skillful workers, which ensures the punctual delivery date.

    And a professional engineer team made up of 10 senior RF engineers and 6 IT engineers to fulfil precise management over all projects honored by our customers.

As one of the most reliable suppliers in this field, we continually spare no efforts in developing DSW into a world recognized brand with trustworthy and solid reputation. DSW sincerely invites you to enjoy the fascinating experience of modern technology and excellent customer service provided for you by our professional staff.

At the forefront of technological trends and developments, DSW is with you each step of the way. Our products cover in analog modulator, digital modulator and IPTV device at the meanwhile we also can provide your a full soluiton in analog,digital and IPTV system.


    Our mission is making easy and efficient products. Our values are always to be reliable and innovative. We never stop to bring more products.
Digital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSCDigital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSC
Digital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSCDigital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSCDigital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSC

Certifications



Exhibition

Digital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSCDigital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSCDigital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSCDigital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSCDigital Headend MPEG2 Encoding HD SD to RF Encoder Modulator with DVB-T DVB-C Isdbt Dtmb ATSC

FAQ

Q1: How to get a sample?
Sample order is acceptable. Please contact us and make sure what sample do you need.

Q2: How about the OEM/ODM service?
We provide all kinds of OEM/ODM service,
For example Logo printing on housing, Customized packing, Software Customization. Please contact with us to make sure the detail things before placing order.

Q3: What is your Lead time and method of Shipment?
We are factory, adequate inventory, Generally delivery within 3-5 workdays after payment confirmed, all goods have to go through 100% QC testing and Aging.
But please confirm the exact delivery time with us as different products and different quantities will have different leading times.
Shipping by International express TNT.Fedex,DHL,UPS door to door service, it will take 5-9 workdays to your designated address.

Q4: What's your Payment method supported?
We accept T/T bank transfer, Paypal(Credit Card), Western Union, MoneyGram,etc.

Q5: How about the packing and shipping?
Normally, we have a carton for packaging. If you have any other special requirements, please feel free to contact us.
