Product Description
DX-2800 Prominent Energy Dispersive X - Ray Fluorescence Gold Spectrometer / XRF Analyzer, X Ray Gold Purity Checking Detector
Analysis Of Precious Metals And Identification Of Carats
At present, the use of XRF analyzer for chemical composition analysis and purity
determination of precious metals has become a widely used, extremely popular, and
supported by national standards, and reliable methods. The use of XRF for the analysis of
precious metals is a faster and more economical method of multi-element detection than spark
test and chemical reagent testing.
The XRF Analyzer provides users with an easy-to-use, cost-effective inspection technology: no
need to inspect the tool into the material of the sample being tested, or damage the sample.
The chemical composition information of the alloy can be obtained.thus determines the carat
rating of the sample. Whether you are buying precious metals such as gold, selling or producing jewelry, making metals, or recycling used metals, you need a quick way to determine the carat grade and other precious and non-precious metal content with extreme precision.
In the first time, to effectively control product quality, set a reasonable price. The xrf analyzer quickly provides accurate analysis of all types of samples.
Advantages And Characteristics Of Analysis
- Integrated an inbuilt computer with high industrial motherboard and multi- point hand touch, you don't need to prepare other computers, it can bring you super smooth experience feelings
- Three core components inside the instrument are all imported, so it determines that the instrument can accurately distinguish different gold samples especially 99.9% gold and 99.99% gold
- The instruments possess own unique mode of "one-key test", it is China first and same as Europe's top spectrometers. No matter any unknown metal material, the operators don't need to choose test templates and software intelligently matches the best way to measure and calculate. They are capable of fast, precise and non-destructive metal testing, making them suitable for use by jewelry retailers, jewelry manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions
- Super long warranty, confidence comes from pure European spectrometer production technology
- The instruments have an innovative function that can help customers identify gold-plated samples
- The users can see sample test position accurately by camera and cabin lighting system, and it can improve the testing confidence of users
- Equipped with a variety of optical collimator, breakthrough solved test problems of tiny metal samples (such as spun gold and gold thread samples)
- We can download and upload test data from network, and it is easy to view and share test results
- Temperature drift rate of all the parts inside instrument is controlled within one over one million, ensuring the strong stability and high precision of instrument. Testing results can show 4 digits after the decimal point, beyond all domestic spectral type precious metals analyzer
- Ultrahigh resolution, Super clear camera, Super convenient operation, Super fast detection speed, Perfect human interface
Instrument Performance And Configuration
| Brand | DahoMeter | ||
| Model | DX-2800 | DX-2800M | |
| Computer Built In | NO | NO | |
| Detector Type | Si-pin (USA) | SDD(USA) | |
| Multichannel Analyzer | DahoMeter-DMCP | ||

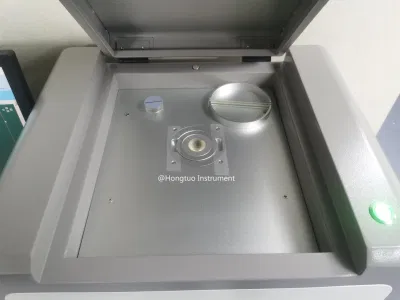

| Sample Chamber Size | 380 * 380 * 60 (mm) | ||
| Test Time | 5sec ~ 30sec | ||
| Measuring Element | 72 elements from sodium (Na) touranium (U) between all the elements | ||
| Analysis Range | 1ppm to 99.99% | ||
| Accuracy | 0.03% (Au≥96%) | 0.01% (Au≥96%) | |
| Sample Form | Solid, powder, liquid | ||
| Tube Voltage | 5KV ~ 50KV | ||
| High Voltage Power Supply | 0 ~ 50KV | ||
| Camera | HD camera | ||
| Filters | Selectable customized switches | ||
| Analysis Software | Qualitative and quantitative analysis software | ||
| External Dimensions | 480 * 480 * 390 (mm) | 480 * 480 * 390 (mm) | |
| Weight | 38Kg | 38Kg | |
| Instruments Environmental Requirements | |||
| Ambient Temperature | -5 ° C ~ 40 ° C (Suggested that in air conditioning room) | ||
| Relative Humidity | 15% ~ 90% | ||
| Power Requirements | AC 220V ± 5V, 50/ 60 HzNo high power electromagnetic and vibration interference sources nearby | ||
