Basic Info.
Model NO.
EJA-T
Output
4-20mA with Hart (2-Wire)
Resolution
0.001%Fs
Dimension
Diameter=66mm
Mounting Hole Pitch
D=55mm
Operating Temperature
-20°c ~ +70°c
Warranty
1year
Transport Package
Paper Carton and as Buyer′s Requirement
Trademark
BJZRZC
Origin
Beijing China
HS Code
902690000
Production Capacity
10000 PCS / Month
Product Description

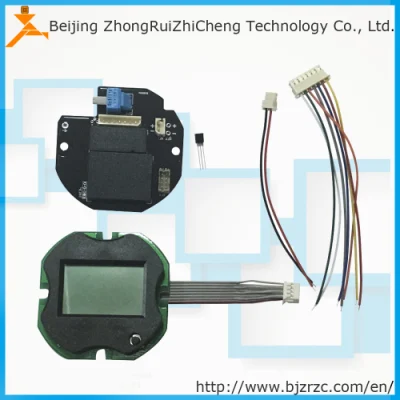

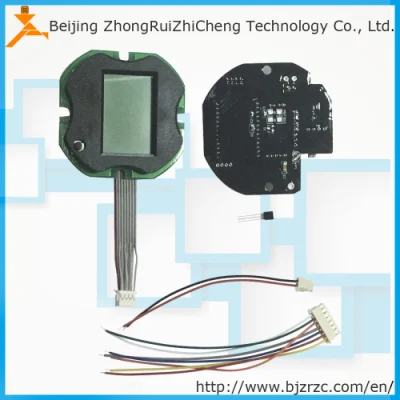

EAT HART Pressure Transmitter
Local Adjustment Operation Code List:
Features
1, High-voltage isolation: As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit.
2,Large range turndown
3, Strong capability for anti-disturbance: Leading military-grade hardware and software anti-disturbance technology, over-voltage protection, surge current, electrostatic shock and lightning protection.
4, Multiple local operation functions: Range Values, PV Unit, Damp, Transfer Function(Linear/Square root ), Zero Trim, Lower Sensor Trim , Upper Sensor Trim and Data Restore.
5, Flexible linearity and temperature compensation: The number of points for compensating temperature and pressure can be changed on demand.
6, 360o rotation LCD display
7, Multiple variables shown on the LCD: More than one variable displayed on the LCD with backlight for dark environment.
8, Data backup and restore
9, Easy to install and reliable with unique design.
Packaging & Shipping
FAQ:
1,Customer: i want buy the samples to test, it is ok?
Helen: of course, not free sample, but when the next order, we will return the samples money to your.
2,Customer: when will you do the shippment after my payment ?
Helen: we have the in stock, when we received the payment, i will ASAP send to your,(through DHL/ UPS/ TNT/FEDEX,etc)
3,Customer: How to pay?
Helen: the Western union, Paypal, person account, TT ,and so on.
Samples samll quantity are avaliable at any time Welcome to contact us!
Beijing ZhongRuiZhiCheng Technology Co., Ltd.
A professional engineering team with 15 Years HART/5 years Profibus R&D experiences
80% Market share in China Mainland market for HART transmitters
More than 1000k Units shipped per year
One-stop Solution for various HART/Profibus transmitters
Quick response in goods supply and post-sales support
Globally distributed customers including China Mainland, Korea, India, America, Europe, etc
Appliction | |
Used for | Diffused silicon pressure sensor Ceramic capacitors senso Ceramic piezoresistive load cell, strain gauge, magnetic field sensor Resistor of 2/3/4 wires, etc. |
Specifications | |
Power supply: | 12-32VDC |
Output: | 4-20 mA with HART (2-wire) |
Operating temperature | -20°C~+70°C(with LCD) -40°C~+85°C |
Dimension: | Diameter Φ=62mm |
Resolution: | 0.001%FS |
Mounting hole pitch: | D=55mm |
Weight: | About60g |
| LEFT-BOTTOM '88'Display | Function |
| 0 or NONE | Normal display. |
| 1 | Input operation code by KEY, user can input operation code such as 2,3,5,6 or 7, to perform corresponding function respectively. |
| 2 | PV Unit setting |
| 3 | PV Lower Range Value setting( Set LRV) |
| 4 | PV Upper Range Value setting( Set URV) |
| 5 | Damping setting |
| 6 | ZERO TRIM |
| 7 | Zero and span Migration |
| 8 | Output Characteristics [linear output, or Square root output ] |
| 9 | Low Trim |
| 10 | High Trim |
| 11 | Bias Setting |
Features
1, High-voltage isolation: As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit.
2,Large range turndown
3, Strong capability for anti-disturbance: Leading military-grade hardware and software anti-disturbance technology, over-voltage protection, surge current, electrostatic shock and lightning protection.
4, Multiple local operation functions: Range Values, PV Unit, Damp, Transfer Function(Linear/Square root ), Zero Trim, Lower Sensor Trim , Upper Sensor Trim and Data Restore.
5, Flexible linearity and temperature compensation: The number of points for compensating temperature and pressure can be changed on demand.
6, 360o rotation LCD display
7, Multiple variables shown on the LCD: More than one variable displayed on the LCD with backlight for dark environment.
8, Data backup and restore
9, Easy to install and reliable with unique design.
