                   MPEG4 Encoder IPTV Asi Output  DVB-S/S2/S2X  Encoder Modulator

Product Description

Encoder Modulator DVB-S/S2/S2X Output Asi Output Encoder ModulatorEncoder Modulator DVB-S/S2/S2X Output Asi Output Encoder Modulator

Product Overview

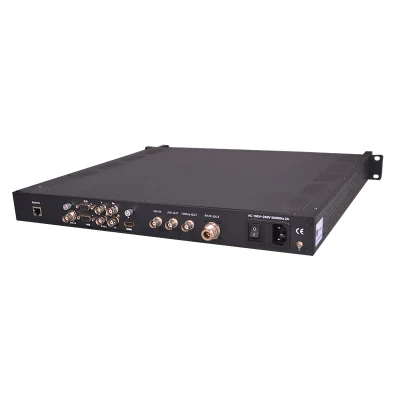

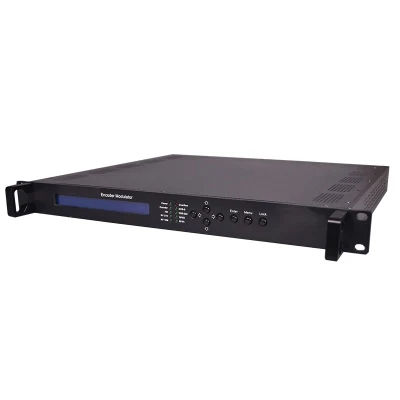

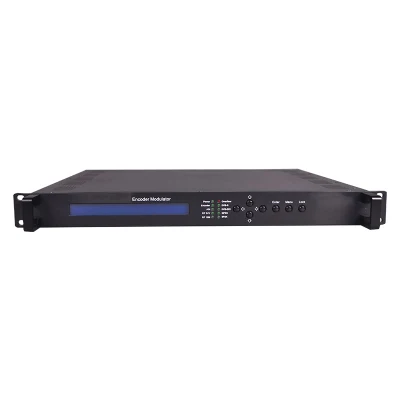

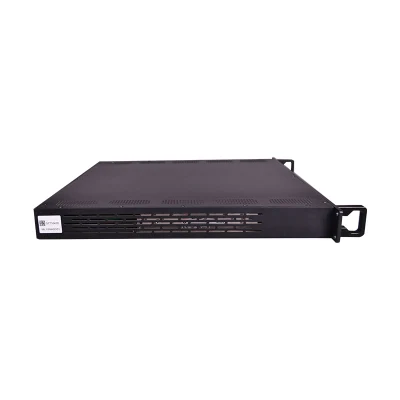

SFT3543D DVB-S/S2X Encoder & Modulator is an integrated device with multifunction. Its pluggable design makes it convenient to change encoding module (CVBS/SDI/HDMI/YPbPr…) as needed. It is also equipped with 1 channel ASI input. It outputs ASI and DVB-S/S2X RF (IF Optional) in the same time.

The signal source could be from CCTV cameras, Blue-ray players and etc. It adopts user-friendly web-based operation interface to effectively manage the device and carefully protect your content with its BISS function. Featured with its high performance and low cost, SFT3543D is especially adequate for the TV station or DSNG system to encode SD/HD programs and output to uplink.
Features
  1. MPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional
  2. CVBS/SDI/HDMI/YPbPr…signals in & 1*ASI in
  3. Support DVB-S/S2/S2X RF (IF Optional) output and ASI output
  4. LCN support (Logical Channel Number)
  5. Output Frequency: 950-2150MHz; IF: 50-200MHz
  6. QPSK, 8PSK, 16APSK, 32APSK, 8PSK-L, 16APSK-L, 32APSK-L Constellations
  7. Support RF CID setting
  8. Low latency achieved (CVBS Encoding modules excluded)
  9. Support BISS fucntion
  10. Support 10MHz reference clock
  11. Support Web NMS and front panel LCD & Keyboard control
  12. Upgrade device through web NMS
                                                                                    CID TEST SAMPLE ILLUSTRATION

Encoder Modulator DVB-S/S2/S2X Output Asi Output Encoder ModulatorEncoder Modulator DVB-S/S2/S2X Output Asi Output Encoder ModulatorTechnical Specifications
Encoder Modulator DVB-S/S2/S2X Output Asi Output Encoder ModulatorEncoder Modulator DVB-S/S2/S2X Output Asi Output Encoder ModulatorEncoder Modulator DVB-S/S2/S2X Output Asi Output Encoder ModulatorEncoder Modulator DVB-S/S2/S2X Output Asi Output Encoder ModulatorEncoder Modulator DVB-S/S2/S2X Output Asi Output Encoder Modulator

Product Parameters

Input Interface

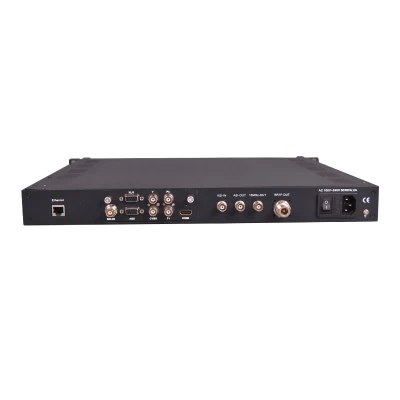

1/2*CVBS /1*SDI /1*HDMI/1*(HDMI+YPbPr+CVBS 3-in-1) optional DVB-S/S2/S2X RF output; (IF Optional)
ASI output
Output
DVB-S/S2/S2X RF output; (IF Optional)
ASI output




Modulation Section
Standard
DVB-S
DVB-S2
DVB-S2X
Outer coding
RS Coding
BCH Coding
BCH Coding
Inner coding
Convolution
LDPC Coding
LDPC Coding
Constellation
QPSK
QPSK,8PSK, 16APSK,32APSK
QPSK,8PSK, 16APSK,32APSK
8PSK-L,16APSK-L,32APSK-L
FEC/
Convolution Rate
1/2, 2/3,
3/4, 5/6, 7/8
QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9,
9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9,
9/10
32APSK: 3/4, 4/5, 5/6, 8/9,
9/10
QPSK: 13/45, 9/20, 11/20 8PSK: 23/36, 25/36, 13/18
16APSK: 26/45, 3/5, 28/45, 23/36, 25/36,
13/18, 7/9, 77/90
32APSK: 32/45, 11/15, 7/9
8PSK-L: 5/9, 26/45
16APSK-L: 5/9, 8/15, 1/2, 3/5, 2/3
32APSK-L: 2/3
Roll-off Factor
0.2,0.25,0.35
0.2, 0.25, 0.35
0.05, 0.10, 0.15

Symbol Rate

0.5~45Msps
0.5~40Msps (32APSK);
0.5~45Msps (16APSK/8PSK/QPSK)
0.5~40Msps(32APSK,32APSK-L);
0.5~45 Msps (16APSK/8PSK/QPSK/16APSK-L/8PSK-L)
BISS Scramble
Mode 0, mode 1, mode E

System
Local Control
LCD + control buttons
Remote Control
Web NMS
Low Latency
Normal, Mode 1, Mode 2
Mode

Language
English

Physical Specification
Demission
410×460×44mm (W*L*H)
Temperature
0~45ºC(operation), -20~80ºC(storage)
Weight
4.5kgs
Power Supply
AC 100-240V 50/60Hz 2A
