Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor

Discover high-quality slewing bearings for band conveyors with internal/external teeth and flange at competitive factory prices. Order now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Profile
  • Packaging & Shipping
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
HT10-54N1Z
Type
No Gear
Warranty
18 Months
OEM/ODM
Acceptable
Delivery Time
15 Days
Advantage
Low Noise, Low Vibration, High Precesion
Transport Package
Export Standard Packing
Specification
ISO, CE, SGS, BV
Trademark
SoCare®
Origin
China
HS Code
8431390000
Production Capacity
2000PCS/Month

Product Description

Product Description

Product Description:


Type
• Single Row Four Point contact ball slewing bearing
• Single Row crossed cylindrical roller slewing bearings
• Double Row ball slewing bearings
•Double Row Roller/ball combination slewing bearing
•Three-Row Roller Slew Ring Bearing
Rolling elements Steel ball / Cylinder Roller
Rolling elements Material GCr5/GCr15SiMn/Customized
Bearing Material 50Mn/42CrMo/42CrMo4V /Stainless Steel,Alu,Customized
Cage Material Nylon 1010/ Steel /Brass
Structure Taper pin , Mounting holes,Inner ring ,Grease fitting,Load plug, Seals , Roller ,Spacer Balls or separators
Outer diameter 50-10000mm
Bore size 50-10000mm
Mounting hole Through Hole/Tapped hole/Counterbore
Raceway hardness 55-62HRC
Inner and outer ring
modulation hardness
229-269HB/Customized
Gear type No gear ,Internal gear , External gear.
Embellish grease EP2 lithium lubricating grease
Certificate ABS.BV,DNV,ISO9001,GL,3.1,3.2

Application area
Ladle turret,Stacker crane,Bucket wheel machine,Solar heliostat Tracking System,port crane, Cabling machine,tower crane , off shore platform,ferris wheel, Palletizing robot,Rotary metallurgical furnace,can packing machine,Wind blade transporter,shield tunneling machine,tube push bench,excavator
Brand Name SoCare-MSI
Place of Origin China
Warranty 18 months
Payment term T/T is our first choice


Packing details
1,Filling with anti-rust oil
2.Corved with Plastic paper
3.Corved with kraft paper
4.Corved with Blue tie
5.Put in wooden box


Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor

Slewing ring bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction .They can perform both slewing (oscillating) movements as well as rotational movements. A slewing ring bearing consist of an inner ring, an outer ring and rolling elements (balls or cylindrical rollers) that are separated by polyamide spacers .The rings, one of which usually incorporates a gear ,are provided with holes to accommodate attachment bolts. The holes may be threaded. Generally , only the raceways in the rings are hardened and precision-ground.Integral seals made of acrylonitrile-butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing. Slewing ring bearings are re-lubricated through grease fittings to reduce maintenance and operating costs.

Compared to traditional pivot arrangements, slewing ring bearing arrangements provide many design and performance advantages. The compactness and large inner diameter simplify the design of the bearing arrangement and its associated components .The low sectional height of these bearings means that the pinion lever can be kept short. In most cases only flat mounting surfaces on the associated components are needed.

Slewing ring bearings were originally designed to be mounted only on horizontal support structure, but can now be used successfully in vertical bearing arrangements .

Slewing ring bearings perform extremely well in a variety of applications such as:
¤ Access platforms
¤ Bucket wheel excavators
¤ Conveyor booms
¤ Cranes of all type
¤ Small ,medium and large excavators
¤ Indexing tables
¤ Ladle turrets
¤ Offshore applications
¤ Robots
¤ Railway bogies
¤ Rotary platforms
¤ Stackers
¤ Solar mirrors
¤ Tunnel boring machines
¤ Wind turbines

Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor
Introduction
SCB-HT bearings have the same configuration as the SCB-HS bearing.
Produced with a larger cross section ring and larger diameter rolling elements.
OD size range : 36"-66"
Increased capacity over the SCB-HS bearing.
Construction
- Deep groove gothic arch
-4 point contact
-Sealed
-Ring Configuration:
Non geared

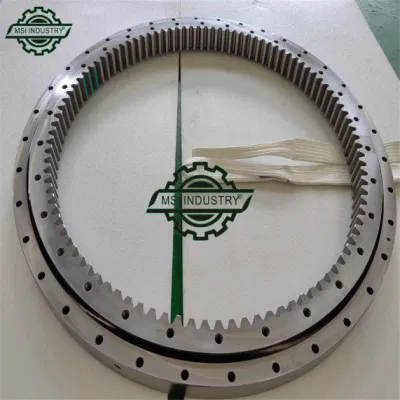

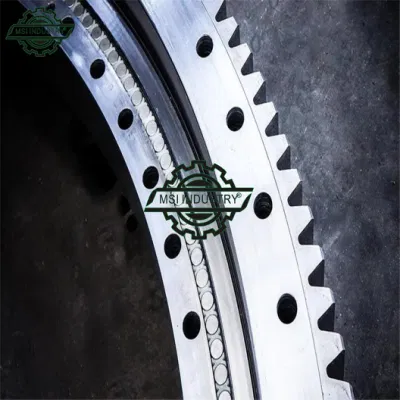

External gear
Internal gear
-Geared rings have tapped holes
-Non geared rings have thru holes
-Gear detail:
Involute Stub
20 deg
AGMA8 Class

.005"-.025" allowable backlash
-Grease fittings for lubrication
Applications
- Rotary table
-Lifts
-Material handling
-Derricks
-Rotators
-Stretch wrap equipment
-Crane
Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor

Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor
Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor


Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor

Company Profile

Company  Profile:
Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor
                              About SoCare®:
The SoCare® brand is synonymous with quality.
Now, we have become an even greater resource for our business partners. Due to embracing technical advances, product support, and service, we have become a truly solutions-oriented supplier.


SoCare® is creating greater value for our partners.

These advances all work together to bring our customers the added benefit of higher productivity. In addition, we provide application specific products, leading edge design simulation tools, on sight engineering support, plant asset efficiency programs, and advanced supply chain management.
             With SoCare® you can expect more!
Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor
Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor
Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor

Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor
Application:
Slewing ring bearings can be widely used in lifting & transport machinery, mining machinery, construction machinery, port hoisting machinery, port oil transfer equipment, onshore and offshore crane, excavator, concrete machine, paper machine, plastic and rubber machine, weave machine, steel plant, electronic power plant, wind power generator, other construction and industry machines or equipments and other large rotary device.

Packaging & Shipping

Packing & Shipping:

Bearing surface is covered with the anti-rust oil first; and then wrapped with the plastic film;

And then packed with kraft paper and professional belts;

At last, with wooden box totally at the outer packing to invoid the rust or the moist;

We can depend on the customers  demand to be packed.



Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor
Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor



Factory Price Slewing Bearings with Internal Teeth External Teeth with Flange for Band Conveyor

After Sales Service

Our Service:
1. Your inquiry will be reply within 2 hours.

2.Fast delivery,within 15 working days.

3.Packing: you will receive a Perfect product with strong outside packing.

4.With advanced first-level facilities and testing equipment,to insure no mistake on the dimension of the bearings.

5.MOQ is 2 sets, Because we are manufacturer.

6.24 hours on line,no limited to talk to us.

7.Return Policy:We gladly accept returns for item purchased within a 15 day period, provided it is still in the original package, not used nor damaged.

8.Warranty Claims :The Warranty covers any Defect of the product for a period of 18 months. It does not cover items that are not correctly installed or over tightened which may cause premature failure. Installation or any other fee's are not refundable.

FAQ

FAQ:

1.Q: Are you trading company or manufacturer ?
A: We are a manufacturing enterprise focusing on bearings and integrating research, production and sales with 20 years' experience.

2.Q: How long is your delivery time?
A: Generally it is 7 days if the goods are in stock. or it is 15 days if the goods are not in stock, Also it is according to quantity.

3.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.

4.What are the company's delivery terms?
A:We can accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient cost effective for you.

5.Q: Can you provide special customization according to the working conditions?
A: Sure, we can design and produce the slewing bearings for different working conditions.

6.How many the MOQ of your company?
A:Depending on the size of the bearing, the MOQ is variable, if you are interested, you can contact me for a quote.

7.Does the company accept OEM or customized bearings?
A:In addition to standard products, we also supply non-standard and modified standard products for special application. Meanwhile, we provide OEM service.

8.Can the company provide free samples?
A:We can provide samples for free. You only need to provide shipping.
