Basic Info.
Model NO.
vy048
Type
Crystal
Transmittance
>95%
Shape
Crystal
Material
Crystal
Lenses Color
Clear
Certification
RoHS, ISO9001, CE
Customized
Customized
Coating
as Request
Diameter
76.2mm, 50mm
Orientation
X, Z, Y, etc
Polish
DSP or Ssp
Bow
<20 Um
Transport Package
as Request
Specification
as request
Trademark
VY or OEM
Origin
China
HS Code
9001909090
Production Capacity
5000000
Packaging & Delivery
Package Size
12.00cm * 10.00cm * 9.00cm
Package Gross Weight
0.100kg
Product Description
Product Description

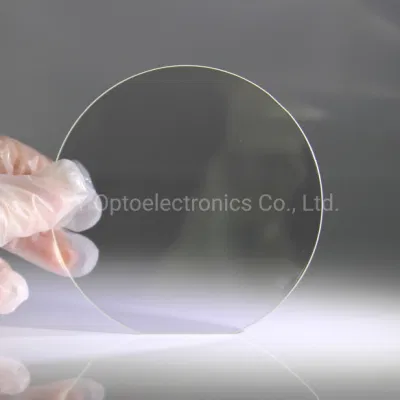

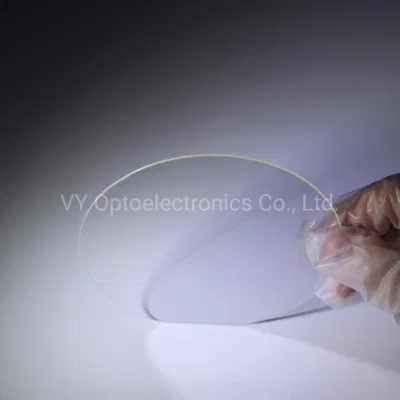

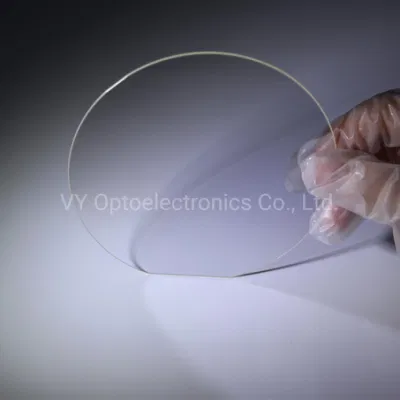

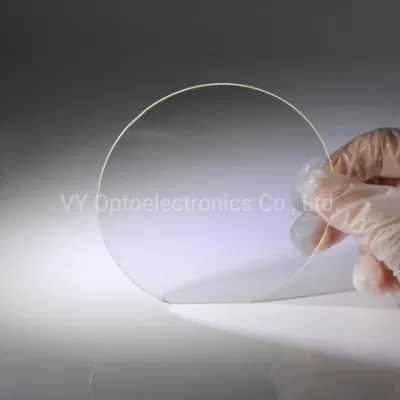

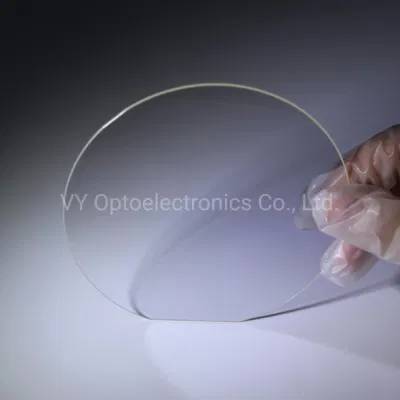

LiTaO3 crystal lens is also widely used E-O crystal.
Main properities of LiTaO3 lens include:
Transparent:0.4-5.0µm
E-O Coefficient:r33=30.4
Refractive Indices:no=2.716,ne=2.180 at 633nm
1) Diameter:76.2mm,50mm
2) Orientation:X,Z,36°Y,112X
3) Polish:both siades or single side 10/5 S/D
4) TTV<10 Um
5) Bow:<20 Um
LiTaO3 crystal lens is also widely used E-O crystal,Lithium tantalate(LiTaO3) has good piezoelectric, ferroelectric and acoustooptic effect, and is widely used in optic communication, laser and optical electronics fields as the ideal material of SAW device.
Lithium Tantalate exhibits unique electro-optical, pyroelectric and piezoelectric properties combined with good mechanical and chemical stability and , wide transparency range and high optical damage threshold. This makes LiTaO3 well-suited for numerous applications including electro-optical modulators, pyroelectric detectors, optical waveguide and SAW substrates, piezoelectric transducers etc. LiTaO3 crystals grown along X-axis, fully poled, maximum size 60 mm diameter and length are available as alternative material for E-O modulators, pyroelectric sensors, etc.
Who are we?
VY Optoelectronics Co., Ltd, established in 2010 in Optical City of China - Changchun. Our company has strong production capacity, in possession of the domestically top production line and excellent workers, which mainly are composed of researchers and technicians from the Chinese Academy of Sciences, Changchun Institute of Optics and Fine Mechanics and Changchun University of Science and Technology, they are experienced and could produce wide range of optical lenses.
What can we do for you ?
VY Optics provide professional design of optical lenses, Coating service and all kinds of optical elements processing include mainly high-precision prism, filter, rod lens, ball lens, dome lens, cylindrical lens, grin lens, micro-lenses, optical sapphire customized components, window, spherical lenses and aspheric lenses, powell lens and infrared materials products.
Why Us ?
1. Reasonable quotation. We reject unrealistic low prices. As a prerequisite, to ensure the highest quality of lens and offer the reasonable price.
2.Quality assurance. Besides pass the ISO9001 certification, experience team and efficient equipment are the vital guarantee for the product.
3. Timely Delivery. We could ship goods to you in time as lead time we negotiate.
4. Convenient logistics services. We usually cooperate with the famous express logistics company, including 90% regions of the world and ensure the products can delivery to the customers safety and quickly.
Our Factory
Advanced processing equipment and complete production system could ensure that we can effectively control every aspect of the lenses processing, and avoid unnecessary loss and reduce costs!
Exhibition
We participated exhibitions-Laser World of Photonics in Munich, and establish the business with many foreign customers.
Other Products
VY Optics could provide a variety of types of optical components, including ball lens, dome lens, fingerprint prism, filter, rod lens, grin lens, cylindrical lens, achromatic lens, prism, powell lens, optical mirrors, optical windows,and spherical lens. We have ability to process high-precision micro lens and can customized various of the sapphire products and other infrared material lens according to the customer.
Packaging - Logistics
VY Optoelectronics Co.,Ltd. concerns each details of the package, cleaning, anti-static , shock-resistant . According to the quantity and shape of the product , we will take a different packaging process!
Logistics
In order to make the goods safe fast accurate to your hands, we generally recommend that you choose the international logistics company!
LiTaO3 crystal lens is also widely used E-O crystal.
Main properities of LiTaO3 lens include:
Transparent:0.4-5.0µm
E-O Coefficient:r33=30.4
Refractive Indices:no=2.716,ne=2.180 at 633nm
1) Diameter:76.2mm,50mm
2) Orientation:X,Z,36°Y,112X
3) Polish:both siades or single side 10/5 S/D
4) TTV<10 Um
5) Bow:<20 Um
LiTaO3 crystal lens is also widely used E-O crystal,Lithium tantalate(LiTaO3) has good piezoelectric, ferroelectric and acoustooptic effect, and is widely used in optic communication, laser and optical electronics fields as the ideal material of SAW device.
Lithium Tantalate exhibits unique electro-optical, pyroelectric and piezoelectric properties combined with good mechanical and chemical stability and , wide transparency range and high optical damage threshold. This makes LiTaO3 well-suited for numerous applications including electro-optical modulators, pyroelectric detectors, optical waveguide and SAW substrates, piezoelectric transducers etc. LiTaO3 crystals grown along X-axis, fully poled, maximum size 60 mm diameter and length are available as alternative material for E-O modulators, pyroelectric sensors, etc.
| Range of diameter | Dia.0.7mm-Dia.400mm |
| Range of curve radius | R1.5-R∞ etc. |
| Tolerance of diameter | +/-0.1, +/-0.01, +/-0.005 etc. |
| Surface accuracy | λ , 1/2λ , 1/4λ , 1/10λ etc. |
| Tolerance of Thickness | +/-0.1, +/-0.05, +/-0.01 etc. |
| Centration | +/-2′, +/-1′ etc. |
| Aperture N | 5, 1 etc. |
| Irregularity ΔN | 2, 1, 0.5, 0.2 etc. |
| Surface quality | 60/40, 40/20, 20/10, 10/5 etc. |
