Basic Info.
Model NO.
SFP-2.5G-SX850
Condition
New
Product Name
2.5g SFP Transceiver
Fiber Type
Multi Mode Dual Fiber
Voltage
3.3V
Data Rate
2.5GB/S
Ddm/Dom Support
Yes
Fiber Connector
mm Duplex LC
Warranty
2years
Distance
300m
Form Type
SFP
Wavelength
850nm
Material
Iron
Working Temperature (°c)
0~70 Degree
Compatible
Cisco, Huawei, HP etc.
Transport Package
10PCS/Tray, 600PCS/Carton
Specification
0.025KG/pc
Trademark
UTOPTEK
Origin
Shenzhen, China
HS Code
8517706000
Production Capacity
3000PCS/Day
Packaging & Delivery
Package Size
23.50cm * 20.50cm * 5.00cm
Package Gross Weight
0.500kg
Lead Time
7 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)
To be negotiated ( > 1 Pieces)
Product Description

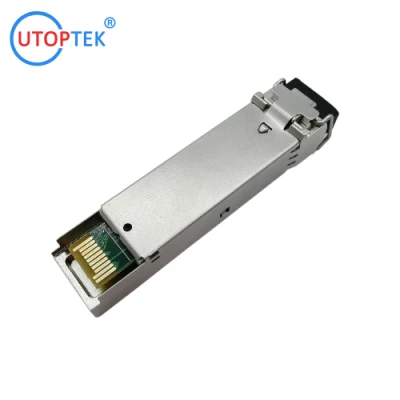

2.5G SFP SR 850nm 300m multimode duplex LC connector fiber optical sfp transceiver module
Product Features:
Application:
* SDH STM-16 and SONET OC-48 system
* 2X Fiber Channel
* Switch to Switch interface
* Switched backplane applications
* Router/Server interface
* Other optical transmission systems
High Compatibility for all Brands
FAQ:
Q1 . What's your MOQ?
A1 .1 pc/pair is ok, we don't have MOQ limited.
Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.
Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.
Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.
Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.
Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
Related Products
Welcome to send us inquiries for above products, We are Factory. Price very competitive than many of other suppliers!
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 2.488Gbps and 300m transmission distance with MMF. The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
| Brand | UTOPTEK, OEM |
| Condition | 100% New |
| Form Factor | SFP |
| Wavelength: | TRx850nm |
| Distance | 300Meters |
| Data Rate (max) | 2.5Gbps |
| Working Temperature (°C) | 0°C~70°C |
Storage Temperature (°C) | -40°C~+85°C |
Relative Humidity | 0~85% |
| Voltage Supply | 3.3--5v |
| Connector | LC |
| Warranty | 3 years |
| Compatible with | Cisco, Huawei, HP etc. |
| Time of delivery | 2-4 working days |
| Package | 10 pcs/box |
Product Features:
* Up to 2.488Gb/s data links
* 850nm VCSEL laser and PIN photodetector
* Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
* Digital Diagnostic Monitoring: Internal Calibration or External Calibration
* 300m transmission with 50/125µm MMF
* Compatible with RoHS
* +3.3V single power supply
* Operating case temperature:
Standard : 0 to +70°C
Extended : -20 to +85°C
* 850nm VCSEL laser and PIN photodetector
* Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
* Digital Diagnostic Monitoring: Internal Calibration or External Calibration
* 300m transmission with 50/125µm MMF
* Compatible with RoHS
* +3.3V single power supply
* Operating case temperature:
Standard : 0 to +70°C
Extended : -20 to +85°C
Application:
* SDH STM-16 and SONET OC-48 system
* 2X Fiber Channel
* Switch to Switch interface
* Switched backplane applications
* Router/Server interface
* Other optical transmission systems
High Compatibility for all Brands
| 2.5Gbps SFP Transceiver | ||||||||
| Part No. | Data Rate | Form Factor | Distance | Wavelength | Transmitter | Receiver | Interface | Temp. |
| SFP-2.5G-SX850 | 2.5Gb/s | SFP | 300m | 850nm | VCSEL | PIN | LC | 0-70ºC |
| SFP-2.5G-SX1310 | 2.5Gb/s | SFP | 2km | 1310nm | FP | PIN | LC | 0-70ºC |
| SFP-2.5G-LX10 | 2.5Gb/s | SFP | 10km | 1310nm | FP | PIN | LC | 0-70ºC |
| SFP-2.5G-LX20 | 2.5Gb/s | SFP | 20km | 1310nm | FP | PIN | LC | 0-70ºC |
| SFP-2.5G-EX40 | 2.5Gb/s | SFP | 40km | 1310nm | DFB | PIN | LC | 0-70ºC |
| SFP-2.5G-EX40 | 2.5Gb/s | SFP | 40km | 1550nm | DFB | PIN | LC | 0-70ºC |
| SFP-2.5G-ZX60 | 2.5Gb/s | SFP | 60km | 1550nm | DFB | PIN | LC | 0-70ºC |
| SFP-2.5G-ZX80 | 2.5Gb/s | SFP | 80km | 1550nm | DFB | PIN | LC | 0-70ºC |
| SFP-2.5G-ZX100 | 2.5Gb/s | SFP | 100km | 1550nm | DFB | PIN | LC | 0-70ºC |
| SFP-2.5G-ZX120 | 2.5Gb/s | SFP | 120km | 1550nm | DFB | APD | LC | 0-70ºC |
| SFP-2.5G-BX20-L35 | 2.5Gb/s | BiDi SFP | 20km | Tx1310nm/Rx1550nm | FP | PIN | LC/SC | 0-70ºC |
| SFP-2.5G-BX20-L53 | 2.5Gb/s | BiDi SFP | 20km | Tx1550nm/Rx1310nm | DFB | PIN | LC/SC | 0-70ºC |
| SFP-2.5G-BX40-L35 | 2.5Gb/s | BiDi SFP | 40km | Tx1310nm/Rx1550nm | DFB | PIN | LC/SC | 0-70ºC |
| SFP-2.5G-BX40-L53 | 2.5Gb/s | BiDi SFP | 40km | Tx1550nm/Rx1310nm | DFB | PIN | LC/SC | 0-70ºC |
| SFP-2.5G-BX60-L35 | 2.5Gb/s | BiDi SFP | 60km | Tx1310nm/Rx1550nm | DFB | PIN | LC/SC | 0-70ºC |
| SFP-2.5G-BX60-L53 | 2.5Gb/s | BiDi SFP | 60km | Tx1550nm/Rx1310nm | DFB | PIN | LC/SC | 0-70ºC |
| SFP-2.5G-BX80-L45 | 2.5Gb/s | BiDi SFP | 80km | Tx1490nm/Rx1550nm | DFB | PIN | LC/SC | 0-70ºC |
| SFP-2.5G-BX80-L54 | 2.5Gb/s | BiDi SFP | 80km | Tx1550nm/Rx1490nm | DFB | PIN | LC/SC | 0-70ºC |
| SFP-2.5G-BX120-L45 | 2.5Gb/s | BiDi SFP | 120km | Tx1490nm/Rx1550nm | DFB | APD | LC/SC | 0-70ºC |
| SFP-2.5G-BX120-L54 | 2.5Gb/s | BiDi SFP | 120km | Tx1550nm/Rx1490nm | DFB | APD | LC/SC | 0-70ºC |
| SFP-2.5G-CW40-xx | 2.5Gb/s | CWDM SFP | 40km | 1470 ~1610nm | DFB | PIN | LC | 0-70ºC |
| SFP-2.5G-CW60-xx | 2.5Gb/s | CWDM SFP | 60km | 1470 ~1610nm | DFB | PIN | LC | 0-70ºC |
| SFP-2.5G-CW80-xx | 2.5Gb/s | CWDM SFP | 80km | 1470 ~1610nm | DFB | PIN | LC | 0-70ºC |
| SFP-2.5G-CW120-xx | 2.5Gb/s | CWDM SFP | 120km | 1470 ~1610nm | DFB | APD | LC | 0-70ºC |
| SFP-2.5G-DW40-CHxx | 2.5Gb/s | DWDM SFP | 40km | 1528.77~1563.86nm | Cooled DFB | APD | LC | 0-70ºC |
| SFP-2.5G-DW80-CHxx | 2.5Gb/s | DWDM SFP | 80km | 1528.77~1563.86nm | Cooled DFB | APD | LC | 0-70ºC |
| SFP-2.5G-DW120-CHxx | 2.5Gb/s | DWDM SFP | 120km | 1528.77~1563.86nm | Cooled DFB | APD | LC | 0-70ºC |
