Basic Info.
Model NO.
SWPA060180G5049R
Operating Frequency
6-18GHz
Max Input Power
+10 dBm
Output Power(Psat)
80 Watt
Spurious Signals
-60 Dbc(Max)
Gain Flatness
±2.5 dB
Transport Package
Carton
Trademark
SWT
Origin
China
Production Capacity
3000 / 3 Months
Product Description

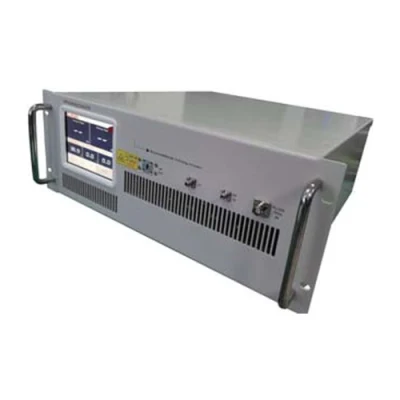

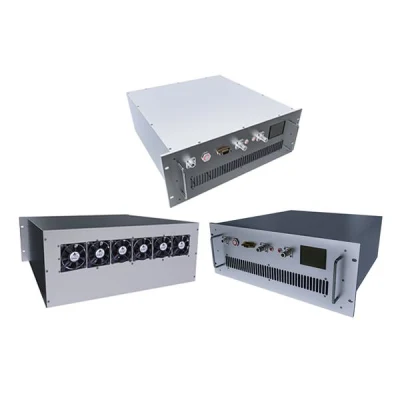

6-18GHz 50dB Gain Low Power Consumption 80W Output Power Solid State High Power Amplifier
ELECTRICAL SPECIFICATIONS@25˚C:
Note:1.over temp protection:80˚C.
2.Forced air cooling.
ENVIRONMENTAL RATINGS:

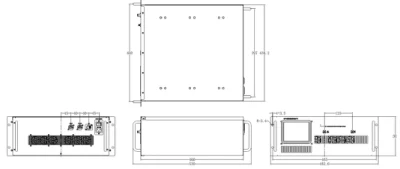

MECHANICAL SPECIFICATIONS:
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.
In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.
Q&A:
Q5: Delivery Date of the sample by DHL/FedEx
ELECTRICAL SPECIFICATIONS@25˚C:
| Parameter | Min | Typical | Max | Units |
| Frequency Range | 6 | 18 | GHz | |
| Gain | 50 | dB | ||
| Gain Flatness | ±2.5 | dB | ||
| Output Power (Psat) | 80 | 100 | Watt | |
| Spurious Signals | -60 | dBc | ||
| Harmonics | -15 | dBc | ||
| VSWR | 2:1 | Ratio | ||
| Input Voltage | 220V AC | |||
| Human-computer Interface | touch screen LCD:Voltage,Current,Gain | |||
| Program Control Interface | RS422 and Ethernet | |||
2.Forced air cooling.
ENVIRONMENTAL RATINGS:
| Parameter | Min | Typical | Max | Units |
| Max Input power | +10 | dBm | ||
| Operating Temperature | -20 | +50 | ˚C | |
| Non-operating Temperature | -40 | +65 | ˚C | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
| Shock / Vibration (MIL-STD-810F) | Airbone |
MECHANICAL SPECIFICATIONS:
| Parameter | Value | Limits | Units |
| Dimensions | 3U | Milimeter | |
| Weight | 20 | Kg | |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | WRD650 | ||
| Impedance | ohms |
