Basic Info.
Model NO.
SWPA060180G5253R
Operating Frequency
6-18GHz
Max Input Power
0±3 dBm
Output Power(Psat Cw)
200 Watt
RF Connectors Input/Output
N-F
Impedance
50 Ohms
Transport Package
Carton
Trademark
SWT
Origin
China
Production Capacity
3000 / 3 Months
Product Description

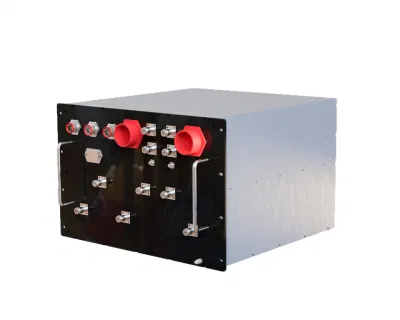

6-18GHz 52dB Gain Power N-F Connectors 50ohms Impedance Solid State High Power Amplifier
ELECTRICAL SPECIFICATIONS@25˚C:
Note:
1.Input Signal:AM, FM, CW, Pulse, LFM, Phase coded.
2. Over Temperature Protection; Over REV VSWR Protection ; Over incentive protection. 3.Air forced cool.
4.Protection from Rain ,Sand and Dust.
ENVIRONMENTAL RATINGS:
MECHANICAL SPECIFICATIONS:
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.
In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.
In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
Q&A:
Q5: Delivery Date of the sample by DHL/FedEx
ELECTRICAL SPECIFICATIONS@25˚C:
| Parameter | Min | Typical | Max | Units |
| Frequency Range | 6 | 18 | GHz | |
| Power Gain | 52 | dB | ||
| Power Gain Flatness | ±3 | dB | ||
| Output Power(Psat CW) | 200 | Watt | ||
| pulse Width | 0.1 | 100 | us | |
| PRF | 50Hz | 100KHz | ||
| Spurious | -50 | dBc | ||
| Harmonics | -3 | dBc | ||
| Noise Figure | -10 | dBm/MHz | ||
| Input VSWR | 2:1 | Ratio | ||
| Output VSWR | 2.5:1 | Ratio | ||
| Input Voltage | 180 | 220 | 240 | Volt |
| Human-computer Interface | touch screen LCD:Voltage,Current,Temperature,FWD/REV Power | |||
| Program Control Interface | TCP/IP and Ethernet | |||
1.Input Signal:AM, FM, CW, Pulse, LFM, Phase coded.
2. Over Temperature Protection; Over REV VSWR Protection ; Over incentive protection. 3.Air forced cool.
4.Protection from Rain ,Sand and Dust.
ENVIRONMENTAL RATINGS:
| Parameter | Min | Typical | Max | Units |
| Max Input power | 0±3 | dBm | ||
| Operating Temperature | 0 | +55 | ˚C | |
| Non-operating Temperature | -10 | +70 | ˚C | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
| Shock / Vibration (MIL-STD-810F) | Airbone |
MECHANICAL SPECIFICATIONS:
| Parameter | Value | Limits | Units |
| Dimensions | 5U D:550mm | Max | Milimeter |
| Weight | 45±2.5 | Max | Kg |
| RF Connectors Input | N-F | ||
| RF Connectors Output | N-F | ||
| Forward / Reverse Detection Connectors | N-F | ||
| Impedance | 50 | ohms |
