Model NO.
SWPA060180G5045R
Operating Frequency
6-18GHz
Input Power
10 dBm(Max)
Output Power (Psat)
45 dBm
Impedance
50 Ohms
Transport Package
Carton
Trademark
SWT
Origin
China
Production Capacity
3000 / 3 Months
Product Description

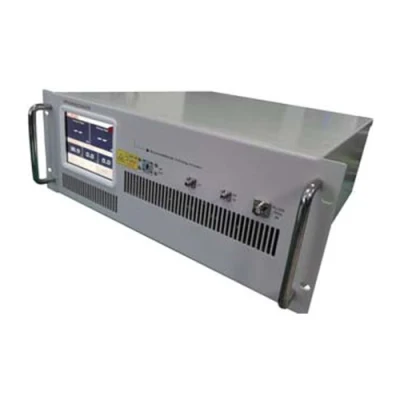

6-18GHz 50dB Small Signal Gain 50ohms Impedance Wide Bandwidth Solid State High Power Amplifier
ELECTRICAL SPECIFICATIONS@25˚C
MECHANICAL SPECIFICATIONS:
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.
In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.
Q&A:
Q5: Delivery Date of the sample by DHL/FedEx
ELECTRICAL SPECIFICATIONS@25˚C
| Parameter | Min | Typical | Max | Units |
| Frequency Range | 6 | 18 | GHz | |
| Small Signal Gain | 50 | dB | ||
| Small Signal Gain Flatness | ±3 | dB | ||
| Noise Figure | 10 | dB | ||
| Output Power (Psat) | 45 | dBm | ||
| IP3 | dBm | |||
| Spurious Signals | -60 | dBc | ||
| Harmonics | -15 | dBc | ||
| VSWR | 2:1 | Ratio | ||
| Input Voltage | 220VAC | |||
| Human-computer Interface | touch screen LCD:Voltage,Current,Gain | |||
| Program Control Interface | RS422 and Ethernet | |||
Note:Note:Forced air cooling.
ENVIRONMENTAL RATINGS: | Parameter | Min | Typical | Max | Units |
| Max Input power | +10 | dBm | ||
| Operating Temperature | -40 | +55 | ˚C | |
| Non-operating Temperature | -55 | +85 | ˚C | |
| Relative humidity (non-condensing) | 90 | % | ||
| Altitude (MIL-STD-810F) | TBD | feet | ||
| Shock / Vibration (MIL-STD-810F) | TBD |
MECHANICAL SPECIFICATIONS:
| Parameter | Value | Limits | Units |
| Dimensions | 2U | Milimeter | |
| Weight | 15 | Kg | |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | N-F | ||
| Impedance | 50 | ohms |
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.
In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.
Q&A:
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to your problems.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Shipment Date
| Sample | 20 business days |
| ≤50 pcs | 60 business days |
| >50 pcs | 90 business days |
| >200 pcs | Negotiate |
Q5: Delivery Date of the sample by DHL/FedEx
| USA/Canada/Europe/Asia | 3-5 days |
| Middle East/Latin American | 5-7 days |
| African | 3-7 days |
