Basic Info.
Model NO.
SWT-GKTS-FS2/2-127-0.8/3-NK(-E)
Insertion Loss
≤5.0 dB
Switch Speed
6 Ms
Transport Package
Carton or as Per Customer Requirement
Specification
200*217*95 mm
Trademark
SWT
Origin
China
Production Capacity
1000 / Month
Product Description

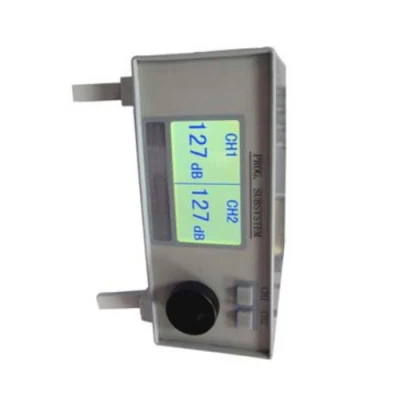

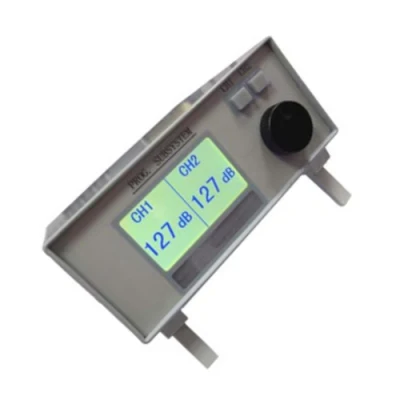

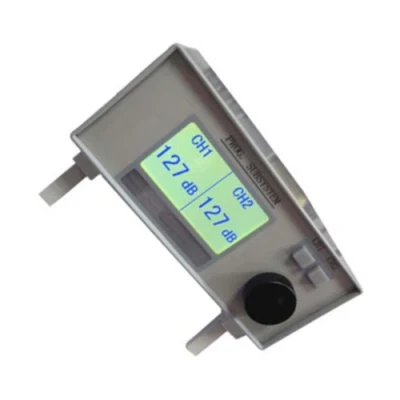

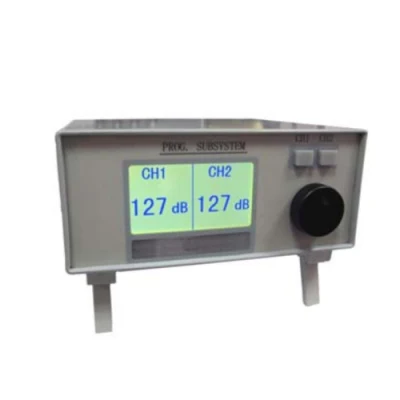

0.8-3GHz 33dBm RF Input Power Double Channel Microwave Test Subsystem
SPECIFICATIONS
Q&A:
Q5: Delivery Date of the sample by DHL/FedEx
SPECIFICATIONS
| Frequency Range(GHz) | Attenuation Range(dB) | Attenuation Accuracy | VSWR | Insertion Loss(dB) | RF Input Power(dBm) | Switch Speed | Control Model | Dimension (mm) | Weight (kg) |
| 0.8-3 | 0-127 in 1dB step | ±0.5dB(<10dB) ±1.0dB(10~31dB) ±1.5dB(32~63dB) ±2.5%dB(64~127dB) | ≤1.5 | ≤5.0 | 33 | 6ms | Mechanical or Remote | 200×217×95 | 2 |
Notes:
1. Dimensions Tolerance ±2%
2. Custom designs available
1. Dimensions Tolerance ±2%
2. Custom designs available
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.
In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.
In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
Q&A:
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to your problems.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Shipment Date
| Sample | 20 business days |
| ≤50 pcs | 60 business days |
| >50 pcs | 90 business days |
| >200 pcs | Negotiate |
Q5: Delivery Date of the sample by DHL/FedEx
| USA/Canada/Europe/Asia | 3-5 days |
| Middle East/Latin American | 5-7 days |
| African | 3-7 days |
