Overview

Basic Info.

Model NO.
HT85210T (1550nm optical transmitter)
Return Loss
18~28dbmv
Flatness
</=+/-0.75dB
RF Connector
F-Female
Optical Fiber Connector
Sc / APC
Trademark
Guangtai

Product Description

Product Description

GT is the well-known manufacture in analog externally modulated optic transmitter around the world. HT8500T is a series of 1550nm externally modulated optic transmitter achieving the highest standards of today. The whole-unit's optical source adopts narrow line width (Typ.=0.35MHz), low noise and continuous wave DFB laser, which is propitious to reduce dispersion effect. Adopting ITU standard wavelength, users can adjust and set the wavelength on the front panel within the range of ±200GHz (±1.6nm) as ±0.05nm stepping. HT8500T EM optic transmitter is applicable for the network upgrading and expansion of WDM system. The whole unit signal modulation adopts CATV special LiNbO3 external modulator of American JDS-U company and Huatai optimized control technology with independent intellectual property , so HT8500T EM optic transmitter can reach high index of back to back CNR ≥ 53.5dB, CTB ≤ -65dB, CSO ≤ -65dB, SBS: 13~19dBm continuous adjustable. The whole unit is equipped with perfect RS232 communication interface, SNMP network management, 1+1 back-up power supply , hot-plug function available, chassis temperature auto-control. All the optical port of EM optic transmitter can be installed in the front panel (The back panel is also available if needed).
HT8500T, advanced type externally modulated optic transmitter with it's high index, high reliability and excellent cost performance, is applicable for the over-long trunk of large and middle CATV station head-end, WDM system and CFG dispersion compensation system.
HT85210T :  2 fiber output, each port ≥10dBm, CNR ≥ 53.5dB, SBS: 13~19dBm continuously adjustable,ITU wavelength adjustable.

Product Features

1. Externally modulated technology for HT8500T optic transmitter, no laser chirp, low dispersion distortion, high extinction ratio, with excellent characteristic within 40~862MHz, used in the over-long trunk of large and medium sized cable television head-end.
2. 1+1 powers supply back , up hot-plug function available.
3. Narrow line width (Typ=0.35 MHz), low noise, and DFB continuous wave laser, be propitious to reduce dispersion effect.
4. The operating bandwidth is up to 47~1000MHz.
5. CNR ≥ 53.5dB and excellent CTB, CSO index.
6. SBS: 13~19dBm, continuous adjustable.
7. ITU standard wavelength adjustable , users can adjust and set the wavelength on the front panel with ±0.05nm stepping in the range of ±200GHz (±1.6nm), used in the network upgrading and expansion of WDM system.
8. AGC/MGC mode is optional at spot; OMI can be optimized at spot.
9. Perfect RS232 communicate interface.
10. Advanced SNMP network management function.
11. Casing temperature auto-control.

Main Application

1. Used in the over-long trunk and distribution net in the large and middle cable television central station head-end.
      Analogue digital hybrid transmission > 200Km (with dispersion compensation).
      Pure digital transmission (Without dispersion compensation) > 400Km,
                                                    (With dispersion compensation) >700Km.
2. VAS in DWDM fiber CATV system
3. CFG dispersion compensates system.

Technical Index


Performance Index Supplement
Optical
feature
Operating wavelength (nm) ITU-TG.692 standard wavelength
Wavelength ADJ. range (nm) ±1.6  ±200GHz
Wavelength ADJ. mode   ±0.05nm stepping
Wavelength stability (Pm/ºC) -1~0 Tc=20~70ºC
Linewidth (MHz) Typ.=0.35 FWHM( △λ ) ( -3dB fullwidth )
Side mode suppression ratio (dB) ≥45 SMSR
Equivalent noise intensity (dB/Hz) ≤-160 RIN ( 20~1000MHz )
Number of output port   2
Output power of each port (dBm) 7.0, 8.5, 10,11, 12, 13 2×7, 2×9, 2×10, 2×11, 2×12, 2×13
Return loss (dB) ≥50
Optical fiber connector   SC / APC Optional LC / APC,FC / APC
RF feature Work bandwidth (MHz) 47-862 Optional 47~ 1000MHz
Input level (dBmV) 18~28 AGC
Flatness (dB) ≤±0.75 47~862MHz
≤±1.5 862~1000MHz ( Optional )
Return loss (dB) >16
Input impedance (Ω) 75
RF port   F-Female
Link feature Transmit channel   PAL-D / 60CH PAL-D / 99CH
CNR1 (dB) ≥53.5 ≥52 Back to back
CNR2 (dB) ≥51.5 ≥50 65Km optical fiber, 0dBm receive
CTB (dB) ≤-65 ≤-65
CSO (dB) ≤-65 ≤-65
SBS restrain (dBm) 13~19 Adjustable
General feature SNMP network management interface   RJ45
Communication interface   RS232
Power supply (VAC) 90~265 50 / 60 Hz
(VDC) -48 30~72
Power Consume (W) ≤50 Single power works
Work temp. (ºC) -5~65 Machine temp. control automatically
Storage temp. (ºC) -40~85
Relative humidity (%) 5~95
Size (W)x(D)x(H)  ( " ) 19×15.2×1.75

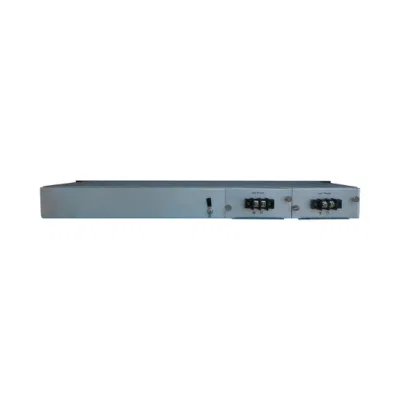

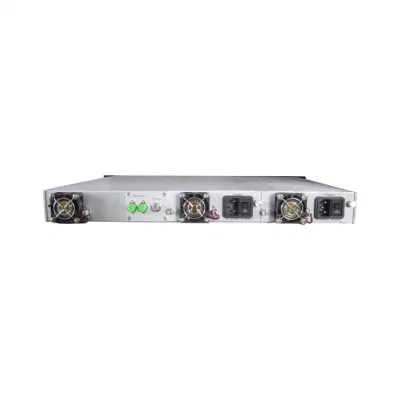

Guangtai Hot Promotion Laser External Modulation 1550nm Optical Transmitter Ht85210t Guangtai Hot Promotion Laser External Modulation 1550nm Optical Transmitter Ht85210t

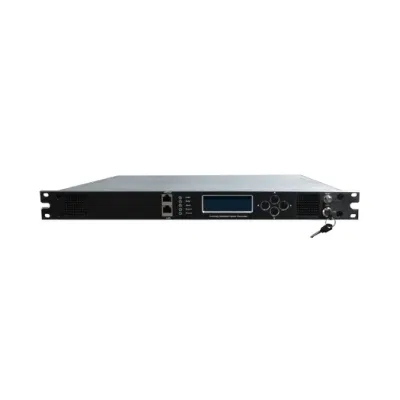

Guangtai Hot Promotion Laser External Modulation 1550nm Optical Transmitter Ht85210t

Flow Chart

Guangtai Hot Promotion Laser External Modulation 1550nm Optical Transmitter Ht85210t
Guangtai Hot Promotion Laser External Modulation 1550nm Optical Transmitter Ht85210t

Shipping Mode



Guangtai Hot Promotion Laser External Modulation 1550nm Optical Transmitter Ht85210t
Guangtai Hot Promotion Laser External Modulation 1550nm Optical Transmitter Ht85210t
Guangtai Hot Promotion Laser External Modulation 1550nm Optical Transmitter Ht85210t
Guangtai Hot Promotion Laser External Modulation 1550nm Optical Transmitter Ht85210t

Guangtai Hot Promotion Laser External Modulation 1550nm Optical Transmitter Ht85210t
Guangtai Hot Promotion Laser External Modulation 1550nm Optical Transmitter Ht85210t
Guangtai Hot Promotion Laser External Modulation 1550nm Optical Transmitter Ht85210t
