Hart 4-20mA Pressure Transmitter Module

Shop the Hart 4-20mA Pressure Transmitter Module at our factory store. Get reliable, high-performing pressure transmitters for industrial applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
H2088T
Customized
Customized
Power Supply
12-32VDC
Output
4-20mA with Hart (2-Wire)
Resolution
0.001%Fs
Dimension
Diameter=66mm
Mounting Hole Pitch
D=55mm
Operating Temperature
-20°c ~ +70°c
Warranty
1year
Transport Package
Paper Carton and as Buyer′s Requirement
Specification
About 50g
Trademark
BJZRZC
Origin
Beijing China
HS Code
902690000
Production Capacity
10000 PCS / Month

Product Description

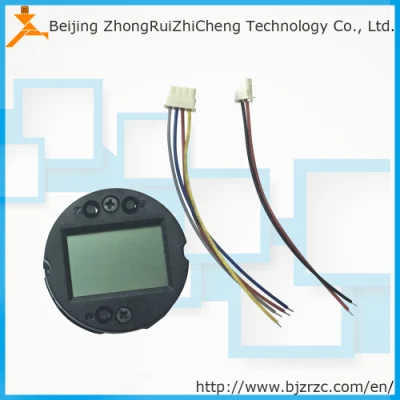

H2088T HART Pressure Transmitter

Hart 4-20mA Pressure Transmitter Module

Appliction

Used for

  Diffused silicon pressure sensor

  Ceramic capacitors senso

  Ceramic piezoresistive

  load cell, strain gauge,

  magnetic field sensor

  Resistor of 2/3/4 wires, etc.

Specifications

Power supply:

12-32VDC

Output:

4-20 mA with HART (2-wire)

Operating temperature

-20°C~+70°C(with LCD)

-40°C~+85°C

Dimension:

Diameter Φ=62mm

Resolution:

0.001%FS

Mounting hole pitch:

D=55mm

Weight:

About60g



Local Adjustment Operation Code List:

LEFT-BOTTOM '88'Display Function
0 or NONE Normal display.
1 Input operation code by KEY, user can input operation code such as 2,3,5,6 or 7, to perform corresponding function respectively.
2 PV Unit setting
3 PV Lower Range Value setting( Set LRV)
4 PV Upper Range Value setting( Set URV)
5 Damping setting
6 ZERO TRIM
7 Zero and span Migration
8 Output Characteristics [linear output, or Square root output ]
9 Low Trim
10 High Trim
11 Bias Setting


 Features
 1, High-voltage isolation:  As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit.

 2,Large range turndown

 3, Strong capability for anti-disturbance:  Leading military-grade hardware and software anti-disturbance technology, over-voltage protection, surge current, electrostatic shock and lightning protection.

 4, Multiple local operation functions: Range Values, PV Unit, Damp, Transfer Function(Linear/Square root ), Zero Trim, Lower Sensor Trim , Upper Sensor Trim and Data Restore.

 5, Flexible linearity and temperature compensation: The number of points for compensating temperature and pressure can be changed on demand.

 6, 360o rotation LCD display

 7, Multiple variables shown on the LCD:  More than one variable displayed on the LCD with backlight for dark environment.

 8, Data backup and restore

 9,  Easy to install and reliable with unique design.


Packaging & Shipping

Hart 4-20mA Pressure Transmitter Module



FAQ:

   1,Customer:  i want buy the samples to test, it is ok?
      Helen: of course,  not free sample, but when the next order, we will return the  samples money to your.
  2,Customer: when will you do the shippment after my payment ?
      Helen:  we have the in stock,   when we received the payment, i will ASAP send to your,(through DHL/ UPS/ TNT/FEDEX,etc)
   3,Customer:  How to pay?
      Helen: the Western union, Paypal,  person account,  TT ,and so on.

Samples samll quantity are avaliable at any time Welcome to contact us!

Beijing ZhongRuiZhiCheng Technology Co., Ltd.

  A professional engineering team with 15 Years HART/5 years Profibus R&D experiences
  80% Market share in China Mainland market for HART transmitters
  More than 1000k Units shipped per year
  One-stop Solution for various HART/Profibus transmitters
  Quick response in goods supply and post-sales support
  Globally distributed customers including China Mainland, Korea, India, America, Europe,  etc
Hart 4-20mA Pressure Transmitter Module
