HD CATV Modulator ATSC Digital Modulator

Get high-quality HD CATV Modulator ATSC Digital Modulator from our factory. We specialize in manufacturing top-grade modulators for digital TV systems.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Detailed Photos
  • Specification
  • Company Profile
  • Certifications
  • Exhibition
  • FAQ
Overview

Basic Info.

Model NO.
SKD2718
Product Name
Digital Modulator
Support Standard
ISDB-T, DVB-T, Dvbc(J.83A/C), Dtmb, ATSC+J.83b/D
Encoding Format
MPEG 2
RF Output
>105dBuV(0-20dB
RF Range
50~1000MHz by a Step 1MHz
Transport Package
Carton
Specification
20.5*16.5*4cm
Trademark
Souka/Support OEM
Origin
China
HS Code
8529901011
Production Capacity
1000

Product Description

Detailed Photos

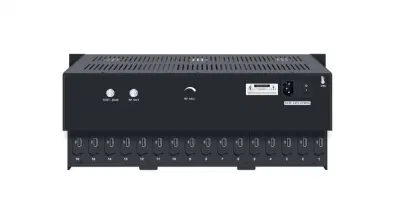

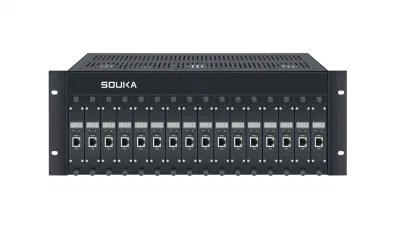

HD CATV Modulator ATSC Digital ModulatorBLADE TYPE HD ENCODER MODULATOR
FEATURES:



1. Blade type design for both stand alone and chassis used

2. Support MPEG 2 video encoding

3. Support input resolution up to 1080P_60

4. User friendly front panel operation for quick set up

5. Built-in Web UI allows easy set-up and control visa the web browser



Specification

INPUT
Input Connector HD 1.4
VIDEO Encoding MPEG 2
Input Resolution 1920*1080_60P; 1920*1080_50P; 1920*1080_60i;
1920*1080_50i; 1280*720_60P; 1280*720_50P
Bitrate 2 ~ 18 Mbps
AUDIO Encoding MPEG 1 Layer II
Sample Rate 32K/ 44.1K/ 48KHz
Bitrate 384kbps
OUTPUT SETTING
Output type ATSC DVB-C J.83A DVB-C J.83B DVB-T DTMB ISDB-T
Standard ATSC A/53 Annex A Annex B COFDM GB20600-2006 ARIB STB-B31
Bandwidth 6M 8M 6M 6M, 7M, 8M 8M 6M
Constellation 8VSB 16QAM, 32QAM, 64QAM, 128QAM, 256QAM 64QAM
256QAM
16QAM
64QAM
4QAM, 16QAM, 32QAM, 64QAM 16QAM, 64QAM
Other settings - Symbol rate: 3 ~6.952 Ms/s
Code rate

Guard Interval
- Code rate,
Guard Interval,
2K-8K
Interleaving,
Rate Code,
Carrier type,
Sync Frame,
PH Phase
Code rate,
Guard Interval,
2K-8K,
Interleave
OUTPUT
RF Output Level ≥ 30dBmV
Output Frequency Range 50 ~ 999.999MHz
Out-band Rejection ≥ 60dB
MER Typ. 38 dB
SYSTEM
Management Control Keys; NMS LCN Insertion YES
Language English Upgrade NMS
GENERAL
Power Supply DC12V 1A Power Consumption


Company Profile

    Dingshengwei Electronics Co.,Ltd (DSW) is dedicated to design, manufacture and sales of CATV analog,digital and IPTV modulator with our brand name SOUKA.
DSW obtained ISO9001:2008 certificate authorized by CQC. We have 100 in-house skillful workers, which ensures the punctual delivery date.

    And a professional engineer team made up of 10 senior RF engineers and 6 IT engineers to fulfil precise management over all projects honored by our customers.

As one of the most reliable suppliers in this field, we continually spare no efforts in developing DSW into a world recognized brand with trustworthy and solid reputation. DSW sincerely invites you to enjoy the fascinating experience of modern technology and excellent customer service provided for you by our professional staff.

At the forefront of technological trends and developments, DSW is with you each step of the way. Our products cover in analog modulator, digital modulator and IPTV device at the meanwhile we also can provide your a full soluiton in analog,digital and IPTV system.


    Our mission is making easy and efficient products. Our values are always to be reliable and innovative. We never stop to bring more products.
HD CATV Modulator ATSC Digital ModulatorHD CATV Modulator ATSC Digital Modulator
HD CATV Modulator ATSC Digital ModulatorHD CATV Modulator ATSC Digital ModulatorHD CATV Modulator ATSC Digital Modulator

Certifications



Exhibition

HD CATV Modulator ATSC Digital ModulatorHD CATV Modulator ATSC Digital ModulatorHD CATV Modulator ATSC Digital ModulatorHD CATV Modulator ATSC Digital ModulatorHD CATV Modulator ATSC Digital Modulator

FAQ

Q1: How to get a sample?
Sample order is acceptable. Please contact us and make sure what sample do you need.

Q2: How about the OEM/ODM service?
We provide all kinds of OEM/ODM service,
For example Logo printing on housing, Customized packing, Software Customization. Please contact with us to make sure the detail things before placing order.

Q3: What is your Lead time and method of Shipment?
We are factory, adequate inventory, Generally delivery within 3-5 workdays after payment confirmed, all goods have to go through 100% QC testing and Aging.
But please confirm the exact delivery time with us as different products and different quantities will have different leading times.
Shipping by International express TNT.Fedex,DHL,UPS door to door service, it will take 5-9 workdays to your designated address.

Q4: What's your Payment method supported?
We accept T/T bank transfer, Paypal(Credit Card), Western Union, MoneyGram,etc.

Q5: How about the packing and shipping?
Normally, we have a carton for packaging. If you have any other special requirements, please feel free to contact us.
