Product Description

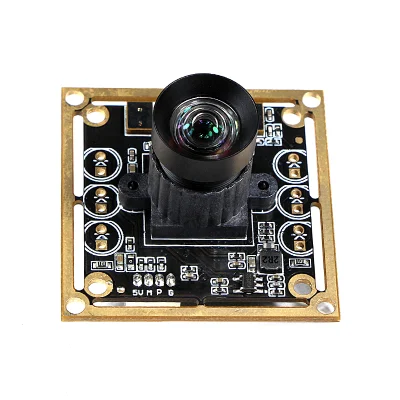

003-0766 is a USB 2.0 Camera Module adopts 1MP monochrome (black&white) global shutter sensor OV9281, assembled with a low distortion M12 lens which built-in an 850nm IR pass filter. This is one of our most popular Global Shutter Camera Modules. It's a 1MP, based on the 1/4″ monochrome global shutter OV9281 image sensor, UVC compliant, low distortion USB 2.0 camera.
Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.The global shutter sensor's excellent low-light sensitivity and 850nm IR pass filter make it shot crisp sharp and accurate complete black and white images even for the high-speed moving objects.
Resolution: 1MP 1280H x 800V; Frame Rates: MJPG 120fps@1280 x 800/720P, 210fps@640 x 400/320 x 240; YUY2 10fps@1280 x 800, 30fps@640 x 360; Field of View (FOV): 100 degree (diagonal)
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
Applications: The sensor's excellent low-light sensitivity and the low distortion lens with an 850nm pass filter allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection, and lunar and planetary imaging.
SPECS:
| Items | Parameters |
| SENSOR | OV9281 |
| Lens Size | 1/4'' |
| Most effective pixels | 1280*800 |
| Data Format | MJPG/YUY2 |
| Pixel Size | 3µm x 3µm |
| Lens | FOV :D= 89° |
| Optical length :15.29MM | |
| lens construction:2G2P | |
| mount :M12*P0.5mm | |
| F/NO:2.4 | |
| focusing | Fixed focus |
| Frame rate | 120fps |
| auto control | Saturation, Contrast, acutance, White balance, exposure |
| audio | High quality digital MIC, single or dual channel is optical |
| Voltage | USB 5V |
| working current | MAX 200mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20ºC to +70ºC |
| working Temperature | Change with environmental temperature |
| System compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
Camera
- Sensor: 1/4" OV9281
- Resolution: 1MP 1280 x 800
- Data Format: MJPG/YUY2
- Frame Rate: MJPG 120fps@1280 x 800/720P, 210fps@640 x 400/320 x 240; YUY2 10fps@1280 x 800, 30fps@640 x 360.
Lens
- Field of View (FOV):100 degree (D)
- Lens Mount: M12
- IR Sensitivity: 850nm IR pass filter, 850nm IR light only
- Focusing Range: 3.3ft (1M) to infinity
-TTL:15.29MM
Functionality and Compatibility
- Adjustable parameter: Contrast/ Saturation/ Exposure/ White balance
- System Compatibility: Win7/8/10, Linux, Mac, and OS with UVC driver
Power
- Power Supply: USB powered 5V
- Working Current: MAX 200mA
Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C).
- Dimension: 38mmx38mm (compatible with 32mmx32mm)
- Cable Length: 3.3ft (1M),1.5M, 1.8M etc, could be optioned.
APPLICATIONS
Robot Visual: Industrial Equipment
High Speed Motion: Intelligent Traffic, Sport etc.
Security: Monitoring Capture
Dashcam etc.
Company Profile:
Dongguan Hampo Electronic Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo has buildings 58 and 26 as production base, covering 13,000 square meters. We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly. Support OEM and ODM service.
Certifications:
FAQ
Q: Why choose camera module with global shutter?A: If your cameras need to capture moving objects and rapid movement sequences, then shutter type is a crucial criterion alongside sensor technology in determining the quality of the images. Since the advent of global shutter technology in CMOS sensors, there is now a more individual and flexible choice of suitable sensor technology for your application.
Q: How does a global shutter sensor work?
A: A global shutter exposes all lines of an image at the same time, 'freezing' the moving object in place. This prevents distortions, which makes global shutter technology the ideal choice for applications with moving objects and rapid movement sequences, including automatic license plate detection as part of traffic monitoring, for example.
.Q: What advantages this camera module has?
A:
1. High frame rates
2. High resolution
3. Crystal-clear images, even for very short exposures
4. Outstanding noise characteristics, even in poor lighting conditions
5. Broad dynamic range
6. High quantum efficiency of up to 70%
