Basic Info.
Model NO.
LT-CountingLine
Customized
Non-Customized
Condition
New
Warranty
5 Year
Item
Tablet Counting Line
Size
8000*1600*1900mm (Min.)
Material
Standard Ss304 (Ss316 Is Optional)
Optional Device
Cotton Inserter
Machine Consist
Ordering Machine
Documentation
Manual, Dq, Oq, Iq
Connection Style
L Shape
Power
380V 50Hz Three Phase (Customized)
Brand
Ltpm China
Transport Package
Wooden Case
Specification
CE, GMP, SGS, etc.
Trademark
LTPM China
Origin
Zhengjiang
HS Code
84224000
Production Capacity
25 Sets/Month
Product Description
Equipment introduction
01.Bottle Ordering machine
The machine adopts special mechanism (compressed air is not needed) to arrange disorderly bottles and keep their mouths upwards when they are delivered downstream. If the next working procedure lacks bottle, the unscramble machine will continue working to ensure working continuity. If bottles are jammed in the next working procedure, the machine will stop automatically. The machine has the function of photoelectric inspection to ensure reliable and smooth running. If bottle size is changed, you only need adjust width of bottle conveying lane and relevant template. It is easy to operate, so generally operators can master. The product conforms to requirements of GMP.
| Size of bottles | 20-300 ml |
| Output | 40-100 bottles/min |
| Power supply | 220V 60Hz |
| Power | 0.15KW |
| Overall dimension | 950*950*1110mm |

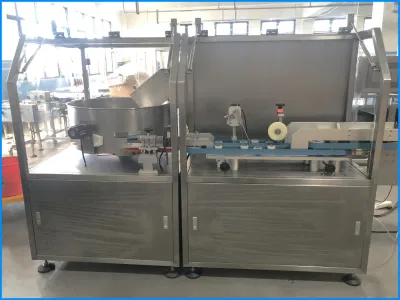

02.LTEC-24 Automatic Electronic counting machine This machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.
| Model Name | LTEC-24 |
| Hopper Volume | 60L |
| Capacity | 90 bottles(30 pcs/bottle)/min |
| Filling Quantity | 15-9999pcs/bottle (adjustable) |
| Bottle Size | Diameter: 30-75mm Height:40-250mm |
| Counting Size | Thickness: 3-10mm Diameter: 3-15mm Length: 3-30mm |
| Compressed air | 0.5Mpa |
| Conveyor Belt Length | 2400mm |
| Machine Weight | 500kg |
| Machine Size L × W × H (mm) | 2000*1600*1680mm |
03.Desiccant Inserting Machine The machine applies automatic controlling system to take the place of the previous manual operation. The machine can automatically cut the belted desiccant and insert the desiccant bag into the container accurately and speedily. It is available for bottles and pots made of different materials. It features double-lane photoelectric positioning, intelligent feeding length controlling and automatic adjustment of accumulated length error. The electronic controlling system ensures the machine starts when bottles reach working position and stops when bottles are insufficient automatically. The product conforms to the requirements of GMP completely.
| Bottle Size | 20-300ml |
| Output | 40-100bottles/min |
| Power Supply | 220v 60Hz |
| Power | 0.85kw |
| Overall Dimension | 1250*630*1750mm |

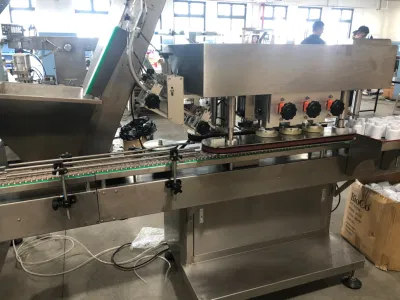

The bottle caps neatened by the cap neatening device ,the bottle caps with mouth up are carried to the caps collecting guideway, the bottles come from other equipment of the assembly line enter the caps collecting area. The bottles move ahead with clamping of the two sides clamping device then the caps match the bottles automatically. The cap pressing device press the caps to the pre-tight situation before rotating the caps. Under the function of three pairs of high speed rotating wearable rubber wheels, the caps match with the bottles tightly.
Features: 1.Strong compatibility ,suitable for various sizes of cap shape,bottle shape.
2.A pair of cap dropping and wearing device suit for all kinds of bottle caps.
3.Cap unscrewing torque control, ensure the quality of the screw cap (optional)
4.Oscillating swivel wheel, strength is more suitable, greatly reduce the swivel wheel wear
5.No bottle or cap ,no work .By testing, it will wipe out the skew,inverse caps and caps without aluminium foil .It has the function of fault self examining and any other check warning control functions ,so it can ensure the continuity and accuracy
6.Operate automatically ,intelligently control with the last and next process, with good Harmony .Special operating person is not necessary so it can save labor cost.
| Applicable bottle shape | 20~500ml of round,oblate,square,flat square bottle |
| Capacity | 50~120 bottles per minute |
| Cap size | φ25-φ50mm |
| Machine Size | 1850×600×1560mm |
| Weight | 600kg |
| Power supply | AC220V 50Hz1.8kw |
| Air pressure | 0.6Mpa |

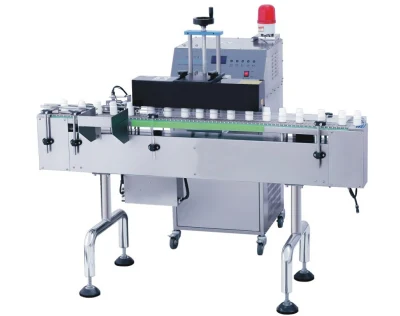

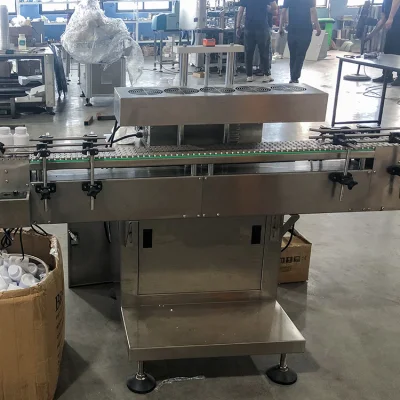

05.LTLF-1 Automatic Induction Aluminum Foil Sealing Machine Intermediate frequency power supply of the machine makes effective output power great and output current adjustable. It also auto tracks change of current load and makes adjustment in time. The machine is available for various bottles. The special sealing induction plate is completely shielded without electromagnetic pollution and its safety is superior to high-frequency power supply. Coding system of the machine adopts built-in water circulation to save water consumption and reduce water pollution; it also has pressurizing system which features good cooling conditions, short sticking time, firm sealing and high stability.
| Bottle Size | 20-300ml |
| Output | 50-120bottles/min |
| Diameter of caps | Smaller than 60mm |
| Height of bottle | 220mm |
| Power Supply | 220V 60Hz |
| Power | 2Kw |
| Overall Dimensions | 1300*780*1750mm |
06.MT-200 Labeling machine MT-200 Labeling machine in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling.
The machine can be used or pharmaceutical, chemical and foodstuff Industry labeling.
Application Products
Company Introduction
Our Company
Zhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world.
LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional, Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as "A Pharma Machinery Division, For A Better Life", creating a Win-Win Platform for our clients and staff for a better life is our vision.
LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional, Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as "A Pharma Machinery Division, For A Better Life", creating a Win-Win Platform for our clients and staff for a better life is our vision.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, S
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
