Basic Info.
Model NO.
TF-SFP-2.5G-80
Interface
LC
Max Data Rate
2.5g
Transport Package
by Carton
Specification
45*13.9*12.5
Trademark
TELEFLY or OEM
Origin
China, Shenzhen
HS Code
8517629900
Production Capacity
50000
Product Description

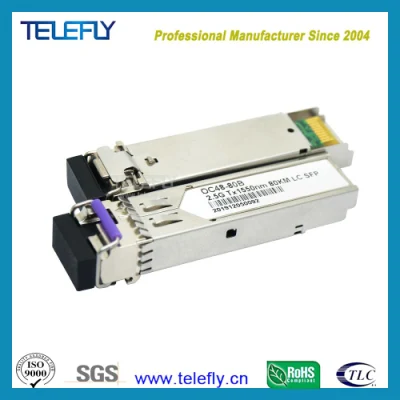

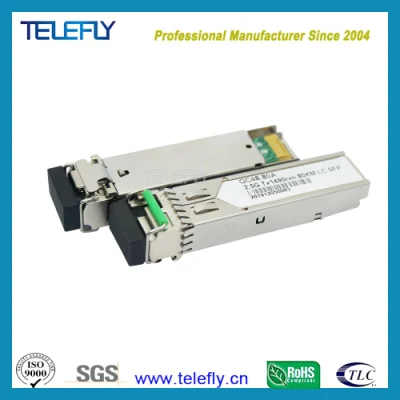

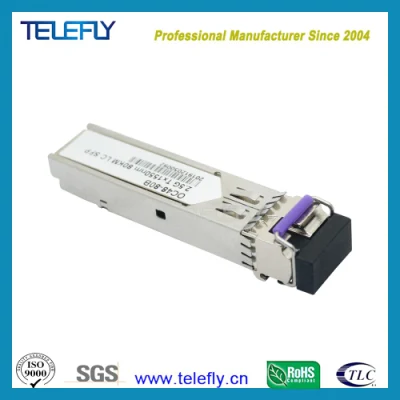

Duplex Finisar Fiber Optical 2.5G 80km LC Ddm Finisar SFP
Description
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 2.488Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features
* Up to 2.488Gb/s bi-directional data links
1550nm DFB laser and APD photodetector for 80km transmission
* Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
* Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
* Compatible with RoHS
* +3.3V single power supply
* Operating case temperature:
Standard : 0 to +70°C
Extended : -20 to +85°C
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 2.488Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features
* Up to 2.488Gb/s bi-directional data links
1550nm DFB laser and APD photodetector for 80km transmission
* Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
* Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
* Compatible with RoHS
* +3.3V single power supply
* Operating case temperature:
Standard : 0 to +70°C
Extended : -20 to +85°C
Mechanical Dimensions

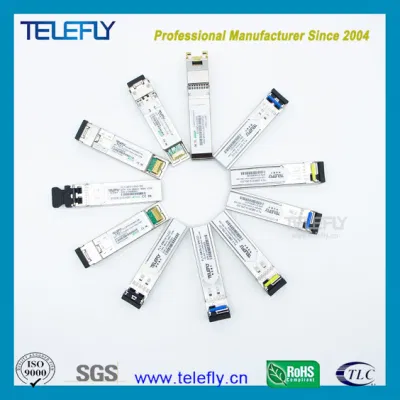

Ordering information
| Part Number | Product Description |
| TF-OC48-0.55 | 850nm, 2.488Gbps, 550m, 0ºC ~ +70ºC |
| TF-OC48-0.55D | 850nm, 2.488Gbps, 550m, 0ºC ~ +70ºC, With Digital Diagnostic Monitoring |
| TF-OC48-0.55I | 850nm, 2.488Gbps, 550m, -20ºC ~ +85ºC |
| TF-OC48-0.55ID | 850nm, 2.488Gbps, 550m, -20ºC ~ +85ºC, With Digital Diagnostic Monitoring |
| TF-OC48-10 | 1310nm, 2.488Gbps, 10km, 0ºC ~ +70ºC |
| TF-OC48-10D | 1310nm, 2.488Gbps, 10km, 0ºC ~ +70ºC, With Digital Diagnostic Monitoring |
| TF-OC48-10I | 1310nm, 2.488Gbps, 10km, -40ºC ~ +85ºC |
| TF-OC48-10ID | 1310nm, 2.488Gbps, 10km, -40ºC ~ +85ºC, With Digital Diagnostic Monitoring |
| TF-OC48-40 | 1310nm, 2.488Gbps, 40km, 0ºC ~ +70ºC |
| TF-OC48-40D | 1310nm, 2.488Gbps, 40km, 0ºC ~ +70ºC, With Digital Diagnostic Monitoring |
| TF-OC48-40I | 1310nm, 2.488Gbps, 40km, -40ºC ~ +85ºC |
| TF-OC48-40ID | 1310nm, 2.488Gbps, 40km, -40ºC ~ +85ºC, With Digital Diagnostic Monitoring |
| TF-OC48-80D | 1550nm, 2.488Gbps, 80km, 0ºC ~ +70ºC, With Digital Diagnostic Monitoring |
| TF-OC48-80ID | 1550nm, 2.488Gbps, 80km, -20ºC ~ +85ºC, With Digital Diagnostic Monitoring |
