Basic Info.
Model NO.
IP-330H
Focal Length
Zoom Lens
Horizontal Resolution
800tvl
Sensor Size
1/4 inch
Product Name
High Speed Outdoor Dome IP Camera
Model Number
IP-330h
Sensor Type
1/4 Sony CCD
Compression
H.264
Zoom
27X Optical Zoom
IR Distance
120 Meters
IR LED
12PCS 1W 2W LED
Pan/Tilt
Pan: 360degree, Til: 90degree
Waterproof Level
IP66
Size
9" Housing, Metal Housing
Transport Package
Natural Package
Specification
CE, FCC, RoHS
Trademark
SHIXIN OR OEM
Origin
Shenzhen, China
HS Code
8529904100
Production Capacity
1000PCS/Month
Product Description

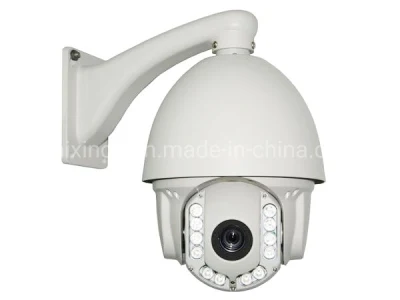

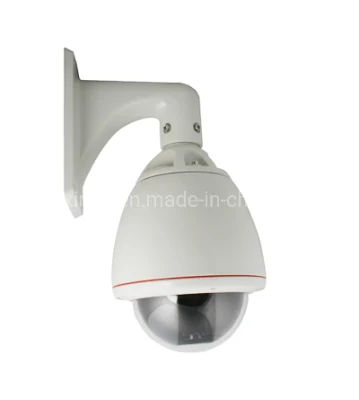

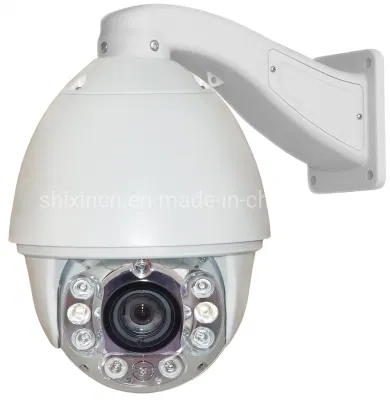

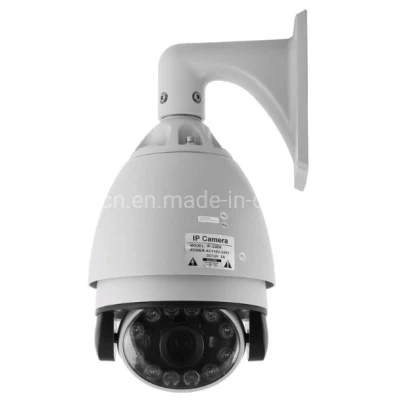

Waterproof Camera for Outdoor with Night Vision IR 150m High Speed Dome PTZ Camera (IP-330H)
Waterproof Camera, IR Camera, Night Camera, PTZ Camera, Outdoor IP Camera
High speed Dome PTZ camera (9'' housing for choosing)
Explosion-proof IP66; Day/Nigh 12PCS IR LED lights, Distance 120M
Horizontal resolution 800 TVL
H. 264 compression
Focus: AUTO/Manual
Iris: AUTO/Manual
Zoom: F=4.1- 73.8mm
256 Presets and 1 cruise scanning section
Continuous 360° Horizontal Rotation and 180° Vertical Auto Flip
IR LED power adjusted automatically according to the zoom, avoid the flashlight effect.
| Serial No. | Type | Specification |
| CCD module | Image sensor | 1/4 SONY CCD, 800TVL |
| Lens | Zoom: 3.9-85.8mm, 27X Optical Zoom | |
| Min. illumination | 0.5LUX / F1.2 | |
| Day/night | IR | 12pcs IR Led lights, Distance 120/150M |
| Video | Compressed format | H. 264 |
| Resolution | D1(720× 576) Half-D1(576× 354) CIF(352× 288) QCIF(176× 144) | |
| Max frames per second | 30fps@D1(NTSC) | |
| 25fps@D1(PAL) | ||
| Audio | Audio encoding format | G. 711 ADPCM |
| Microphone | Connect to pickup | |
| Software | WEB IE Browser | IE 6.0 or higher |
| Security | Password protection, 3 levels visitors | |
| Client | Display at most 5X6 pictures at a time/Multiple pages switching/Timed record | |
| Security | Password Protection: Configured by the Administrator | |
| Hardware | CPU | 32 Bit ARM9 RISC Core |
| Operate System | Embedded Linux system | |
| DDR | 256M | |
| Flash memory | 32M | |
| Internet | Net port | 10/100M Ethernet port (RJ45) |
| Net protocol | TCP/IP. UDP. HTTP. DHCP. PPPoE. FTP. UPNP. DDNS. SMTP. NTP. TFTP | |
| Outside Port | GPIO port | 1ch input Alarm, 1ch output Alarm |
| SD Card | Support (option) | |
| Video port | 1ch output video. (Multiple video format NTSC/PAL) | |
| Audio port | 1ch input audio | |
| Function | OSD | support |
| DDNS | Have professional Viewipcam. net and many other international famous server for your choosing | |
| User management | Administrator, common user, anonymous user. (Max. viewer: 10) | |
| video adjustment | brightness, contrast and saturation | |
| Bandwidth | By adjusting the compression, frame and resolution, it can be used to different bandwidth | |
| Motion detection | Motion detection alarm can send pictures to the appointed Email or send AV video to appointed FTP. You can setup the alarm time and area as you like | |
| Patrol | 5( programmable) | |
| Preset | 255 | |
| Pan Operation Speed | 0.1-250 degrees/s | |
| Pan Patrol Speed | 360 degrees/s | |
| Tilt Operation Speed | 0.1-150 degrees/s | |
| Tilt Patrol Speed | 90/180 degrees/s | |
| Pan Rotation Angle | 360 degrees continuously | |
| General | Power supply | Input AC 100-240 V 50/60Hz |
| Output DC12V 5A | ||
| Work Environment | Temperature: -10° C- 55° C Humidity: 0% - 80%RHG(Waterproof) | |
| Power | 8W |
