80km SFP Module 1.25g Gigabyte SFP Transceiver Single Mode Fiber 1490/1550nm

Get reliable and high-quality 80km SFP Module 1.25g Gigabyte SFP Transceiver Single Mode Fiber 1490/1550nm from our factory. Enjoy top performance and long-distance connectivity.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Certifications
  • Ordering Informations
  • Customer′s Feedbacks
Overview

Basic Info.

Model NO.
SFP-GE-BX80-L45/54
Condition
New
Product Name
1.25g SFP Transceiver
Fiber Type
Single Mode Single Fiber
Voltage
3.3V
Data Rate
1.25GB/S
Ddm/Dom Support
Yes
Fiber Connector
Sm Bidi LC
Warranty
2years
Distance
80km
Form Type
SFP
Wavelength
1490/1550nm
Material
Iron
Working Temperature (°c)
0~70 Degree
Compatible
Cisco, Huawei, HP etc.
Transport Package
10PCS/Tray, 600PCS/Carton
Specification
0.025KG/pc
Trademark
UTOPTEK
Origin
Shenzhen, China
HS Code
8517706000
Production Capacity
15000PCS/Day

Packaging & Delivery

Package Size
16.50cm * 10.00cm * 5.50cm
Package Gross Weight
0.500kg
Lead Time
7 days (1 - 1 Pairs)
To be negotiated ( > 1 Pairs)

Product Description

1.25G bidi LC 80km 1490/1550nm fiber optical sfp transceiver module best price

Brand UTOPTEK, OEM
Condition 100% New
Form Factor SFP
Wavelength: Tx1490nm/Rx1550nm
Distance 80KM
Data Rate (max) 1.25G
Working Temperature (°C) 0°C~70°C

Storage Temperature (°C)

  -40°C~+85°C

Relative Humidity

  0~85%
Voltage Supply 3.3--5v
Connector LC
Warranty 3 years
Compatible with Cisco, Huawei, HP etc.
Time of delivery 2-4 working days
Package 10 pcs/box


Product Description

The SFP-GE-BX120-L45/54 Transceivers is a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a APD receiver and the transmitter uses a 1490 nm DFB laser, up to 31dB link budge ensure this module 1000Base-ZX Ethernet 80km application.


Product Features:
  1. SFP package with LC connector
  2. 1490nm DFB Laser and 1550nm PIN photodetector
  3. 1550nm PIN Laser and 1490nm DFB photodetector
  4. Up to 80Km transmission on SMF
  5. +3.3V single power supply
  6. LVPECL compatible data input/output interface
  7. Low EMI and excellent ESD protection
  8. laser safety standard IEC-60825 compliant
  9. Compatible with RoHS
  10. Compatible with SFF8472

Application:
  1. 1.25Gb/s 1000Base-ZX Ethernet
  2. Metro/Access Networks
  3. 1×Fiber Channel
  4. Other Optical Links

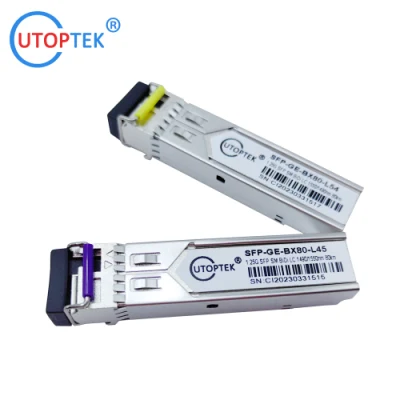

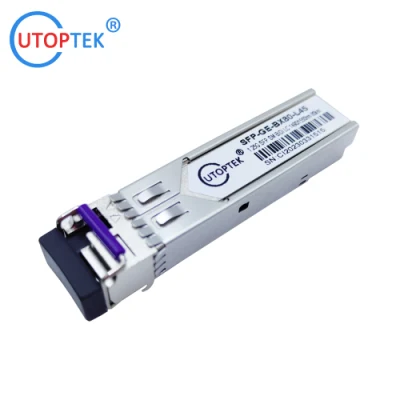

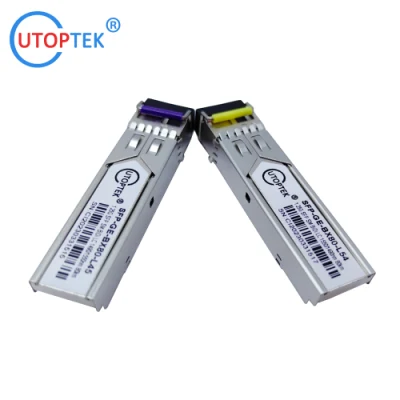

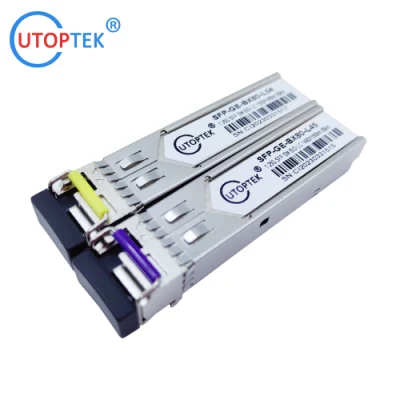

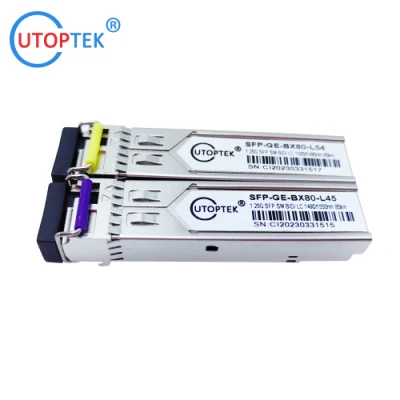

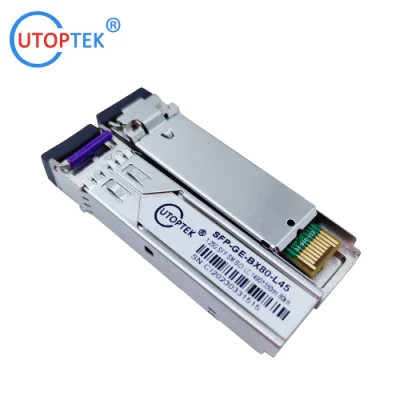

Detailed Photos

80km SFP Module 1.25g Gigabyte SFP Transceiver Single Mode Fiber 1490/1550nm

80km SFP Module 1.25g Gigabyte SFP Transceiver Single Mode Fiber 1490/1550nm 80km SFP Module 1.25g Gigabyte SFP Transceiver Single Mode Fiber 1490/1550nm
80km SFP Module 1.25g Gigabyte SFP Transceiver Single Mode Fiber 1490/1550nm
Factory Show80km SFP Module 1.25g Gigabyte SFP Transceiver Single Mode Fiber 1490/1550nmHigh Compatibility for all Brands
80km SFP Module 1.25g Gigabyte SFP Transceiver Single Mode Fiber 1490/1550nm

Certifications

80km SFP Module 1.25g Gigabyte SFP Transceiver Single Mode Fiber 1490/1550nm

Ordering Informations



1.25Gbps SFP Transceiver

Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
SFP-GE-SX850 1.25Gb/s SFP 550m 850nm VCSEL PIN LC 0-70ºC
SFP-GE-SX1310 1.25Gb/s SFP 2km 1310nm FP PIN LC 0-70ºC
SFP-GE-LX20 1.25Gb/s SFP 20km 1310nm FP PIN LC 0-70ºC
SFP-GE-EX40 1.25Gb/s SFP 40km 1310nm DFB PIN LC 0-70ºC
SFP-GE-EX40 1.25Gb/s SFP 40km 1550nm DFB PIN LC 0-70ºC
SFP-GE-ZX60 1.25Gb/s SFP 60km 1550nm DFB PIN LC 0-70ºC
SFP-GE-ZX80 1.25Gb/s SFP 80km 1550nm DFB PIN LC 0-70ºC
SFP-GE-ZX100 1.25Gb/s SFP 100km 1550nm DFB PIN LC 0-70ºC
SFP-GE-ZX120 1.25Gb/s SFP 120km 1550nm DFB APD LC 0-70ºC
SFP-GE-ZX160 1.25Gb/s SFP 160km 1550nm DFB APD LC 0-70ºC
SFP-GE-BX03-L35 1.25Gb/s BiDi SFP 3km Tx1310nm/Rx1550nm FP PIN LC/SC 0-70ºC
SFP-GE-BX03-L53 1.25Gb/s BiDi SFP 3km Tx1550nm/Rx1310nm FP PIN LC/SC 0-70ºC
SFP-GE-BX10-L35 1.25Gb/s BiDi SFP 10km Tx1310nm/Rx1550nm FP PIN LC/SC 0-70ºC
SFP-GE-BX10-L53 1.25Gb/s BiDi SFP 10km Tx1550nm/Rx1310nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX20-L35 1.25Gb/s BiDi SFP 20km Tx1310nm/Rx1550nm FP PIN LC/SC 0-70ºC
SFP-GE-BX20-L53 1.25Gb/s BiDi SFP 20km Tx1550nm/Rx1310nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX20-L34 1.25Gb/s BiDi SFP 20km Tx1310nm/Rx1490nm FP PIN LC/SC 0-70ºC
SFP-GE-BX20-L43 1.25Gb/s BiDi SFP 20km Tx1490nm/Rx1310nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX40-L35 1.25Gb/s BiDi SFP 40km Tx1310nm/Rx1550nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX40-L53 1.25Gb/s BiDi SFP 40km Tx1550nm/Rx1310nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX40-L34 1.25Gb/s BiDi SFP 40km Tx1310nm/Rx1490nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX40-L43 1.25Gb/s BiDi SFP 40km Tx1490nm/Rx1310nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX60-L35 1.25Gb/s BiDi SFP 60km Tx1310nm/Rx1550nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX60-L53 1.25Gb/s BiDi SFP 60km Tx1550nm/Rx1310nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX60-L34 1.25Gb/s BiDi SFP 60km Tx1310nm/Rx1490nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX60-L43 1.25Gb/s BiDi SFP 60km Tx1490nm/Rx1310nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX80-L35 1.25Gb/s BiDi SFP 80km Tx1310nm/Rx1550nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX80-L53 1.25Gb/s BiDi SFP 80km Tx1550nm/Rx1310nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX80-L45 1.25Gb/s BiDi SFP 80km Tx1490nm/Rx1550nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX80-L54 1.25Gb/s BiDi SFP 80km Tx1550nm/Rx1490nm DFB PIN LC/SC 0-70ºC
SFP-GE-BX100-L45 1.25Gb/s BiDi SFP 100km Tx1490nm/Rx1550nm DFB APD LC/SC 0-70ºC
SFP-GE-BX100-L54 1.25Gb/s BiDi SFP 100km Tx1550nm/Rx1490nm DFB APD LC/SC 0-70ºC
SFP-GE-BX120-L45 1.25Gb/s BiDi SFP 120km Tx1490nm/Rx1550nm DFB APD LC/SC 0-70ºC
SFP-GE-BX120-L54 1.25Gb/s BiDi SFP 120km Tx1550nm/Rx1490nm DFB APD LC/SC 0-70ºC

SFP-GE-CW40-xx 1.25Gb/s CWDM SFP 40km 1270 ~1610nm DFB PIN LC 0-70ºC
SFP-GE-CW60-xx 1.25Gb/s CWDM SFP 60km 1270 ~1610nm DFB PIN LC 0-70ºC
SFP-GE-CW80-xx 1.25Gb/s CWDM SFP 80km 1270 ~1610nm DFB PIN LC 0-70ºC
SFP-GE-CW120-xx 1.25Gb/s CWDM SFP 120km 1470 ~1610nm DFB APD LC 0-70ºC

SFP-GE-DW40-CHxx 1.25Gb/s DWDM SFP 40km 1528.77~1563.86nm Cooled DFB APD LC 0-70ºC
SFP-GE-DW80-CHxx 1.25Gb/s DWDM SFP 80km 1528.77~1563.86nm Cooled DFB APD LC 0-70ºC
SFP-GE-DW120-CHxx 1.25Gb/s DWDM SFP 120km 1528.77~1563.86nm Cooled DFB APD LC 0-70ºC
SFP-GE-DW160-CHxx 1.25Gb/s DWDM SFP 160km 1528.77~1563.86nm Cooled DFB APD LC 0-70ºC

Customer's Feedbacks

80km SFP Module 1.25g Gigabyte SFP Transceiver Single Mode Fiber 1490/1550nm80km SFP Module 1.25g Gigabyte SFP Transceiver Single Mode Fiber 1490/1550nm


FAQ:
Q1 . What's your MOQ?
A1 .1 pc/pair is ok, we don't have MOQ limited.

Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.

Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.

Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.

Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.

Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
