Product Description
Product Interview:
This product adopts new technique, new material and new component with features of high output power, small volume, light weight,etc. And it is with the function of stable over-voltage, over-current, zero position switching protection, 0.75 times voltage latch function, equipped with time relay, can set audio alarm when testing. The whole device is reliable, easy to operate and carry, especially applies to the power department field tests.1. Conductivity current test for valve arrester
2. DC withstand voltage test and leakage current measurement for power transformer
3. DC withstand voltage test and leakage current measurement for high voltage cable (35~500kV and below)
4. U1mA DC reference voltage test and 0.75U1mA leakage current test for zinc oxide arrester
Main Features:
1. High precision and accurate measurement. Voltmeter on control cabinet display the voltage applied to load tested equipment. No need to add voltage divider, easy to wire. Equipped with high and low voltage end to measure leakage current. High voltage end adopts round shield digital indication displaying, not worrying discharge shock. It has excellent anti-jam function, which suitable for field operation.
2. With stable voltage regulation, the regulation is smooth at whole range. The output voltage regulation adopts imported single multiturn potentiometer. Stable boost process and high accurate adjustment.
3. With negative polarity output, zero start, continuous adjustment, over-voltage, over-current, zero position, grounding
protection, special break-line protection functions. It can protect circuit automatically, perfect and reliable protection make
safe operation.
4. Adopt advanced technology, medium frequency circuit and latest PWM pulse width modulation technology and high power IGBT, which make more stable high voltage output and smaller ripple factor.
5. With 0.75 times voltage conversion, convenient to test Zinc Oxide arrester.
6. Over-voltage setting use digital dial switch, displaying data directly and visually (unit KV).
7. The sampling adopts special nanosecond sensor and nanosecond optical isolation element, which can quickly and completely shut off the DC main circuit to protect the instrument from damage.

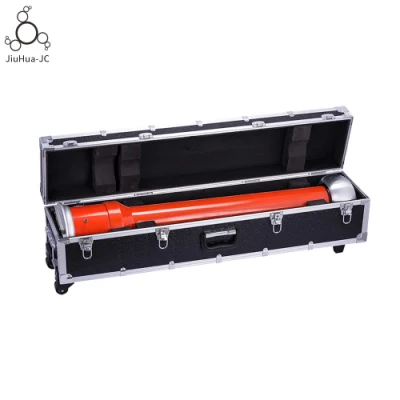

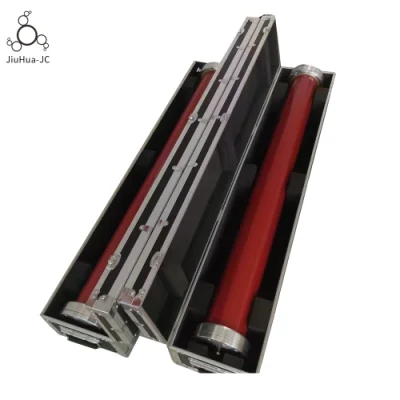

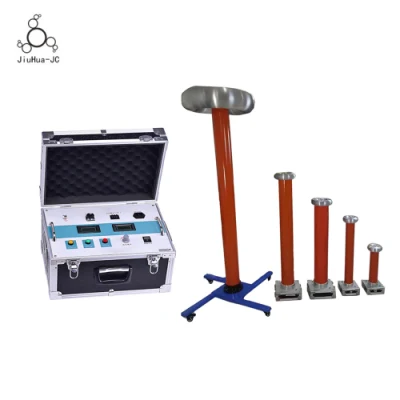

8. The cylinder adopts new material, light and stable. With 3 support feet at bottom, increase the stability. The outer surface of the cylinder is coated with special insulation materials, good electrical performance, strong moisture capacity, no leakage.

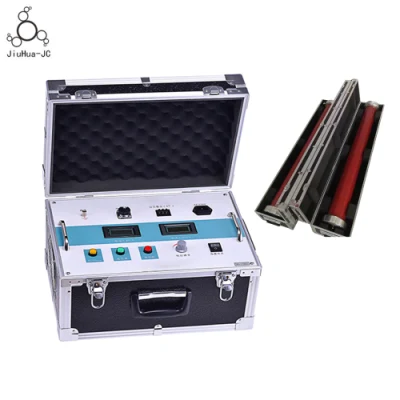

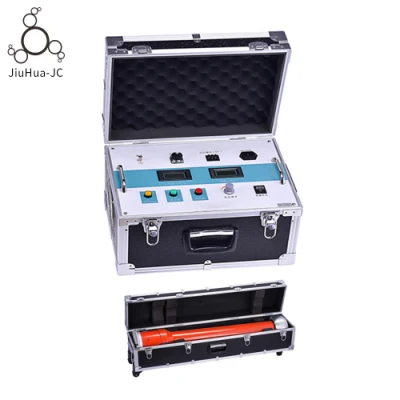

9. Case is made of aluminum alloy with small volume, light weight, good appearance, more stable, easy to operate, full function, convenient to use on site.
Technology Parameters:
| Model | 200/2 | 200/3 | 200/5 | 200/10 |
| Rated voltage(kV) | 200 | 200 | 200 | 200 |
| Rated current(mA) | 2 | 3 | 5 | 10 |
| Rated power(W) | 400 | 600 | 1000 | 2000 |
| HV control unit(kg) | 5.5 | 6 | 6.5 | 6.5 |
| HV Cylinder weight(kg) | 8.7 | 9 | 9 | 11 |
| Cylinder height(mm) | 970 | 970 | 970 | 1250 |
| voltage accuracy | ±(1.0%read+2b) | |||
| Accuracy of current | ±(1.0%read+2b) | |||
| ripple factor | ≤0.5% | |||
| voltage stability | When voltage change±10% stability≤1% | |||
| overload capacity | The no-load voltage can exceed the rated voltage by 10% for 10 minutes | |||
| Max charging current is 1.25 times rated current | ||||
| Power supply | Single phase current 50Hz 220V±10% | |||
| Working way | Intermittent use: rated load for 30 minutes | |||
| 1.1 times rated voltage: 10 minutes | ||||
| Work condition | temperature:-10ºC~+40ºC | |||
| relative humidity:less than 85% under 25ºC, without moisture | ||||
| altitude:1500M below | ||||
| capacitive load capacity | The capacity of the test object is unlimited | |||
| It can be charged at 1.5 times rated current | ||||
| structure | Electrical insulation voltage cylinder | |||
| Air insulation, no leakage | ||||
| High voltage control unit feature | High accuracy 0.75UDC1mA One touch button(accuracy≤1.0%),Suitable for zinc oxide arrester test | |||
| Overvoltage protection using digital dialing switch, clear at a glance | ||||
| Portable case, more convenient on site | ||||
| Protection function | Internal over voltage protection, internal over current protection | |||
| External overvoltage protection (protection voltage can be set), external overcurrent protection or breakdown protection | ||||
| Internal power protection | ||||
| Non-zero start protection | ||||
| Timed sound alarm | ||||
| Serial Number | Name | Amount | Serial Number | Name | Amount |
| 1 | Control cabinet | one | 7 | Fuse | two |
| 2 | High pressure doubler | one | 8 | Ground lead | one |
| 3 | High voltage cable | two | 9 | Micro-ampere meter | one |
| 4 | Discharging rod | one | 10 | Specification | one |
| 5 | Water resistance | one | 11 | Inspection Report | one |
| 6 | Power line | one | 12 | Certification | one |
FAQ 1. Is your company a sales company or a manufacturer?
Our company is an industrial and trade enterprise, with our own factory and lab, self-produced and self-sold. We were founded in 2013 and have 12 years of production experience, which has reliable production lines, test rooms and R&D centers.
2. Whether the goods are in stock, whether they can be customized, and how long the delivery time?
After the goods have been ordered, it takes about 7 working days for production if there are no accidents.
3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is in well package with fast shipping.
4. What are the after-sales terms?
We offer free consulting service, 1 year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
6.Is customization supported?
We support customization in language use according to your requirement if the quantity ordered reaches.
