Basic Info.
Model NO.
AT-5555
Certification
CE, RoHS
1
Am/FM/USB/Lsb/PA/Cw
2
Asq
3
Large LCD Display
4
Frequency Band a/B/C/D/E/F
Transport Package
Gift Box
Trademark
Luiton
Origin
China
Production Capacity
50, 000PCS
Product Description
27MHZ CE,ROHS at-5555 AM FM USB LSB PW CW vehicle transceiver:
Big LCD which displays frequency and all kinds of information
DUAL-DIGITAL TUBE FOR CHANNEL DISPLAY
USE EL technology for backlight
PA,CW,AM,FM,USB,LSB mode
A,B,C,D,E,F
bands in total, with 60 channels at most in each band to be programmed.
Frequency Tuning Step can be 10HZ, 100HZ, 1KHZ or 10KHZ.
Multiple CLARIFIER Operating Modes
Flexible menu functions and PC programming software to meet varied customer demands
ECHO Function
SQ, ASQ Function (FM and AM mode only)
RF GAIN ADJUSTMENT
RF PWR ADJUSTMENT
SCAN FUNCTION
RB FUNCTION
NB/ANL FUNCTION
DW DUAL-WATCH FUNCTION
BEEP VOICE PROMPT
+10KHZ Function
SWR,S/RF,DC Voltage display function
TOT function
HI-CUT FUNCTION
EMG CALL
SWR PROTECTION
POWER SUPPLIED VOLTAGE PROTACTION
Key-Lock Function
General | |
| Frequency Range | 28.000-29.700MHz 25.615-30.105MHz(Programmable) |
| Frequency Band | A/B/C/D/E/F |
| Channel | 60channels(programmable) in each band |
| Frequency Control | Phase-Locked-Loop Synthesizer |
| Frequency Tolerance | 0.005% |
| Frequency Stability | 0.001% |
| Temperature Range | -30°C~+55°C |
| Microphone | Plug-in dynamic; with push-to-talk /UP/DN/ASQ switch and coiled cord |
| Input Voltage | DC 13.8V normal,15.9V max;11.7V min Transmit:AM full mod 5A Receiver:Squelched 0.6A SSB 30W PEP output 9A |
| Size | 28*25*6CM |
| Weight | 2.8KG |
| Antenna Connector | UHF,SO239 |
| Transmitter | |
| Power Output | AM/CW:1-12W(adjustable) FM:2-40W(adjustable) USB/LSB:0-30W(adjustable) |
| Modulation | High and low level class B Amplitude Modulation:AM Varied Capacitance Frequency Modulation:FM |
| Inter-modulation Distortion | SSB:3rd order,more than-25dB; 5th order,more than -35dB |
| SSB Carrier Suppression | 55dB |
| Unwanted Sideband | 50dB |

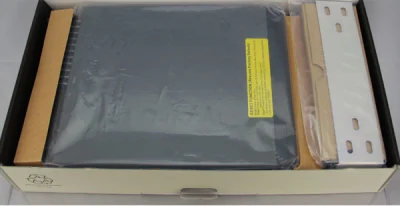

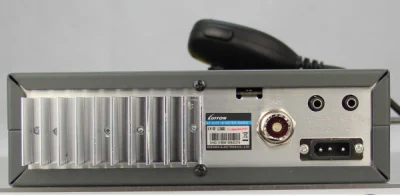

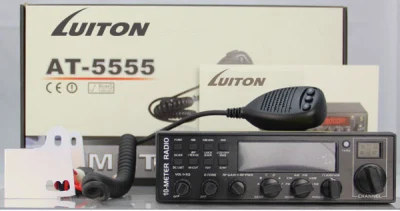

Photos:
Packaging & Shipping
· 1x radio body
· 1xDC power line
· 1xMicrophone
· 1x Mounting Bracket
· 1x User's Manual
