Basic Info.
Model NO.
SWLA-000430G38
Model Number
Swla-000430g38
Frequency Range
10MHz~43GHz
Gain
38.0dB
Noise Figure
4.5dB
Intput Vswr
2.0
RF Connector
2.92mm Female
Past Output Power
15.0dBm
P1 Output Power
13.0dBm
Transport Package
Standard Packing
Specification
55g (typ. )
Trademark
OEM
Origin
Nanjing, China
Production Capacity
30000pices/Year

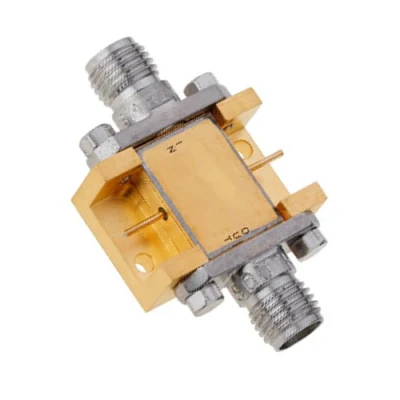

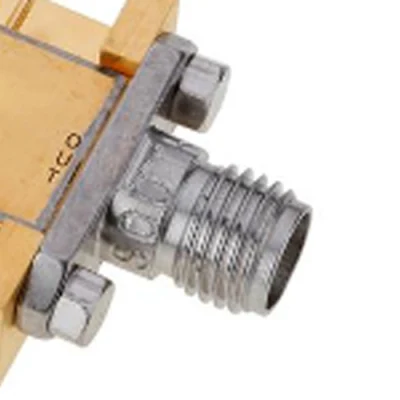

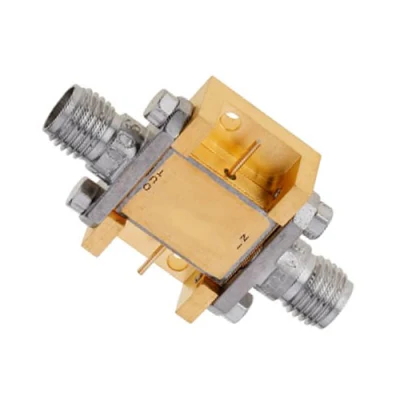

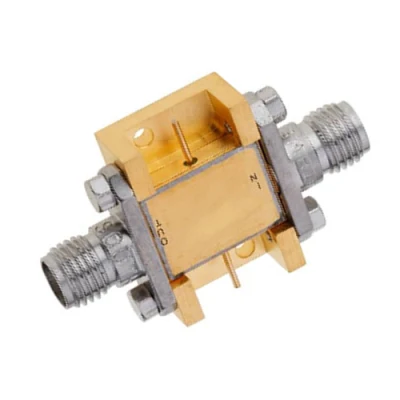

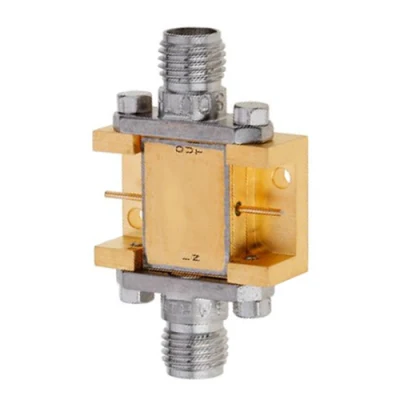

Product Description
Characteristic:
1. Model NO.: SWLA-000430G38
2. Frequency Range:10MHz~43GHz
3. High gain 38dB, low noise figure
4. Outside field application, single power supply or whole power.
Application:
Apply to reception front of broadband electronic countermeasures equipment,millimeter wave communication.
Radar system, 5G communication test, ROF(Rf optical fiber)
Technical Parameters(Testing Conditions :Vcc=+5V)
Environmental Suitability
Absolute Maximum Ratings Application:
Apply to reception front of broadband electronic countermeasures equipment,millimeter wave communication.
Radar system, 5G communication test, ROF(Rf optical fiber)
Technical Parameters(Testing Conditions :Vcc=+5V)
| Specification | Symbol | Parameter Values | Unit | ||
| Min. | Typ. | Max. | |||
| Frequency Range | FL-FH | 10MHz | 43.0 | GHz | |
| Gain | Pin | 38.0 | dB | ||
| In-band gain fluctuation | △P | ±2.5 | dB | ||
| Noise Figure | -- | 4.5 | dB | ||
| Past Output power | 15.0 | dBm | |||
| P1 Output power | - | 13.0 | dBm | ||
| Max Input Power(anti-burnout) | +10dBm | dBm | |||
| Intput VSWR | VSWR | -- | 2.0 | ||
| Working voltage | +5 | +8 | V | ||
| Operating Current | Ic | -- | 220 | mA | |
| RF Connector | 2.92mm Female | ||||
Environmental Suitability
| Working voltage | DC+5V-8V |
| Storage temperature | -40ºC~+85ºC |
| Operating temperature | -20ºC~+70ºC |
| Working voltage | +13V |
| Storage temperature | -65ºC~+125ºC |
| Operating temperature | -40ºC~+85ºC |
1. Input voltage according to recommended operating conditions
2. Connect the input and output interfaces correctly according to the component identifier
3. Note good grounding
4. Prevent electrostatic damage
OUTLINE DRAWING(mm):
Nanjing Shinewave Technology Co., Ltd. is a company specialized in the research and development, production and sales of RF microwave passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.
In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.
In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
