Basic Info.
Model NO.
SW-PA-29883008-56C
Model Number
Sw-PA-29883008-56c
Operating Frequency
2988MHz~3008MHz
Gain
55dB
Input Vswr
1.5
RF Connectors (Input / Output)
SMA- Kfd/ SMA- Kfd
Operating Temp. (Housing Temp.)
-35°c~+55°c
Humidity Range
0-100%
Max RF Input
+5dBm
Weight
≤3kg
Dimensions
230*160*25mm
Transport Package
Standard Packing
Specification
230*160*25mm
Trademark
OEM
Origin
Nanjing, China
Product Description
Description:

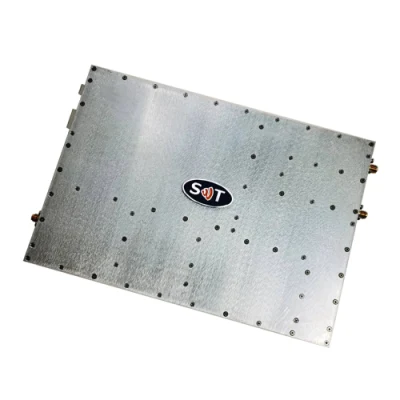

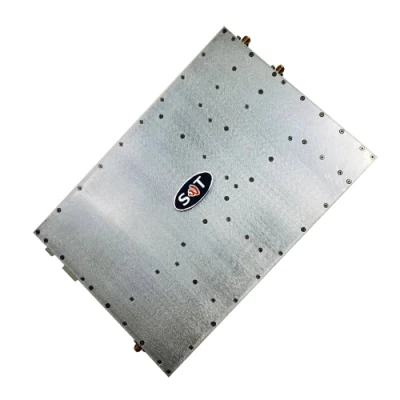

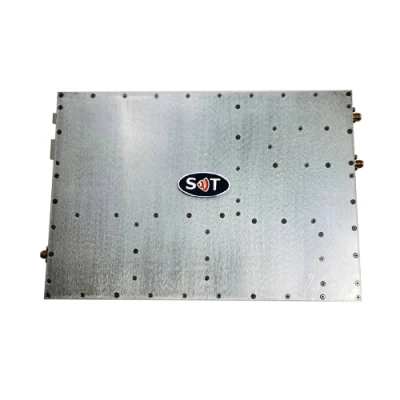

The module is designed for commercial and other applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +25oC, and in a 50Ω system.
OUTLINE DRAWING
The module is designed for commercial and other applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 2988 | 3000 | 3008 | MHz |
| RF INPUT | -2 | dBm | ||
| PSat Power Output | 53 | dBm | ||
| Gain | 55 | dB | ||
| Power Gain Flatness | 1.2 | dB | ||
| Pulse width | 1.5 | 15 | uS | |
| Repetition frequency | 750 | 1 | HZ | |
| Input VSWR | 1.5 | |||
| Operating Voltage | +32;+50 | VDC | ||
| Spurious Signals | -55 | dBc | ||
| Harmonic Signals | -20 | dBc | ||
| Switching Time | 1.0 | 2.0 | uS | |
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (L x W x H) | 230*160*25 | mm |

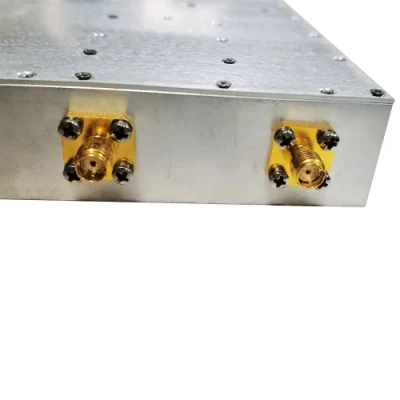

| RF Connectors (Input / Output) | SMA- KFD/ SMA- KFD | -- |

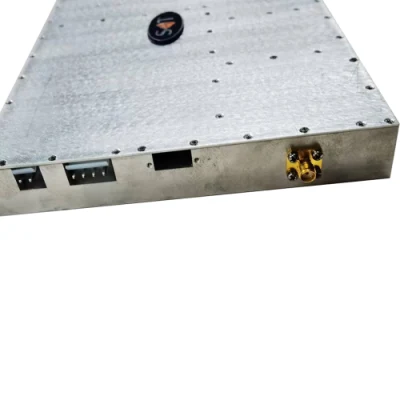

| DC Connector | A3965H-2P A3965H-4P | -- |
| Control Connector | J30J-09 | |
| Cooling | Baseplate Conduction - Optional Heatsink Available | -- |
| Mounting | 3-8 Thru Hole | -- |
| Weight | ≤3 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | -35 | +55 | °C |
| Humidity Range | 0-100 | % | |
| Max RF Input | +5 | dBm | |
| PA Baseplate Shutoff Temperature | + 85 | °C | |
| INPUT/OUTPUT PINS | |||
| AMPLIFIER CONNECTOR TYPE: | J30J-09 | ||
| TRIAD CABLE PART NUMBER: | -- | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| 1 | TTL logic | Amplifier Enable (5V) / Disable (0V) | |
| 2 | TTL logic Ground | N/A | |
| 3 | Forward power monitoring | Analog voltage relative to forward power 0 V to 3.3 V | |
| 4 | Reflected power monitoring | Analog voltage relative to reverse power 0V to 3.3 V | |
| 5 | Temperature Monitoring | 0~+3.3 V | |
| 6 | Temperature Alarm | in case temperature exceeds 100 C shutdown power amplifier and also generate alarm ( 3.3 V on this pin) Otherwise this pin should remain low (0 V) | |
| 7 | Current Monitoring | 0~3.3 V corresponding to consumed current | |
| 8 | VSWR alarm | In case high VSWR (Reflected power >40 dBm) shut down Power amplifier. Also generate alarm on this pin (3.3 V ) otherwise this pin should remain low (0 V) | |
| DC PINS | |||
| AMPLIFIER CONNECTOR TYPE: | A3965H-2P | ||
| TRIAD CABLE PART NUMBER: | -- | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| 1 | +VDC | +21V | |
| 2 | GND | Ground | |
| DC PINS | |||
| AMPLIFIER CONNECTOR TYPE: | A3965H-4P | ||
| TRIAD CABLE PART NUMBER: | -- | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| 1-2 | +VDC | +50V | |
| 3-4 | GND | Ground | |
