6000-18000 MHz Millimeter Wave Amplifiers Psat 40 dBm Lna Low Noise Amplifiers

Introducing our Millimeter Wave Amplifiers Psat 40 dBm Lna Low Noise Amplifiers. Our factory manufactures high-quality amplifiers for 6000-18000 MHz.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SW-PA-600018000-40C
Operating Frequency
6000-18000 MHz
Psat Output Power
40 dBm
Gain
40 dB
Input Vswr
1.5
Spurious Signals
-60 Dbc
Impedance
50 Ohms
Transport Package
Carton
Specification
62.6*60.6*24 mm
Trademark
SWT
Origin
China
Production Capacity
3000 / 3 Months

Product Description

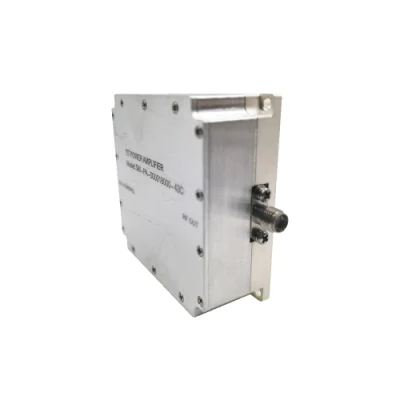

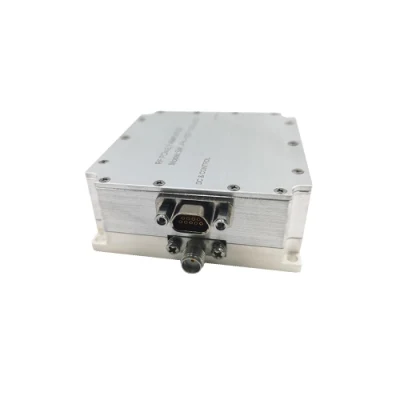

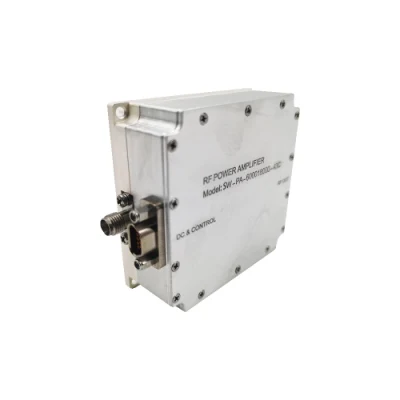

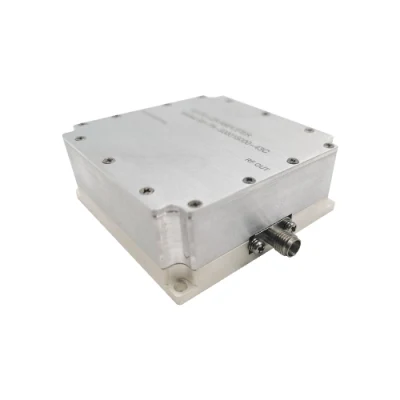

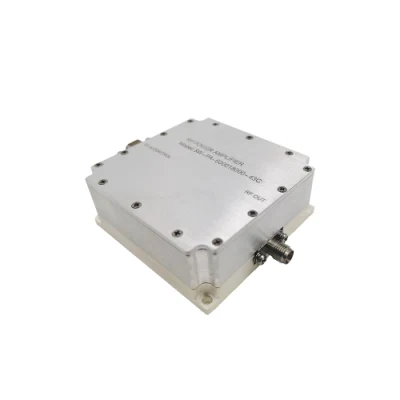

6000-18000 MHz Millimeter Wave Amplifiers PSat 40 dBm LNA Low Noise Amplifiers
6000-18000 MHz Millimeter Wave Amplifiers Psat 40 dBm Lna Low Noise Amplifiers

Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 6000   18000 MHz
RF INPUT   0   dBm
P-sat Power Output   40   dBm
Power Gain   40   dB
Power Gain Flatness   ±2 ±3 dB
Input  VSWR   1.5 2
Spurious Signals   -60   dBc
Harmonic  Signals   -15   dBc
Operating Voltage   28   VDC
In-Out impedance   50

MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 62.6*60.6*24 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector J30J-15ZKP --
Cooling Consider heat dissipation with the system --
Mounting φ2.8-4 Thru Hole --
Weight 1 kg

ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) 0 +50 °C
Humidity Range 0-100 %
PA Baseplate Shutoff Temperature + 85 °C

INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: J30J-15ZKP
TRIAD CABLE PART NUMBER: --
PIN NUMBER LABEL DESCRIPTION
1-3 +VDC +28V
4-6 GND Ground
7 Amp Enable Disable : TTL "Low", Enable: TTL "High" (Low : 0~0.5V, High : 2.5~5V)
8 NC NC
9 NC NC





6000-18000 MHz Millimeter Wave Amplifiers Psat 40 dBm Lna Low Noise Amplifiers

6000-18000 MHz Millimeter Wave Amplifiers Psat 40 dBm Lna Low Noise Amplifiers


6000-18000 MHz Millimeter Wave Amplifiers Psat 40 dBm Lna Low Noise Amplifiers

6000-18000 MHz Millimeter Wave Amplifiers Psat 40 dBm Lna Low Noise Amplifiers


Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave  communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.

In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.


6000-18000 MHz Millimeter Wave Amplifiers Psat 40 dBm Lna Low Noise Amplifiers
6000-18000 MHz Millimeter Wave Amplifiers Psat 40 dBm Lna Low Noise Amplifiers
6000-18000 MHz Millimeter Wave Amplifiers Psat 40 dBm Lna Low Noise Amplifiers
6000-18000 MHz Millimeter Wave Amplifiers Psat 40 dBm Lna Low Noise Amplifiers


Q&A:

Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?

Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to your problems.


Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.



Q4.Shipment Date

Sample 20 business days
≤50 pcs 60  business days
>50 pcs 90 business  days
>200 pcs Negotiate

Q5: Delivery Date of the sample by DHL/FedEx
USA/Canada/Europe/Asia 3-5 days
Middle East/Latin American 5-7 days
African 3-7 days

6000-18000 MHz Millimeter Wave Amplifiers Psat 40 dBm Lna Low Noise Amplifiers

6000-18000 MHz Millimeter Wave Amplifiers Psat 40 dBm Lna Low Noise Amplifiers
