Mimos Mesh WiFi Manufacturer Wireless Mesh Network Communication Radio Tactical Radio Commander Video Network Mesh Radio for Uav

Get reliable and fast wireless mesh network communication with our Mimos Mesh WiFi. As a factory, we manufacture tactical radios, video network mesh radios, and more for UAVs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Company Profile
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
XK-M366
Operation Temperature
-40ºC ~+80ºC
Protection Level
IP66, IP67, IP68, Customized
Weight
1.56kg(10watts×2 Vehicle Radio)
Installation
4 Mounting Holes
Color
Black, Lron Gray, Dark Green Optional
Transport Package
Carton Packing
Specification
18.3x15.4x6.3cm
Trademark
Xingkaitech
Origin
China
Production Capacity
50000PCS/Year

Product Description

Product Description

The broadband mimo mesh networking XK-F366 is a mobile broadband multimedia communication system designed with the new concept of "wireless grid network".

The system with powerful functions and excellent performance; All nodes can realize real-time interaction of multi-channel voice, data, image and other multimedia information by adopting distributed network architecture without central AD hoc network under the condition of non-line-of-sight and fast movement.

Supports any network topology, such as point-to-point, point-to-multipoint, chain-like relay, mesh network and hybrid dynamic topology. The network adopts the same frequency networking and multi-hop relay. Each node device can move quickly and randomly, and the network topology can be changed and updated quickly without affecting the network transmission.

The whole network is convenient to deploy, flexible to use, simple to operate and easy to maintain. It can provide users with reliable, timely, efficient and secure full IP clear voice, broadband data, high-definition video and visual command and scheduling and other multimedia integrated services under complex application scenarios such as fast movement and non-line-of-sight shielding.

The broadband self-organizing network can be widely used in public security, fire protection, civil air defense, electric power, petroleum, mining, transportation, water conservancy, forestry, radio and television, medical, water and air communications and other sectors, providing users with reliable, timely, Rich integrated services such as safe and efficient voice, data, video and visual command and dispatch can meet users'wireless broadband communication needs in normal or emergency situations to the greatest extent, and truly achieve "anytime, anywhere on demand".



Performance:

  • Mesh network (self-forming, self-healing, self-adapting), high-speed throughput

  • Non-visual urban construction jungle multi-path transmission terrain, effective connection

  • High-speed movement of ground, water and air, effective connection

  • Multiple antenna settings, omni directional, high gain orientation or mixing

  • GPS and Multicast Support

Advantages:

  • Increased 4.5 times coverage in densely populated areas

  • The same communication range and transmission volume, reducing transmission power by 10 times

  • Increase the distance by 2 times in the visible limit environment

  • Increase 2-4 times transmission rate

Significant applications in Non Line of Sight /Multi path Fading environments, video/data/voice critical communications:

  • Robot / Unmanned Vehicle, Reconnaissance / Surveillance / Anti-Terrorism / Monitoring

  • Air-to-air & air-to-ground & ground-to-ground, public safety / special operations

  • Urban network, emergency support / normal patrol / traffic management

  • Inside and outside the building, fire fighting / rescue and disaster relief / forest / civil air defense / earthquake

  • TV broadcast wireless audio / video / live broadcast

  • Marine communication / high speed transmission on the opposite side of the ship

  • Low deck wireless network / ship landing

  • Mine / tunnel / basement connection



Product Parameters

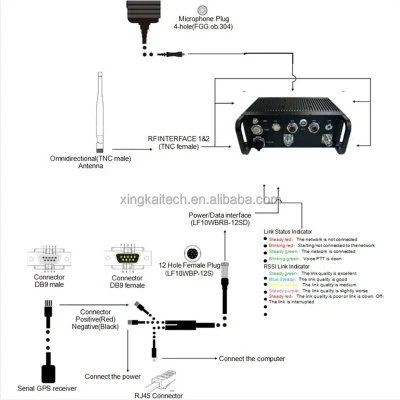

Vehicular Radio Hardware Interfaces

Technical specifications
Waveform Mobile Network MIMO
MIMO Technology Spatial multiplexing,Space-time coding;Diversity,TX /RX beam forming
Receive Sensitivity -103dBm@5MHz BW
Channel Bandwidth 2.5/5/10/20MHz ,40MHz optional
Data Rate 1-100Mbps(20MHz BW)/180Mbps(40MHz BW) Adaptive,QoS
Modulation Mode TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM adaptive
RF Output Power 10 Watts×2 (Airborne/Backpack/Vehicle Rack-mounted/Outdoor/Dual-band Radio)

Single Hop Communication Distance

100-300 KM (visible),
1-30 KM (urban area)
Mode Point-to-point
Point-to-multi point
Multi point-to-multi point, Automatic relay,  Star/Line/Network/Hybrid

Single Hop Delay

Average 10ms(20MHz BW)

Encryption

DES, AES128/256,Chip /TF card encryption customized
Anti-interference Mode Manual spectrum scanning channel selection,
Intelligent frequency channel Selection/Autonomous frequency hopping/Roaming mode optional
Local/Remote Management Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, GPS/Beidou electronic map, temperature/voltage/interference Monitoring, software upgrade
Others The startup time is less than 30 seconds, and the network access/update/switchover time is less than 1 second.There is no limit on the user capacity of a single system and the number of hops in Mesh networks. The total bandwidth loss of multiple hops is less than 30%.Automatic carrier tracking, support over 800 km/h mobile communication
Bands
BAND Frequency range (MHz)
UHF 350-700
L Band 1000-1500
MIIT 336-344/512-582/566-626/606-678/1420-1520/1430-1444
S Band 1800-2500
Lower C Band 4400-5000
Upper C Band 5100-6000
Power

Supply Voltage

14.8-24VDC(10Watts×2 Airborne/Backpack/Vehicle Rack-mounted/Outdoor)
Power consumption Operation 3-6A/Standby [email protected](10Watts×2 Airborne/Backpack/Vehicle Rack-mounted/Outdoor/Dual-band Radio)

Power Selection

Power Supply by Twist-Lock Battery or Main Cable

Batteries

10/8 hours for 10.2/6.8AH (Handheld Radio)
12/8 hours for 28.8/9.6AH (Backpack Radio) polymer lithium battery
Interface
Basic interface RF 2xTNC,1-2xRJ45 Ethernet 10/100BaseT,WiFi AP, 1xRS232-485-422-USB-Bluetooth/1.2-230.4Kbps,DC Input

Push to talk/Auxiliary interface

MIC, SP, PTT, GND/1xRS485,1xUSB2.0 OTG
Network Extension Optional Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite

Video Extension Optional

Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1
Link Status Indicator Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Voice PTT is down
RSSI Link Indicator Steady green - The link quality is excellent Blue Steady - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down
Management Interface/Control Interface Web-based network management/
GUI, API secondary development interface/
SNMP
OEM

Size/Weight

10.1x5.4x1.9cm/123.5g

RF

SMP

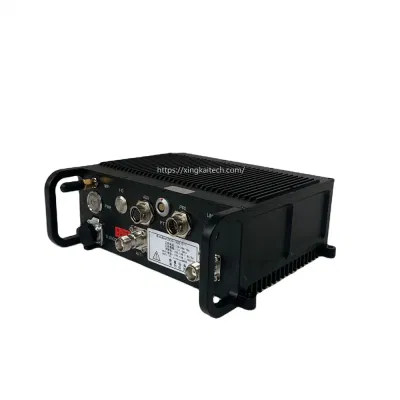

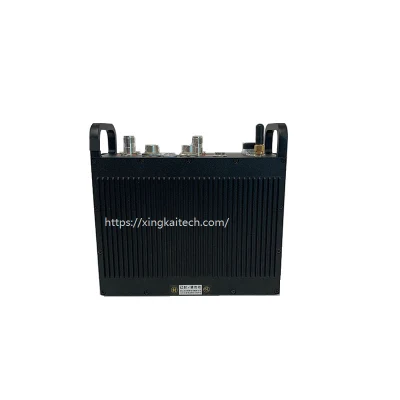

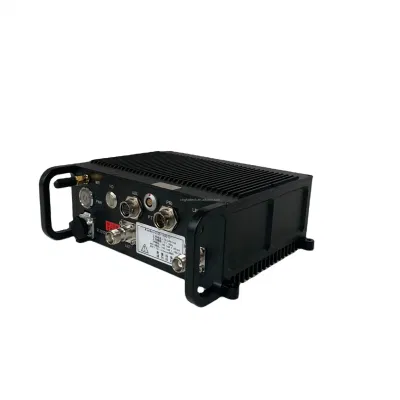

Detailed Photos

Pictures

Mimos Mesh WiFi Manufacturer Wireless Mesh Network Communication Radio Tactical Radio Commander Video Network Mesh Radio for Uav
Mimos Mesh WiFi Manufacturer Wireless Mesh Network Communication Radio Tactical Radio Commander Video Network Mesh Radio for Uav Mimos Mesh WiFi Manufacturer Wireless Mesh Network Communication Radio Tactical Radio Commander Video Network Mesh Radio for Uav

Company Profile

Company Information

Shenzhen Xingkai Technology Co., Ltd. is a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance, and defense industries.

Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery end-to-end communications & advanced networkings.


Our company attaches great importance to the construction of the R&D team, who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.

Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip  encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.
Mimos Mesh WiFi Manufacturer Wireless Mesh Network Communication Radio Tactical Radio Commander Video Network Mesh Radio for Uav


Exhibitions
Mimos Mesh WiFi Manufacturer Wireless Mesh Network Communication Radio Tactical Radio Commander Video Network Mesh Radio for Uav


Testing Instruments
Mimos Mesh WiFi Manufacturer Wireless Mesh Network Communication Radio Tactical Radio Commander Video Network Mesh Radio for Uav

Certifications

Certifications

Mimos Mesh WiFi Manufacturer Wireless Mesh Network Communication Radio Tactical Radio Commander Video Network Mesh Radio for Uav


Cooperation Partners
Mimos Mesh WiFi Manufacturer Wireless Mesh Network Communication Radio Tactical Radio Commander Video Network Mesh Radio for Uav

Packaging & Shipping

Packaing & Delivery

Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong


FAQ

FAQ:

Q: Who we are?
A: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.

Q: Could you support OEM&ODM ?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.

Q. How long is the delivery time ?
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..

Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.

Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface & RF indicators & sensitivity & meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.

Q: What is your usual payment terms for orders?
A: T/T, Western Union
