Basic Info.
Model NO.
BW-MMDS
Gain
24/32/36dB
Connector
F-Type Female
Original Factory
Yes
HD
Yes
Material
Aluminum
Advantage
Waterproof and High Gain
Package
100PCS/Carton
Digital
Yes
Transport Package
Standrad Export Box
Specification
52.5x52.5x29.8cm/33KG/carton
Trademark
BOTE
Origin
Hefei, Anhui, China
HS Code
8529909011
Production Capacity
10000 Pieces Per Month
Product Description

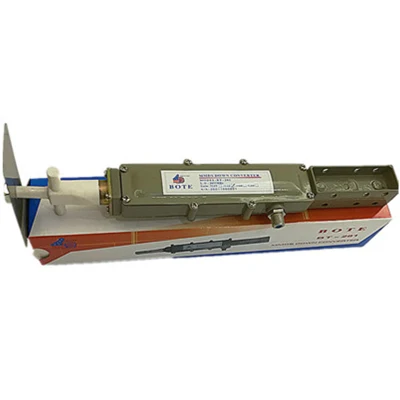

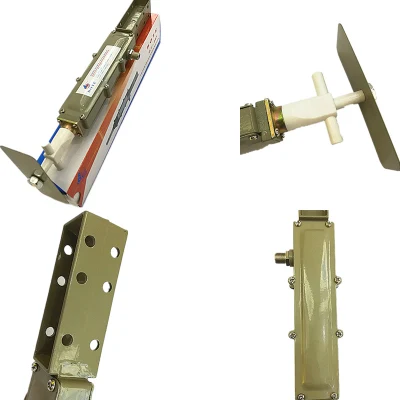

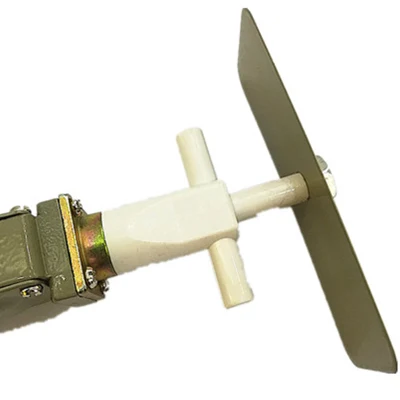

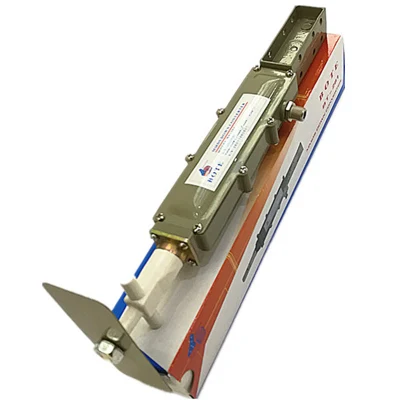

BoWei MMDS Down converter ( Frequency can be Customized based on Customers' requirement)
OEM & ODM available
Specification
| Model Number | BW-MMDS |
| Input Frequency | 2500 - 2700 MHz (1900-2100MHz; 2100-2300MHz; 2700-2900MHz option) |
| Local Frequency | option 1838MHz; 1805MHz; 2033MHz; 2030MHz; 2278MHz; 2388MHz; 480MHz (more than 200 frequencies can be customized) |
| Circuit board | Single side board |
| L.O. Stability | ≤ ±30KHz |
| Noise Figure | 2.5dB@24dB, 1.8dB@32dB, 1.4dB@36dB |
| Conversion Gain | 24dB±1.5dB, 32dB±1.5dB, 36dB±1.5dB |
| Gain Flatness | ≤ 0.2 dB/CHANNEL |
| Image Rejection | ≥ 50dB |
| VSWR | 1.5 : 1 |
| IF Rejection | ≥ 80dB |
| PCS Rejection | ≥ 100dB |
| WCS Rejection | ≥ 50dB |
| 3 order intermodulation | ≤ - 50dB |
| L.O. Leakage Antenna Port | ≤ - 85dB |
| L.O. Leakage IF-Port | ≤ - 50dB |
| L.O. Phase Noise | -80dBc@100Hz offset, -92dBc@1kHz offset, -93dBc@10kHz offset -95dBc@100kHz offset, -120dBc@1MHz offset |
| Output P1dB | +14dBm (typical) |
| Gain Flatness Over Entire Range | ≤ ±1.5dB |
| IF Output Impedance | 75Ω |
| DC Current Consumption | ≤ 200mA |
| DC Input Voltage | 14V-24V |
| Spurious in IF Band | ≤ -100dBm |
| Opearating Temperature | -40ºC to +70ºC |
| Input Type | BT280: Intergrated Dipole Antenna |
| Lightning Protection | Meets IEEE Standard |
| 100% Hermetic | Sealed |
